Rena mach 5 Quick Start Manual

st
1 STEP

Unpack Your MACH 5:

Remove the printer and accessories
from the packaging. Store the packing
material in a safe place.
Set the printer onto a level, stable
surface. Use a carpenter's level to
make any adjustments to the work
table where the MACH 5 will be
operating. Level is very important to the
proper operation of the MACH 5, and
the electronics of the unit will check for
it once powered up. Do not move the
MACH 5 while the power is on.
It is critical that you read and
understand the Operators Guide. This is
brand new technology, and improper
use can result
in damage
to the unit.
Read the
manual.
nd
2 STEP

Install Media Guides:

Locate the side guides and rear media
support guide in the accessory box
(wrapped in foam).
Install the side guides to the hopper
brackets where the mounting screws
are taped in place. The rear media
support guide mounts with the large
rubber thumbscrew on the back plate,
and the media support wedge attaches
to it with a thumbscrew.

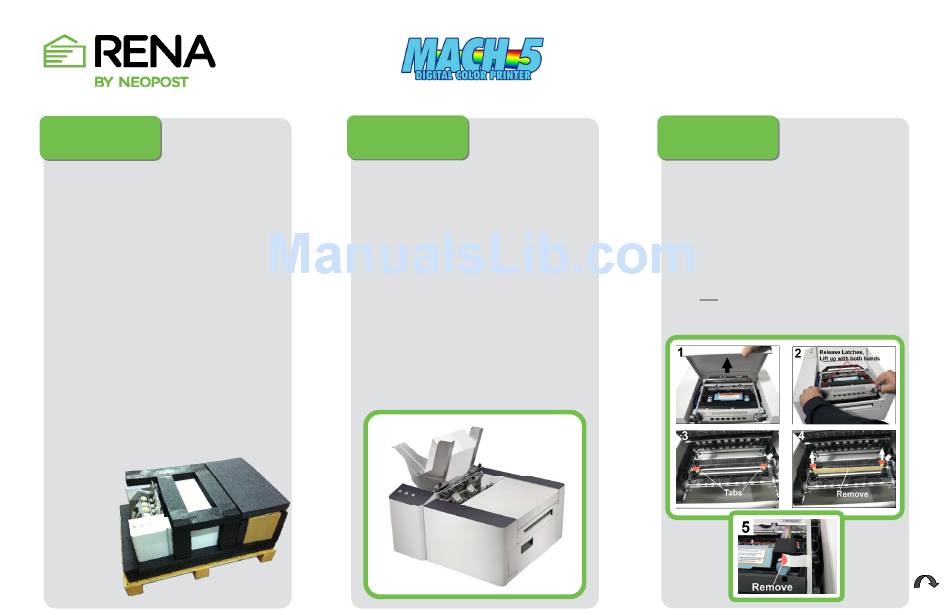

When complete, your machine should
look like this:

QUICK START GUIDE

rd
3 STEP

Remove the Shipping Insert:

The cardboard Shipping Insert secures the
Service Station during printer transport.
Please remove as shown below [1-4]. Save
it with the packaging for future use.
Remove the Tape [5] which secures the
Media Head Guide during transport.
DO NOT PLUG-IN OR POWER-UP THE PRINTER
BEFORE REMOVING THE CARDBOARD "SHIPPING
INSERT"! DAMAGE TO PRINTER MAY RESULT!
REV 12/22/14
WARNING:
OVER
