TEMPERATURE MEASUREMENT

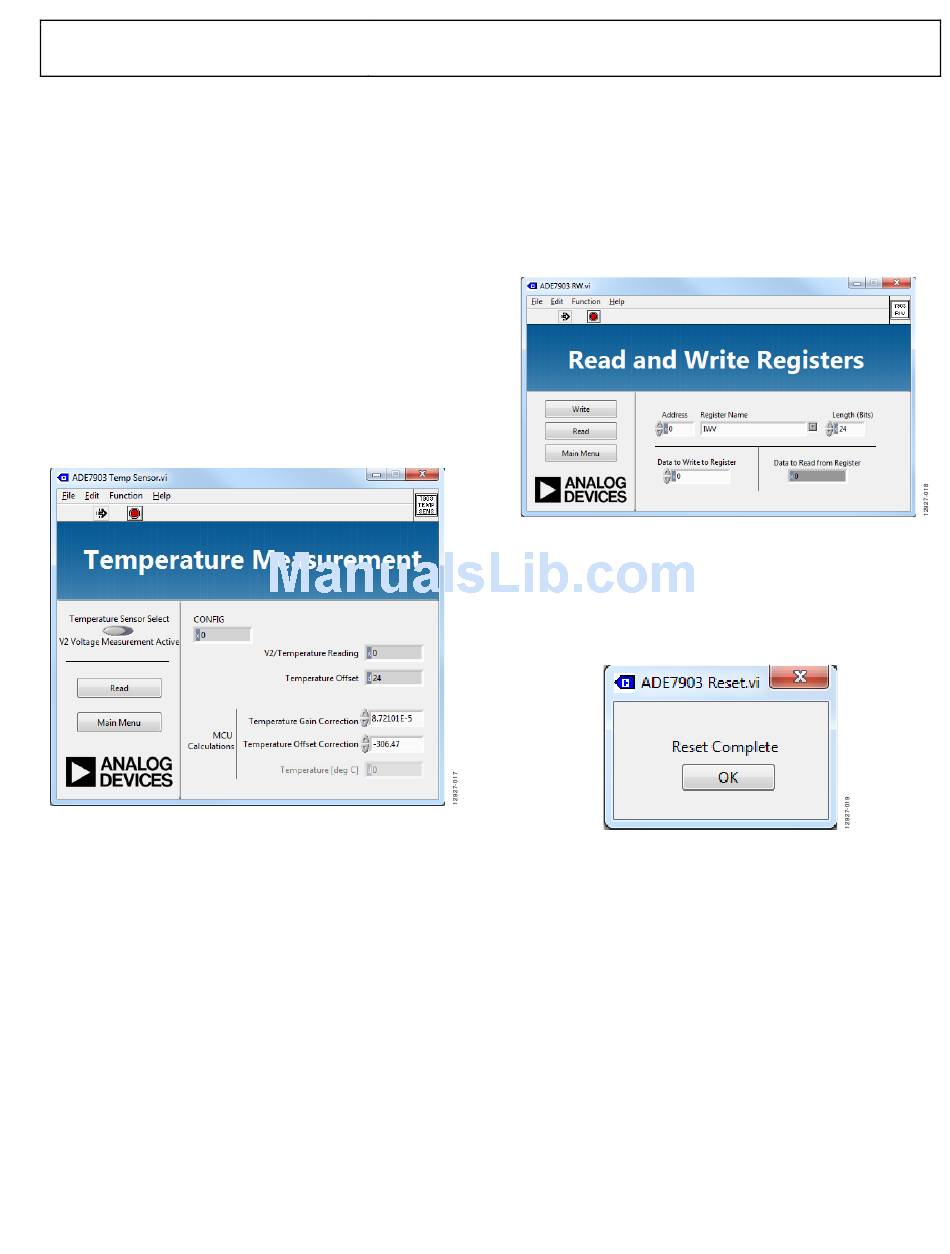

Figure 17 shows the Temperature Measurement window. The
Temperature Sensor Select switch controls whether the
measures the V2 channel inputs or the temperature sensor.
After selecting the temperature sensor, the new value of the
CONFIG register can be seen in the CONFIG indicator box.
The Read button then reads the value of either the temperature
sensor or V2 voltage, depending on the Temperature Sensor
Select switch, and displays it in V2/Temperature Reading. The
Read button also displays the Temperature Offset stored in the
ADE7903; this value cannot be changed.
In the MCU Calculations area, the recommended equation
with Temperature Gain Correction and Temperature Offset
Correction from the data sheet is displayed and used by the
software to acquire a temperature reading in degrees Celsius in
the Temperature [deg C] box. The gain and offset correction
values can be modified if a different equation is desired.
Figure 17. Temperature Measurement

READ AND WRITE REGISTERS

Figure 18 shows the Read and Write Registers window. Every
ADE7903 register of the
by using the boxes on the right-hand side of the window and
then clicking Write or Read.
The registers can be accessed either by Address or by Register
Name, via the Data to Write to Register and Data to Read
from Register fields.

RESET THE ADE7903

Clicking Reset the ADE7903 from the main menu resets the
device, and the window shown in Figure 19 appears to confirm
that the
Main Menu.
Rev. 0 | Page 11 of 12
ADE7903 populating the board can be accessed
Figure 18. Read and Write Registers
ADE7903 has been reset. Click OK to return to the
Figure 19. ADE7903
UG-797
Reset
