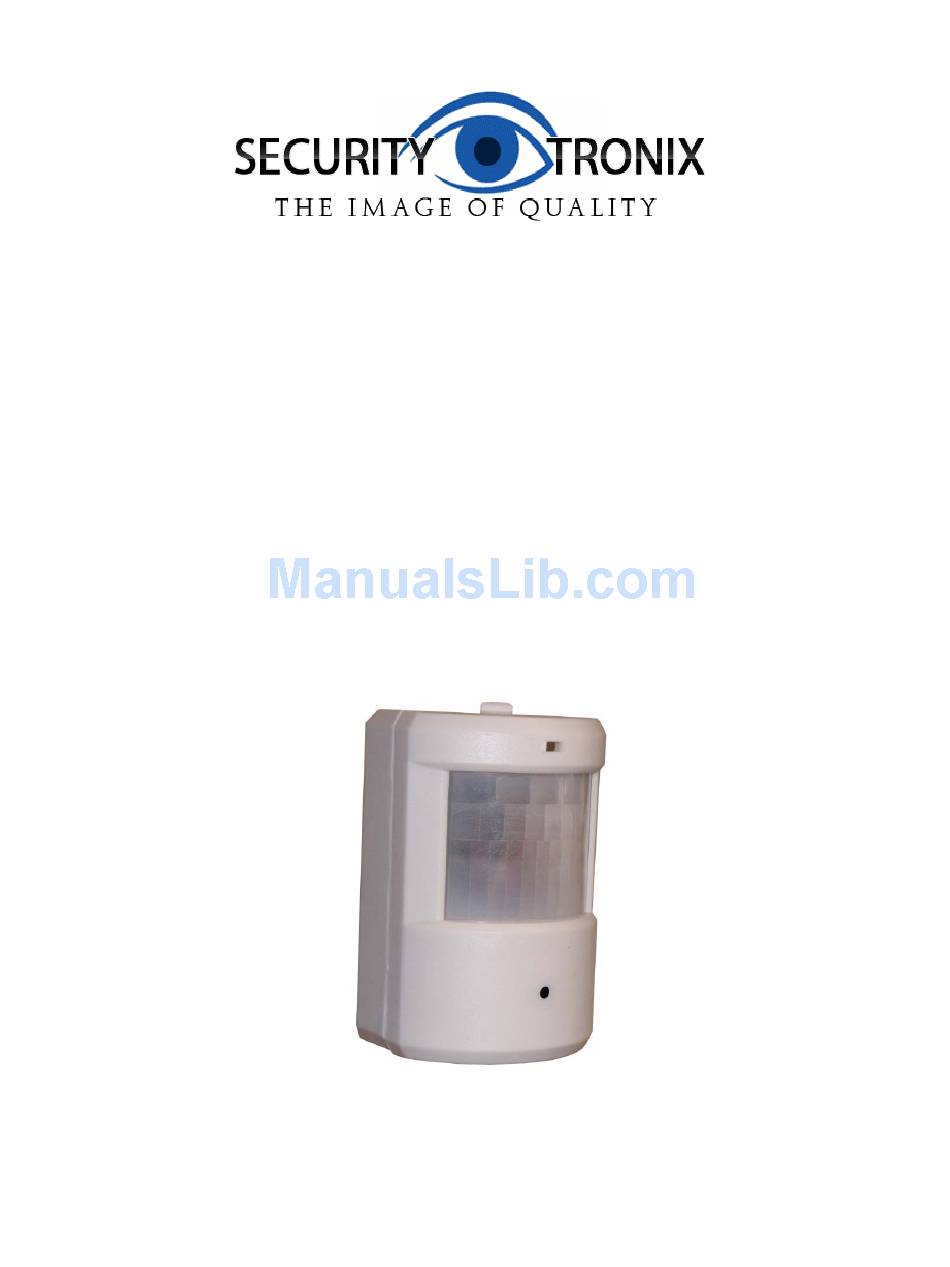

- Page 1 INSTALLATION MANUAL ST-CVTMD520-WPIR-W Covert Motion Detection Color Camera v1.3 8/11/11...
-
Page 2: Package Contents

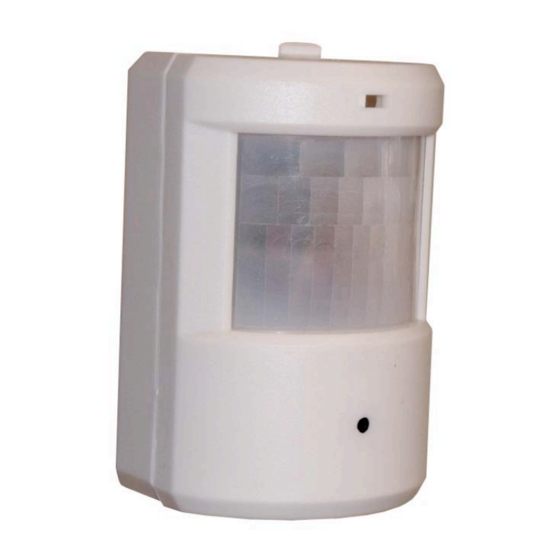

This package contains: One ST-CVTMD520-WPIR-W covert motion detection camera One installation manual Note: The ST-CVTMD520-WPIR-W requires a minimum 12VDC 150mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-CVTMD520-WPIR-W is a covert indoor motion detection camera designed around a Color SONY CCD with 520TVL of resolution. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. MOUNTING and WIRING CONNECTIONS Run coaxial cable for video, 18 gauge wires for power and UTP (unshielded twisted pair) wire for alarm output to the installation location prior to installing the camera. The coax cable must be terminated with a male BNC connector. The power wires are to be terminated with a male 5.5mm power pigtail.
- Page 5 5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
