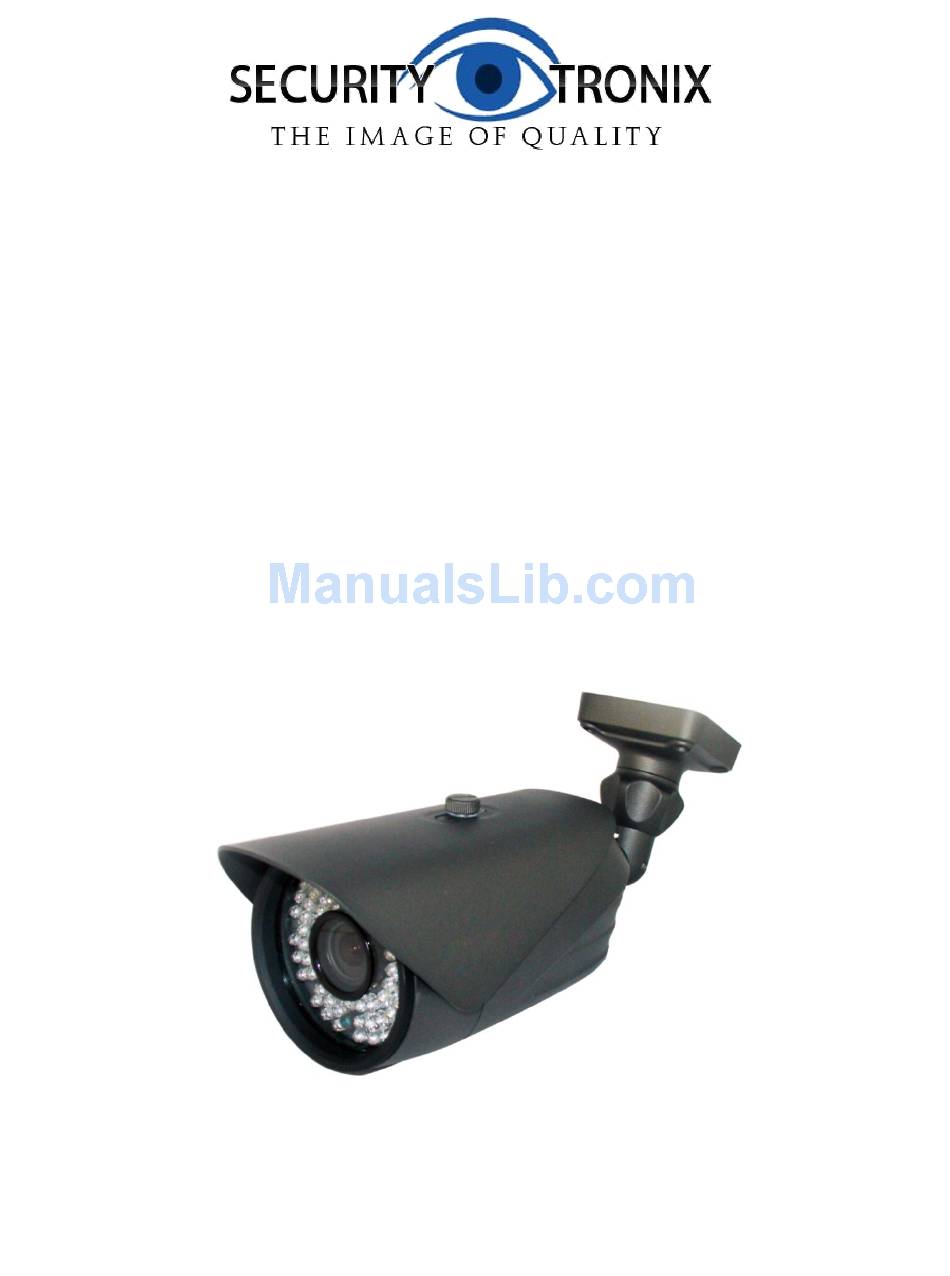

- Page 1 INSTALLATION MANUAL ST-BT1000IR2812-G Varifocal IR Bullet Camera v1.0 8/4/14...
-
Page 2: Package Contents
ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BT1000IR2812-G is a varifocal infrared color bullet camera. The camera uses a 1/3” Color CCD sensor providing 1000TV lines of resolution. The ST-BT1000IR2812-G has a 2.8mm-12mm lens for optimal viewing. The 42 infrared LEDs support low light illumination down to 0 Lux. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power port. b. Connect the camera to the monitor with a 75 coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. Adjust the lens direction according to the required surveillance area and environment.
- Page 5 5. OSD AUTO，1/60,AFLK,1/250,1/350 SHUTTER ,1/500,1/1K,1/2K,1/4K,1/5K, 1/10K,1/100K LENS BRIGHT D 1-100 BRIGHT H 0-100 OFF,ON PUSH LOCK PRESS SET WHITE R GAIN 0-255 MANUAL B GAIN 0-255 ANTI CR D-N DELAY 1-30 N-D DELAY 1-30 AUTO BURST OFF,ON DAY/NTGHT SMART IR OFF,ON COLOR BURST...
- Page 6 6. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
