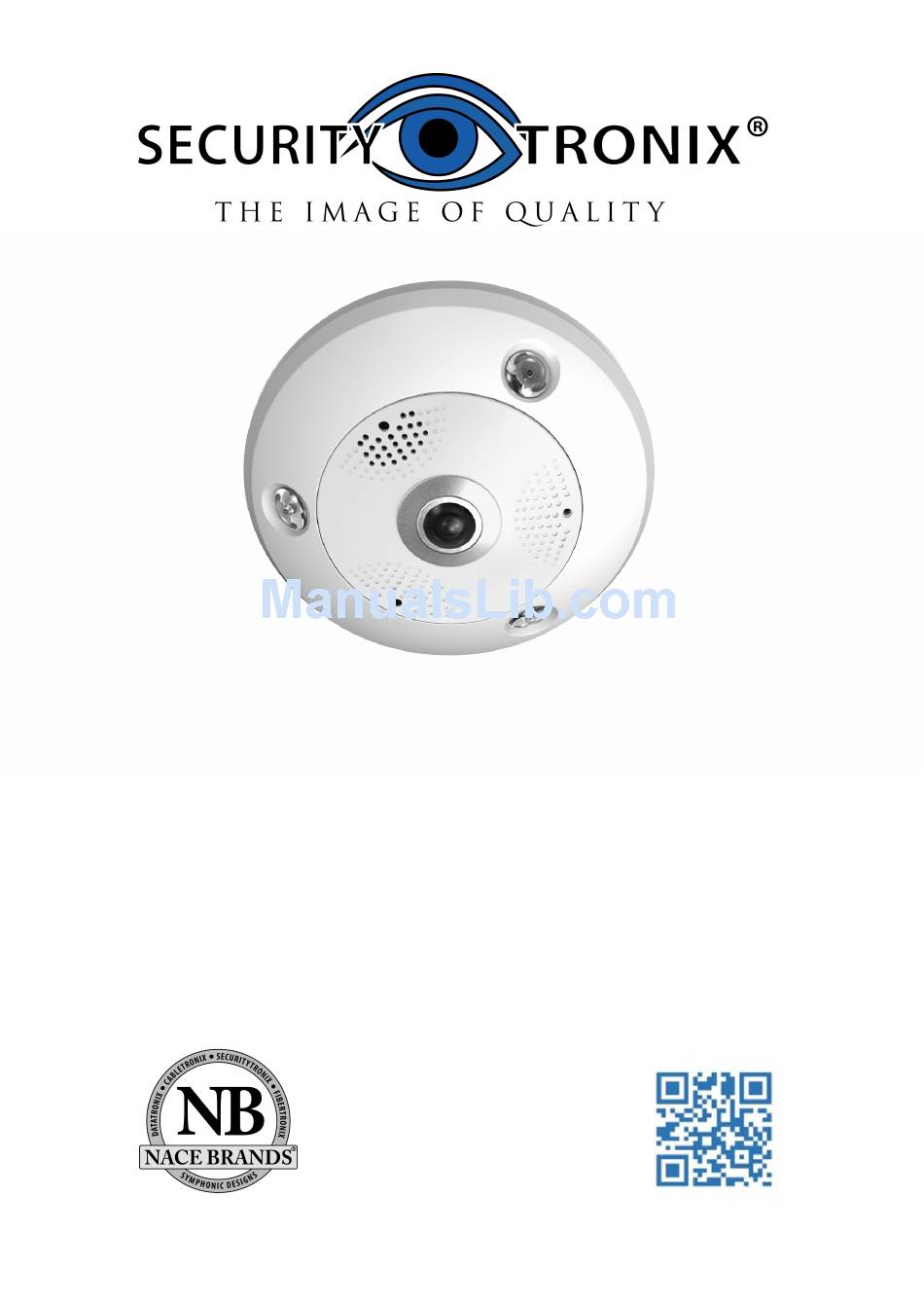

ST-IP6FE QUICK
START GUIDE
www.nacebrands.com
www.securitytronix.com

Advertisement

Table of Contents
loading

Related Manuals for Security Tronix ST-IP6FE

Summary of Contents for Security Tronix ST-IP6FE

  • Page 1 ST-IP6FE QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
  • Page 2 ST-IP6FE QUICKSTART GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual applies to the ST-6FE fisheye network camera. This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.

  • Page 3: Regulatory Information

    ST-IP6FE QUICKSTART GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 ST-IP6FE QUICKSTART GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.

  • Page 5: Safety Instruction

    ST-IP6FE QUICKSTART GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 ST-IP6FE QUICKSTART GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
  • Page 7 ST-IP6FE QUICKSTART GUIDE ● Do not place the camera in extreme heat or cold (the operating temperature shall be-22°F ~+140°F , or -40°F ~ 140°F if the camera model has a heater equipped), dusty or damp locations, and do not expose it to high electromagnetic radiation.

  • Page 8: Table Of Contents

    ST-IP6FE QUICKSTART GUIDE Table of Contents 1 Appearance Description ..............8 1.1 Overview of Fisheye Camera ........... 8 1.2 Disassembling the Camera ..........9 2 Installation ..................11 2.1 Ceiling Mounting ............12 2.2 Wall Mounting with a Slant Mounting Base ....14 2.3 Wall Mounting with a Junction Box .......

  • Page 9: Appearance Description

    ST-IP6FE QUICKSTART GUIDE Appearance Description Overview of Fisheye Camera Figure 1-1 Overview of the Fisheye Camera Figure 1-2 Disassembly of Fisheye Camera...

  • Page 10: Disassembling The Camera

    ST-IP6FE QUICKSTART GUIDE Table 1-1 Description of Overview Description Description Camera Body Ethernet Interface Reset RS-485 Interface Micro SD Card Slot Power Interface Camera Cover Audio In Alarm Interfaces Audio Out Disassembling the Camera Steps: 1. Loosen the lock screw on the camera cover.
  • Page 11 ST-IP6FE QUICKSTART GUIDE Figure 1-3 Move the Oval panel Aside Press RESET about 10s when the camera is powered on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.

  • Page 12: Installation

    ST-IP6FE QUICKSTART GUIDE Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● Make sure all the related equipment is powered off during the installation. ● Check the product specifications regarding installation environment.

  • Page 13: Ceiling Mounting

    ST-IP6FE QUICKSTART GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing poor image quality. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
  • Page 14 ST-IP6FE QUICKSTART GUIDE Figure 2-2 Fix the Screws 3. Connect the corresponding power cable, network cable, audio and alarm cables. 4. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera body to secure the camera with the screws.

  • Page 15: Wall Mounting With A Slant Mounting Base

    ST-IP6FE QUICKSTART GUIDE Figure 2-4 Tighten the Lock Screw on the Camera Cover Wall Mounting with a Slant Mounting Base The wall mounting with a slant mounting base provides a wider surveillance view compared to the wall mounting. And you need to purchase a slant mounting base separately if this mounting method is selected.
  • Page 16 ST-IP6FE QUICKSTART GUIDE 2. Screw the three screws half-deep to the mounting base. Figure 2-6 Hammer the Screws 3. Connect the corresponding power cable, network cable, audio and alarm cables. 4. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera body to secure the camera with the screws.
  • Page 17 ST-IP6FE QUICKSTART GUIDE Figure 2-7 Install the Camera Body and Cover Lock Screw Figure 2-8 Tighten the Lock Screw on the Camera Cover...

  • Page 18: Wall Mounting With A Junction Box

    ST-IP6FE QUICKSTART GUIDE Wall Mounting with a Junction Box You have to purchase a junction box separately if this mounting method is adopted. Steps: 1. Fix the junction box to the wall with screws. Figure 2-9 Fix the Junction Box 2.
  • Page 19 ST-IP6FE QUICKSTART GUIDE 6. Install the camera cover to the camera body, and fix them by tightening the screw on the camera cover. Figure 2-10 Install the Camera Body and Cover Lock Screw Figure 2-11 Tighten the Lock Screw on the Camera Cover...

  • Page 20: Wall Mounting With A Bracket

    ST-IP6FE QUICKSTART GUIDE Wall Mounting with a Bracket You have to purchase the wall bracket separately if this mounting method is selected. 1. Install the bracket to the wall. 2. Install the mounting base to the bracket. 3. Screw the three supplied screws half-deep to the mounting base.
  • Page 21 ST-IP6FE QUICKSTART GUIDE Figure 2-13 Install the Camera Body and Cover Figure 2-14 Tighten the Screw on the Camera Cover...

  • Page 22: Setting The Network Camera Over The Lan

    ST-IP6FE QUICKSTART GUIDE Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP to search and change the IP of the network camera.
  • Page 23 ST-IP6FE QUICKSTART GUIDE  Use client software to list the online devices. Please refer to the user manual client software for detailed information. 2. Change the IP address and subnet mask to the same subnet as of your PC. Refer to the following introductions to set IP address with SADP software: ...
  • Page 24 ST-IP6FE QUICKSTART GUIDE Figure 3-2 Search Online Devices Devices can be searched and displayed in the list for 15 seconds after it goes online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually:...

  • Page 25: Modify Device Information

    ST-IP6FE QUICKSTART GUIDE You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
  • Page 26 ST-IP6FE QUICKSTART GUIDE Figure 3-4 Modify Network Parameters 3. Enter the IP address of the network camera in the address field of the web browser to view the live video.  The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.

  • Page 27: Accessing Via Web Browser

    ST-IP6FE QUICKSTART GUIDE Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 or later / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium 4 ( 3.0 GHz or higher ) RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 28 ST-IP6FE QUICKSTART GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to re-launch the web browser to finish the installation...
  • Page 29 ST-IP6FE QUICKSTART GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
  • Page 30 ST-IP6FE QUICKSTART GUIDE SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser.
