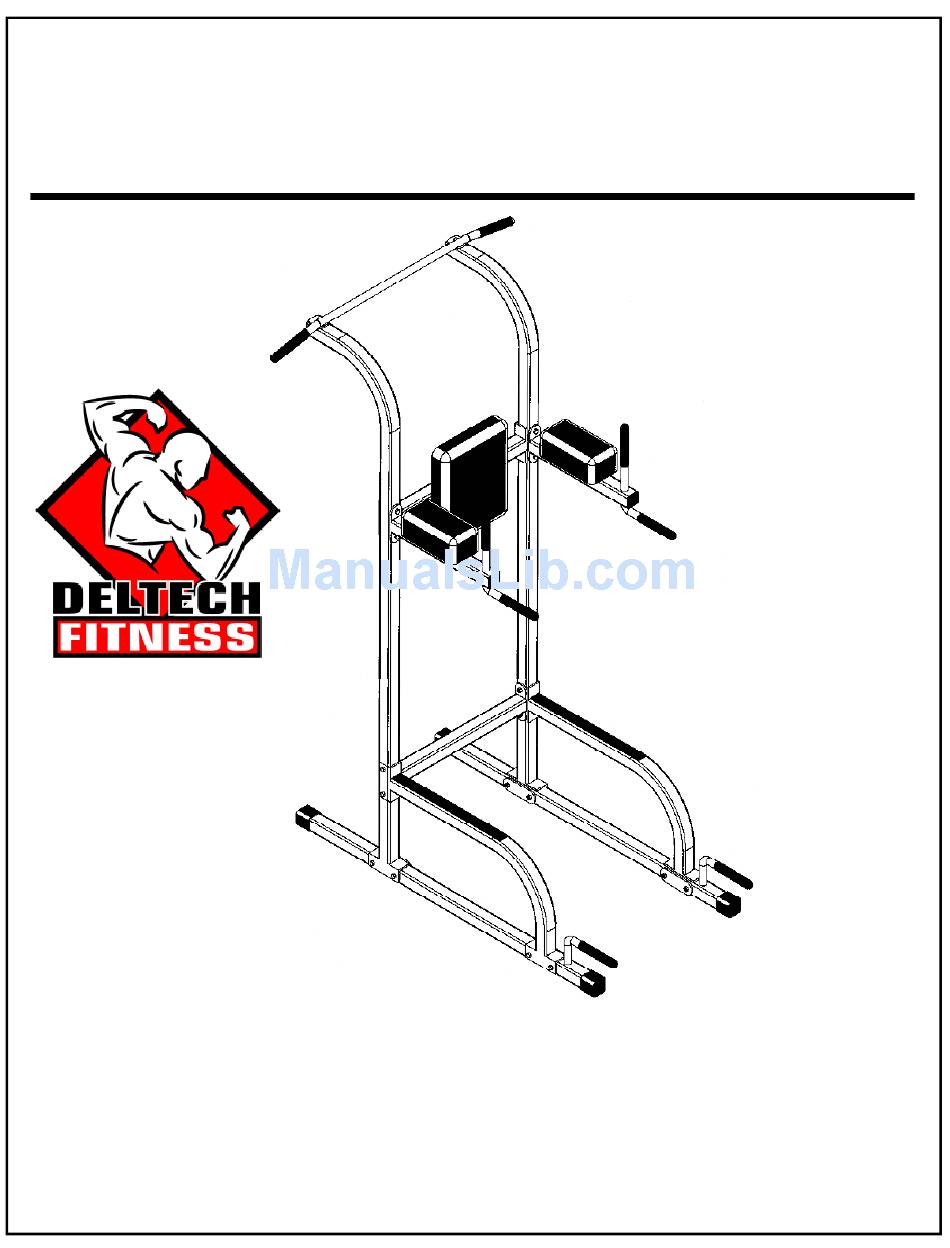

- Page 1 ASSEMBLY INSTRUCTIONS FOR THE DF6800 VERTICAL KNEE RAISE (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
QTY 2 QTY 2 DF6800 CHIN-UP BAR ARM PAD BACK PAD HARDWARE PACK QTY 1 QTY 2 QTY 1 QTY 1 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 QTY 4 QTY 18 M10 LOCKNUT M12 LOCKNUT M10 WASHER QTY 2 QTY 16 QTY 8 SAFETY TREAD QTY 2 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 4: Frame Assembly
FRAME ASSEMBLY ASSEMBLE THE UPRIGHTS (E,F) TO THE FEET (H) USING M12 x 70MM BOLTS (P), MOUNTING PLATES (O), M12 WASHERS (S), AND M12 NUTS (U). INSTALL RUBBER SHOES (L) TO THE ENDS OF THE FEET (H). - Page 5 FRAME ASSEMBLY ASSEMBLE THE LH AND RH BRACE (A,B) AND THE BOTTOM CROSSMEMBER (D)TO THE UPRIGHTS USING M12 x 70MM BOLTS (P), M12 WASHERS (S), AND M12 NUTS (U). BOLT THE OTHER END TO THE FEET USING M12 x 70MM BOLTS (P), MOUNTING PLATES (O), M12 WASHERS (S), AND M12 NUTS (U).
- Page 6 CHIN-UP BAR INSTALLATION INSTALL THE CHIN-UP BAR (I) TO THE UPRIGHTS USING M12 x 70MM BOLTS (P), M12 WASHERS (S), AND M12 NUTS (U).
- Page 7 ARM SUPPORT INSTALLATION ASSEMBLE THE UPPER CROSSMEMBER (C) AND THE ARM SUPPORTS (G) TO THE UPRIGHTS USING M12 x 70MM BOLTS (P), M12 WASHERS (S), AND M12 NUTS (U).
- Page 8 ARM PAD INSTALLATION INSTALL THE ARM PADS (K) TO THE ARM SUPPORT USING M10 x 64MM BOLTS (Q), AND M10 WASHERS (T).
- Page 9 BACK PAD INSTALLATION INSTALL THE BACK PAD (J) TO THE UPPER CROSSMEMBER USING M10 x 25MM BOLTS (R), AND M10 WASHERS (T).
- Page 10 TREAD INSTALLATION REMOVE THE BACKING FROM THE SAFETY TREADS (W) AND INSTALL ON THE TOP OF THE LH & RH BRACES.
-
Page 11: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU. - Page 12 T-SHIRT ORDER FORM DELTECH FITNESS T - SHIRT SIZES AVAILABLE ARE M-XXL. THE COLOR OF THE SHIRTS ARE WHITE. RED AND BLACK LOGO. ONLY $12.99 DELTECH FITNESS MUSCLE SHIRT SIZES AVAILABLE M-XXL THE COLOR AVAILABLE IS BLACK. RED AND WHITE LOGO.
