CHAPTER 2
SolaWash 19 LED Setup and Configuration
Mounting the Fixture Upright
CAUTION!
Do not mount the fixture upright without the four rubber feet attached.
To mount the fixture upright, place the fixture on a sturdy, stable non-flammable surface that will
support more than the 15.5 kg (34.2 lb) weight of the SolaWash 19 LED fixture. If the surface is
above floor height, use safety cables to secure the fixture to the surface.

Truss Mounting

When mounting the fixture on a truss or another type of support:
• Verify the truss or support will handle the combined weight of all the devices on the truss.
Each SolaWash 19 LED fixture weighs 15.5 kg (34.2 lb).
• Always mount a SolaWash 19 LED fixture using the mounting bracket assembly that shipped
with your fixture and a safety cable attached to the fixture's base.
WARNING!
Before mounting, disconnect power to the fixture.
CAUTION!
Only experienced lighting personnel should attempt to hang a lighting fixture
to an appropriate theatrical truss.
WARNING!
In all cases a safety cable should also be fixed between the safety cable
mounting holes located at the bottom of the fixture base housing and the truss.
Failure to use a safety cable could result in injury or death. High End Systems
supplies the proper safety cables and may be contacted for replacements if
necessary. For more information go to: www.highend.com/trusshang

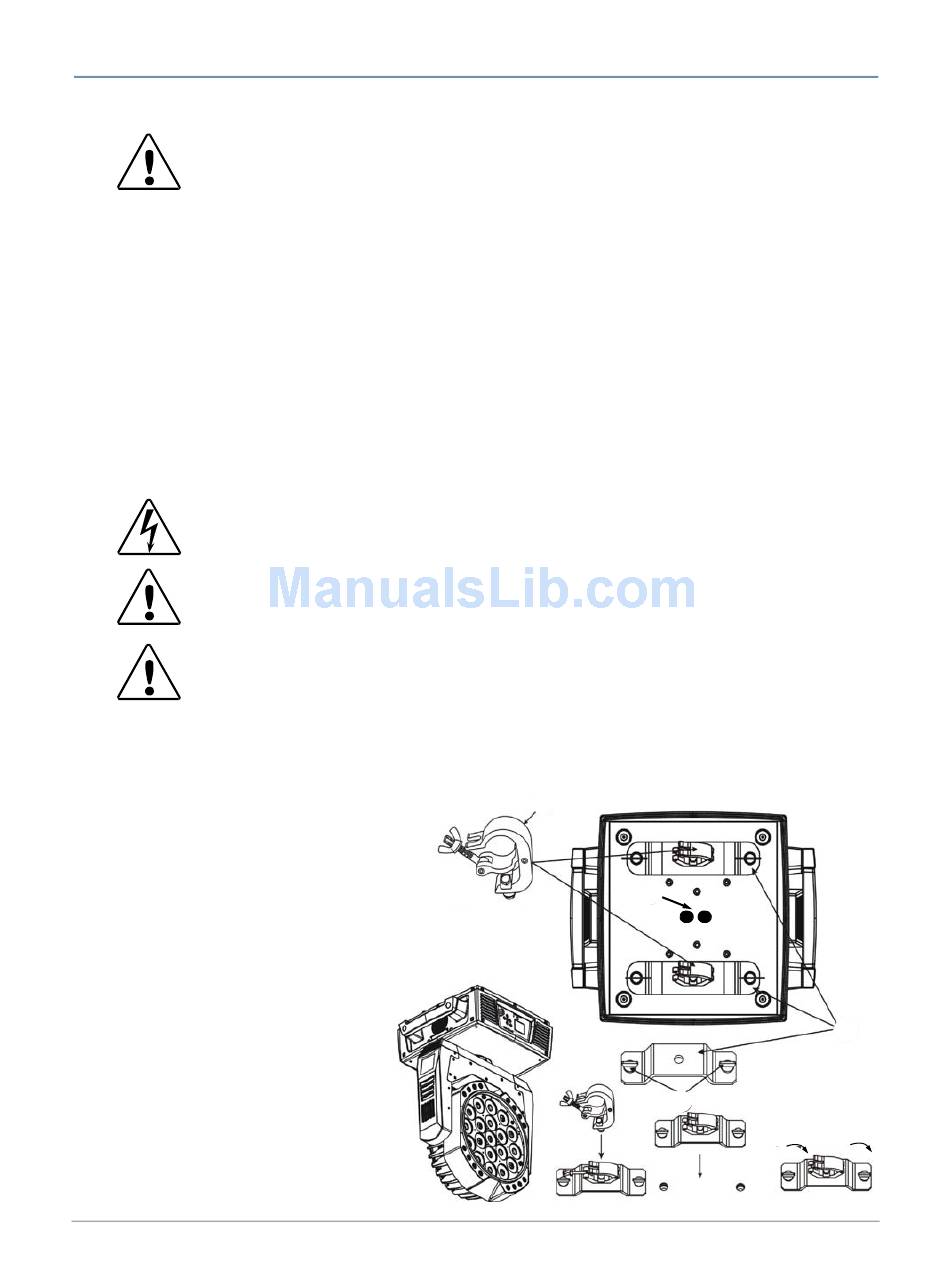

To mount a SolaWash 19 LED fixture
on a standard truss:
1. Fix the clamp (A) on the bracket
by tightening the M12 screw on
the bracket to the hole in the
center of the bracket.
2. Insert the quick-lock fasteners (B)
of the first Omega holder (C) into
the respective holes on the bottom
of the fixture. Tighten the quick-
lock fasteners fully clockwise.
3. Install the second Omega holder.
4. Secure the fixture to the truss
with a safety cable at attach point
(D).
10
A
D
4
B
SolaWash 19 LED User Manual
C
3
/ turn
4
