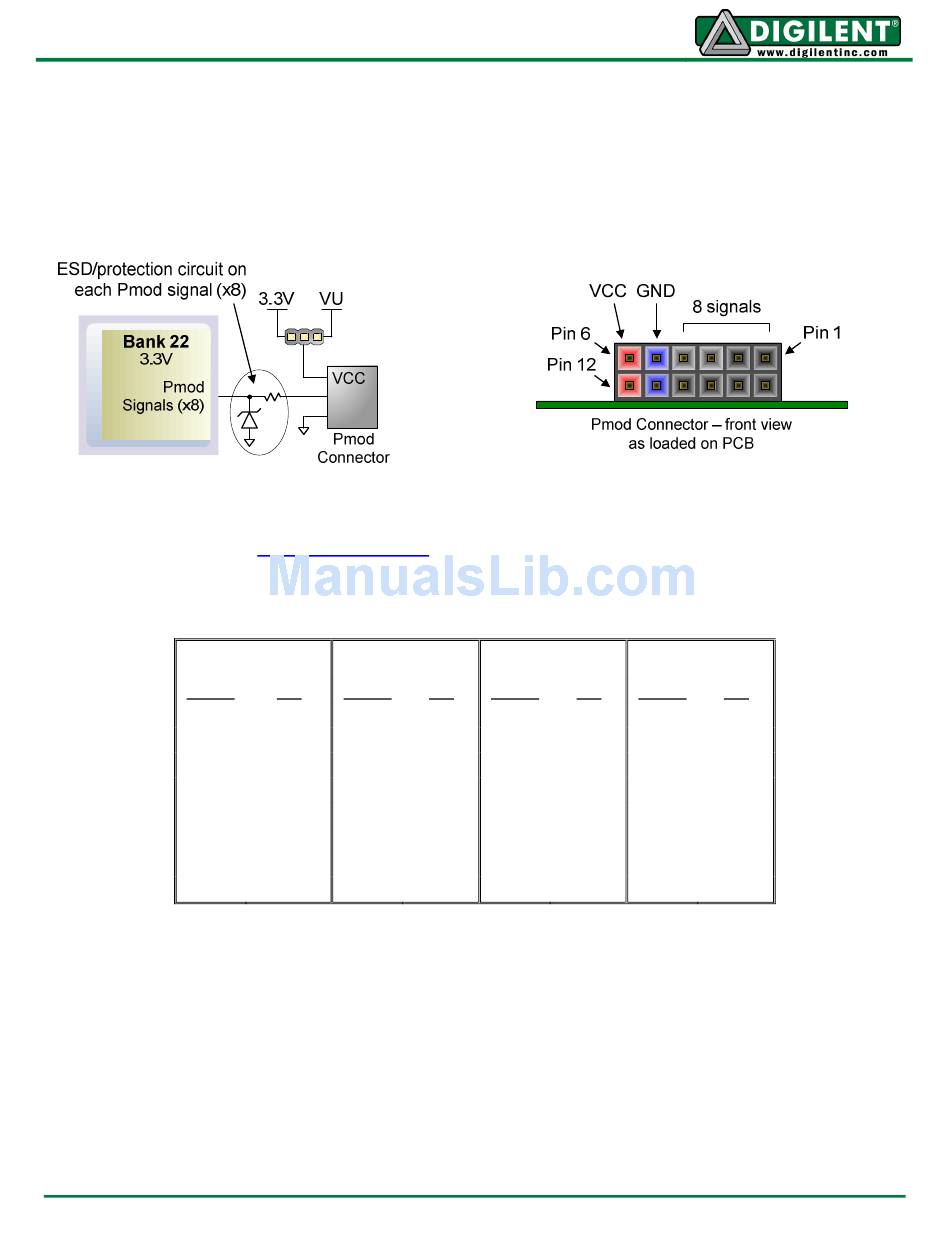

Pmods use 2x6 right-angle, 100-mil connectors that mate with standard 2x6 pin headers available
from a variety of catalog distributors. Each 12-pin Pmod connector provides two VCC signals (pins 6
and 12), two Ground signals (pins 5 and 11), and eight logic signals. VCC and Ground pins can
deliver up to 1A of current, and a jumper block is available for each connector to choose the VCC
voltage: regulated 3.3V or the unregulated board input voltage (VU). Pmod data signals are not
matched pairs, and they are routed using best-available tracks without impedance control or delay
matching.
Digilent produces a large collection of accessory boards that can attach to the Pmod and VHDC
expansion connectors to add ready-made functions like A/D's, D/A's, motor drivers, sensors, cameras
and other functions. See
Pmod A
Signal
JA1
JA2
JA3
JA4
JA7
JA8
JA9
JA10

System Monitor

The Genesys board supports the dedicated analog inputs (VP and VN pins on J13) to the Virtex 5
FPGA System Monitor block. The PCB layout for the VP and VN pins is designed using differential
pairs and anti-alias filtering in close proximity to the FPGA as recommended in the Virtex 5 FPGA
System Monitor User Guide. The Virtex 5 FPGA System Monitor function is built around a 10-bit, 200-
kSPS Analog-to-Digital Converter (ADC). The System Monitor is fully functional on power up, and
measurement data can be accessed via the JTAG port pre-configuration. The Xilinx ChipScope™ Pro
tool provides access to the System Monitor over the JTAG port. The System Monitor control logic
implements some common monitoring features. For example, an automatic channel sequencer allows
www.digilentinc.com
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners
www.digilentinc.com for more information.
Pmod Connector Pinouts
Pmod B
Pin Signal Pin
AD11 JB1 AE9
AD9 JB2 AC8
AM13 JB3 AB10
AM12 JB4 AC9
AD10 JB7 AF8
AE8 JB8 AB8
AF10 JB9 AA10
AJ11 JB10 AA9
Pmod C Pmod D
Signal Pin Signal
JC1 AL11 JD1
JC2 AJ10 JD2
JC3 AK9 JD3
JC4 AF9 JD4
JC7 AK11 JD7
JC8 AC10 JD8
JC9 AJ9 JD9
JC10 AA8 JD10
Pin
AN14
AN13
AP12
AL10
AP14
AN12
AM11
AK8
