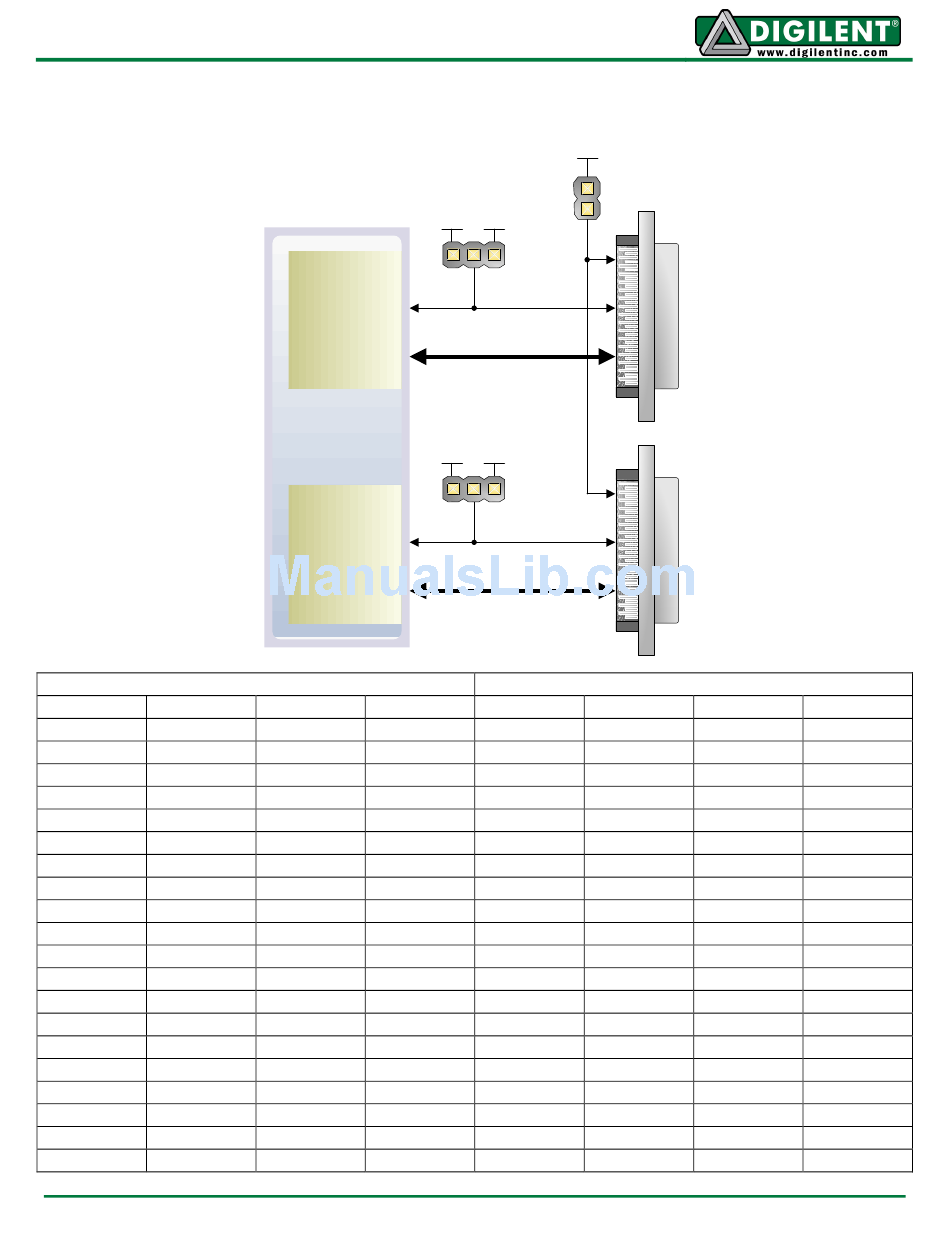

connector VCC may be set to 3.3V, 2.5V, left unconnected or driven from an external source using
jumpers JP11 (J1) and JP12 (J2).
VHDC Connector J1
Name Pin
IO1-P B32
IO2-P C32
IO3-P B33
IO4-P E32
IO5-P C34
IO6-P G32
IO7-P F33
IO8-P J32
IO9-P G33
IO10-P K33
IO11-P H34
IO12-P L34
IO13-P L33
IO14-P N33
IO15-P P32
IO16-P P34
IO17-P R33
IO18-P T33
IO19-P U32
IO20-P U33
