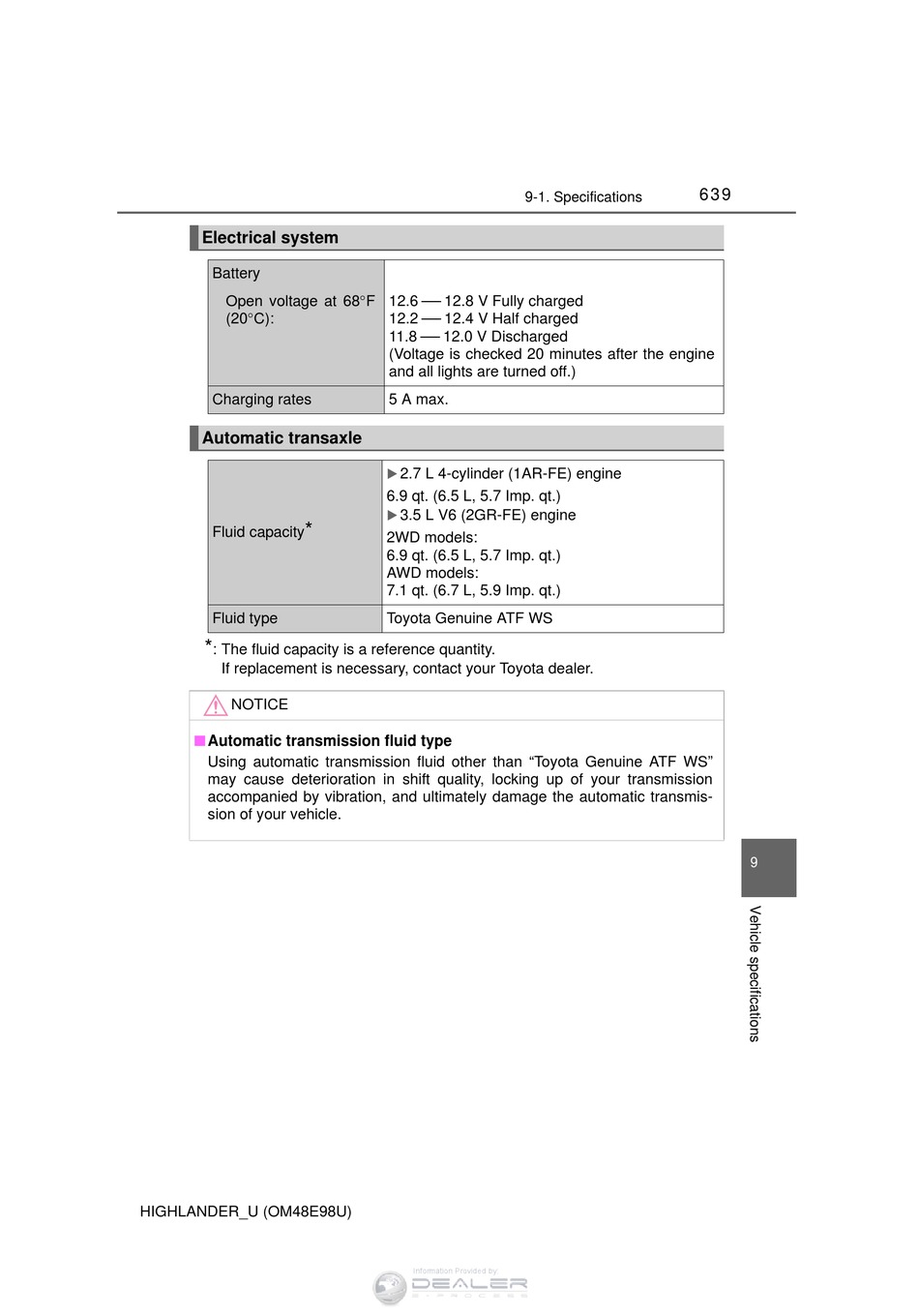

Toyota highlander 2015 Instruction Manual page 639

Electrical system
Battery
Open voltage at 68F
(20C):
Charging rates
Automatic transaxle
*
Fluid capacity
Fluid type
*
: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Toyota dealer.
NOTICE
■
Automatic transmission fluid type
Using automatic transmission fluid other than "Toyota Genuine ATF WS"
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic transmis-
sion of your vehicle.
HIGHLANDER_U (OM48E98U)
9-1. Specifications

12.6 12.8 V Fully charged

12.2 12.4 V Half charged

11.8 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
5 A max.

2.7 L 4-cylinder (1AR-FE) engine
6.9 qt. (6.5 L, 5.7 Imp. qt.)

3.5 L V6 (2GR-FE) engine
2WD models:
6.9 qt. (6.5 L, 5.7 Imp. qt.)
AWD models:
7.1 qt. (6.7 L, 5.9 Imp. qt.)
Toyota Genuine ATF WS
I n f o r ma t i o n P r o v i d e d b y :
639
9
