5

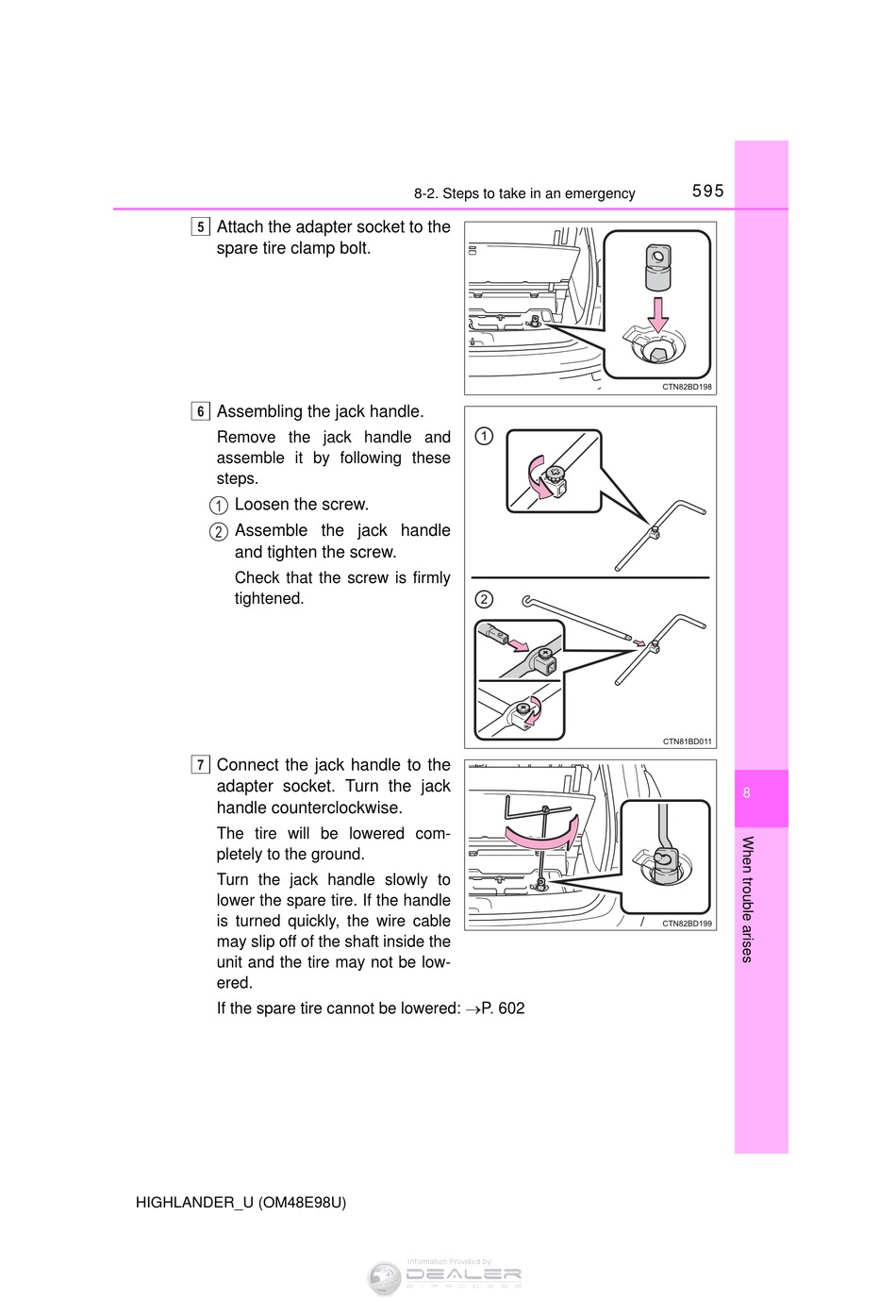

Attach the adapter socket to the
spare tire clamp bolt.
6
Assembling the jack handle.
Remove the jack handle and
assemble it by following these
steps.
1
Loosen the screw.
2
Assemble the jack handle
and tighten the screw.
Check that the screw is firmly
tightened.
7
Connect the jack handle to the
adapter socket. Turn the jack
handle counterclockwise.
The tire will be lowered com-
pletely to the ground.
Turn the jack handle slowly to
lower the spare tire. If the handle
is turned quickly, the wire cable
may slip off of the shaft inside the
unit and the tire may not be low-
ered.
If the spare tire cannot be lowered: P. 602
HIGHLANDER_U (OM48E98U)
8-2. Steps to take in an emergency
