- Page 1 KEEX-1850 Series Standard / Extended Temperature Single Board Computer ® in Intel Embedded Compact Extended Form Factor ® with Intel Braswell SoC Processor User’s Guide KEEX-1850 Series User’s Manual...
- Page 2 © 2015 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Memory Module Installation............... 36 Chapter 4 AMI BIOS Setup ..................38 Overview ....................38 Main Menu....................39 Advanced Menu..................40 Security Menu.................... 53 Boot Menu ....................54 Save & Exit Menu ..................55 Chapter 5 Driver Installation .................. 56 KEEX-1850 Series User’s Manual... - Page 4 Content Appendix A DIO (Digital I/O) Sample Code............57 Appendix B WatchDog Timer Sample Code............. 60 KEEX-1850 Series User’s Manual...
-
Page 5: Figures
Figure 4 Jumper and Connector Locations ..........21 Figure 5 Rear Panel IO ................33 Figure 6 Align the SO-DIMM Memory Module with the onboard socket ..36 Figure 7 Press down on the SO-DIMM Memory Module to lock it in place 37 KEEX-1850 Series User’s Manual... -
Page 6: Tables
Tables Tables Table 1 KEEX-1850 Series Specification ........... 18 Table 2 Jumper List..................22 Table 3 JP1 RTC Reset Selection.............. 22 Table 4 JP2 Backlight Enable Selection ............ 22 Table 5 JP3 MPCIE Activity LED Indication..........22 Table 6 JP4 Panel & Backlight Power Selection ........23 Table 7 JP6 USB Power Selection ............. - Page 7 Table 56 Advanced Menu – DIO Configuration .......... 50 Table 57 Advanced Menu – H/W Monitor........... 51 Table 58 Power Manu ................52 Table 59 Security Menu ................53 Table 60 Boot Menu ................... 54 Table 61 Save & Exit Menu ................ 55 KEEX-1850 Series User’s Manual...
-
Page 8: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. WARNING High voltages are present inside the chassis when the unit’s power cord is... -
Page 9: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. - Page 10 Handle components and boards with care. Don’t touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields. KEEX-1850 Series User’s Manual...
-
Page 11: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 12: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 13: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 14 Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. KEEX-1850 Series User’s Manual...
- Page 15 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. KEEX-1850 Series User’s Manual...
-
Page 16: Chapter 1 Introduction

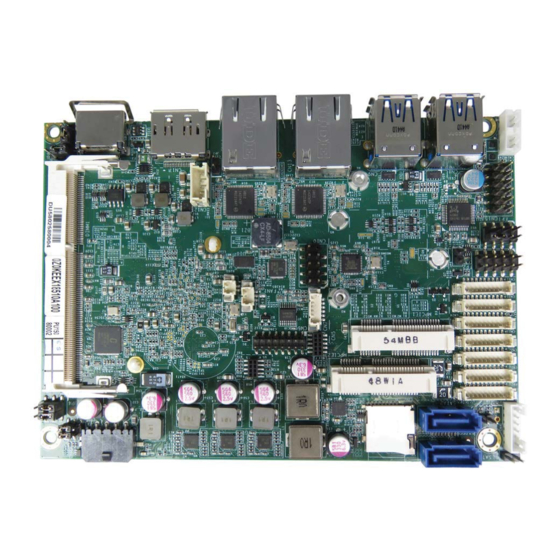

Chapter 1 Chapter 1 Introduction Overview The KEEX-1850 Series is an industrial embedded single board computer (SBC) ® based on Intel Braswell SoC Processor with Intel® HD Graphics integrated. Featured are 1x DDR3L SO-DIMM socket, 1x DP, 1x HDMI, 1x LVDS / 1x VGA, 1x/2x SATA, 1x/0x mSATA, 1x uSD, 2x GbE, 4x USB3.0, 2x USB2.0, 6x COM, 1x... -
Page 17: Product Specifications
Programmable WDT to generate System reset event Watchdog SoC integrated RTC Real Time Clock 1x lockable Wafer for +12VDC Power input Power ATX/AT Mode Support KEEX-1850/1851/1853/1854/1855/1856: Operation Temp. Operation Temp.: 0ºC ~ 60ºC / 32ºF ~ 140ºF KEEX-1850 Series User’s Manual... -
Page 18: System Block Diagram
Operation Temp.: -20ºC ~ 70ºC / -4ºF ~ 158ºF Storage Temp.: -40ºC ~ 85ºC / -40ºF ~ 185ºF Humidity: 0% ~ 95% CE, FCC Class A Certifications Table 1 KEEX-1850 Series Specification System Block Diagram Figure 1 Block Diagram KEEX-1850 Series User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Figure 2 Mechanical Dimensions KEEX-1850 Series User’s Manual... -
Page 20: Chapter 2 Hardware Settings
No.1. To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the pins and move it to the desired position. KEEX-1850 Series User’s Manual... -
Page 21: Jumper Settings And Pin Definitions
Chapter 2 Jumper Settings and Pin Definitions For jumper and connector locations, please refer to the diagrams below. Figure 4 Jumper and Connector Locations KEEX-1850 Series User’s Manual... -
Page 22: Jumper Settings
Backlight Enable High Active Backlight Enable Low Active SMD 6P 2R MALE TYPE 180D P-2.0mm[PINREX 222-97-03GBB1] Table 5 JP3 MPCIE Activity LED Indication Jumper Status LED+ LED- DIP 2P 1R MALE STRAIGHT TYPE Pitch:2.54mm [YIMTEX 3321*02SAGR(6T)] KEEX-1850 Series User’s Manual... -
Page 23: Table 6 Jp4 Panel & Backlight Power Selection
DIP 3P 1R MALE STRAIGHT TYPE Pitch:2.54mm [YIMTEX 3321*03SAGR(6T)] Table 10 JP9 AT / ATX Power Mode Selection Jumper Status 1-2 Short ATX Mode 2-3 Short AT Mode DIP 3P 1R MALE STRAIGHT TYPE Pitch:2.54mm [YIMTEX 3321*03SAGR(6T)] KEEX-1850 Series User’s Manual... -
Page 24: Internal Connector Pin Assignment
FAN1 DC5V FAN Wafer Front Panel 1 Pin Header Front Panel 2 Pin Header MPCIE1 Mini-PCI Express v1.2 Socket MPCIE2 Mini-PCI Express v1.2 Socket SATA1 Serial ATA Port 0 Connector SATA2 Serial ATA Port 1 Connector KEEX-1850 Series User’s Manual... -
Page 25: Table 12 Bat1 Cr2032 Battery Power Input Wafer
ATX POWER SMD 4P 1R MALE 90° Pitch:3.0mm Hollow PIN [PINREX 733-97-04TBR1] Table 14 CN1 DC12V Power Input Wafer Signal Name DAT2 CD/DAT3 DAT0 DAT1 SMT 8P Micro-SD (T-Flash) Memory Card Connector, LCP, Black, Au 10u” Plated [HOMETOM SD08F36BDA005] KEEX-1850 Series User’s Manual... -
Page 26: Table 15 Cn3 Secondary 18/24-Bit, 2-Channel Lvds Panel Connector
Signal Name MSCLK MSDAT* KBDAT KBCLK DIP 6P 180° Pitch=2.0mm WAFER [YIMTEX 503PW1*06ST-1R] Table 17 CN6 VGA Header Signal Signal DDC_DATA HSYNC VSYNC DDC_CLK SMD 16P 2R MALE Straight Type Pitch:2.0mm, Gold Flash, Black Insulator [Pinrex 222-97-08GBB1] KEEX-1850 Series User’s Manual... -
Page 27: Table 18 Cn7 Sim Interface Wafer For Mpcie1
Signal Name SMD 10P 1R 180D MALE P=1.25mm, Tin Plated, NY46, White Insulator [Pinrex 712-73-10TWB0] Table 21 CN12 HDD Power Output Wafer Signal +12V SMD MALE 4P 1R 180D P-2.0mm, Tin Plated, White Insulator [PINREX 721-93-04TWE9] KEEX-1850 Series User’s Manual... -
Page 28: Table 22 Cn15 Audio Input / Output Pin Header
DIP 2P 180° Pitch=2.0mm WAFER [YIMTEX 503PW1*02STR & 503PW1*02ST-1R] Table 25 CN20 COM1 RS-232/422/485 Port Wafer Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ SMD 10P 1R 180D MALE P=1.25mm, Tin Plated, NY46, White Insulator [Pinrex 712-73-10TWB0] KEEX-1850 Series User’s Manual... -
Page 29: Table 26 Cn21 Com2 Rs-232/422/485 Port Wafer
+5V / +12V ** +5V / +12V ** BL_EN*** SMD 7P 90D P-1.25mm WAFER [YIMTEX 501MW1X07MTR-1R] * BL_ADJ can be setting in BIOS setup. ** Backlight Power can be selected by JP4. *** BL_EN can be selected by JP2. KEEX-1850 Series User’s Manual... -
Page 30: Table 29 Fan1 Dc5V Fan Wafer
Table 31 FP2 Front Panel 2 Pin Header Signal Signal Power LED + Power Button + Power Button - PWRBTN PLED Power LED - SMB_ALERT# BATLOW# SMBus Data SMBus Clock KLOCK SMD 10P 2R MALE STRAIGHT TYPE Pitch:2.54mm NY 6T[YIMTEX 3362*05SANGR] KEEX-1850 Series User’s Manual... -
Page 31: Table 32 Mpcie1 Mini-Pci Express V1.2 Socket
Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB MINI PCI-Express Connector, H:5.6mm, Gold Flash, Tape Reel [FOXCONN AS0B221-S56Q-7H] * These pins are connected to CN7 SIM Interface directly KEEX-1850 Series User’s Manual... -
Page 32: Table 33 Mpcie2 Mini-Pci Express V1.2 Socket
+3.3VSB MINI PCI-Express Connector, H:9.9mm, 10u Gold Plating, Tape Reel [FOXCONN AS0B226-S99Q-7H] Table 34 SATA1 Serial ATA Port 0 Connector Signal Name [FOXCONN LD1807V-S52U] Table 35 SATA2 Serial ATA Port 1 Connector Signal Name [FOXCONN LD1807V-S52U] KEEX-1850 Series User’s Manual... -
Page 33: Rear Panel Pin Assignments
TX4+ TX3+ TX4- RJ45+TFM+LED 10/100/1000 14P DIP 90° [UDE RT7-174AAM1A(XA)] Table 38 CN14 GbE LAN2 RJ-45 Connector Signal Name Signal Name TX1+ TX3- TX1- TX2- TX2+ TX4+ TX3+ TX4- RJ45+TFM+LED 10/100/1000 14P DIP 90° [UDE RT7-174AAM1A(XA)] KEEX-1850 Series User’s Manual... -
Page 34: Table 39 Cn8 Usb3.0 Port-0,1 Type-A Connector
* The power source of +USBVCC can be selected by JP6. Table 41 CN17 DisplayPort Connector Signal Name Signal Name TX0+ TX3- TX0- TX1+ AUX+ TX1- TX2+ AUX- TX2- TX3+ DisplayPort Receptacle (Female) SMT type, 20-pin, Gold 30”, 90°, Tray [WIN WIN WDPE-20F3L1BU3] KEEX-1850 Series User’s Manual... -
Page 35: Table 42 Cn18 Hdmi Connector
Ground TMDS Data0– TMDS Clock+ Ground TMDS Clock– Reserved Reserved DDC_CLK DDC_DATA Ground +5 V Power Hot Plug Detect HDMI Receptacle with Flange, selective gold / matte tin 15u”, Black, HDMI Certification [ ZI HUI 282-1921Q30243] KEEX-1850 Series User’s Manual... -
Page 36: Chapter 3 System Installation
Hold the SO-DIMM with its notch aligned with the memory socket of the board and insert it at a 30-degree angle into the socket. Figure 6 Align the SO-DIMM Memory Module with the onboard socket KEEX-1850 Series User’s Manual... -
Page 37: Figure 7 Press Down On The So-Dimm Memory Module To Lock It In Place
SO-DIMM. Lift it out of the socket. Make sure you store the SO-DIMM in an anti-static bag. The socket must be populated with memory modules of the same size and manufacturer. KEEX-1850 Series User’s Manual... -
Page 38: Chapter 4 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 39: Main Menu
F1: General Help Frequency 1600 MHz F2: Previous Values F3: Optimized Defaults F4: Save & Reset System date [Wed 11/18/2015] ESC: Exit System time [10:34:48] Access Level Administrator Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. KEEX-1850 Series User’s Manual... -
Page 40: Advanced Menu
Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled KEEX-1850 Series User’s Manual... -
Page 41: Table 45 Advanced Menu - Display Configuration
1CH, 1366x768 24Bit 2CH, 1440x900 24Bit 2CH, 1600x1200 24Bit 2CH, 1920x1080 24Bit 2CH, 1920x1200 24Bit 2CH LVDS Backlight Control - Voltage Options: 0.0 V, 0.5 V, 1.0 V, 1.5 V, 2.0 V, 2.5 V, 3.0 V, 3.5 V, 4.0 V, 4.5 V, 5.0 V KEEX-1850 Series User’s Manual... -
Page 42: Table 46 Advanced Menu - Super Io Configuration
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port 1 Type Options: RS232, RS422, RS485 RS485 Duplex Mode Options: Half Duplex, Full Duplex RS485 Auto Flow Control Options: Disabled, Enabled KEEX-1850 Series User’s Manual... -
Page 43: Table 48 Advanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port 2 Type Options: RS232, RS422, RS485 RS485 Duplex Mode Options: Half Duplex, Full Duplex RS485 Auto Flow Control Options: Disabled, Enabled KEEX-1850 Series User’s Manual... -
Page 44: Table 49 Advanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEEX-1850 Series User’s Manual... -
Page 45: Table 50 Advanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEEX-1850 Series User’s Manual... -
Page 46: Table 51 Advanced Menu - Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEEX-1850 Series User’s Manual... -
Page 47: Table 53 Advanced Menu - Cpu Chipset Configuration
Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. EIST Options: Disabled, Enabled CPU C state Report Options: Disabled, Enabled Max CPU C-state Options: C7, C6, C1 SOix Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled Intel Virtualization Technology Options: Disabled, Enabled KEEX-1850 Series User’s Manual... -
Page 48: Table 54 Advanced Menu - Sata Configuration
Empty ESC: Exit Port 2 [Enabled] Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. SATA Controller Options: Enabled, Disabled SATA Interface Speed Options: Gen1, Gen2, Gen3 Port 1 Options: Enabled, Disabled Port 2 Options: Enabled, Disabled KEEX-1850 Series User’s Manual... -
Page 49: Table 55 Advanced Menu - Usb Configuration
USB Mass Storage Driver Support [Enabled] Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. Legacy USB Support Options: Enabled, Disabled, Auto XHCI Legacy Support Options: Enabled, Disabled XHCI Hand-off Options: Enabled, Disabled USB Mass Storage Driver Support Options: Disabled, Enabled KEEX-1850 Series User’s Manual... -
Page 50: Table 56 Advanced Menu - Dio Configuration
Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. User Configuration Options: Enabled, Disabled DO_1 Options: Output Low, Output High DO_2 Options: Output Low, Output High DO_3 Options: Output Low, Output High DO_4 Options: Output Low, Output High KEEX-1850 Series User’s Manual... -
Page 51: Table 57 Advanced Menu - H/W Monitor
ESC: Exit +VMEM : +1.389 V Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 C, 85 C, 90 C, 95 C Smart FAN Configuration CPU FAN Setting Options: Manual, Smart KEEX-1850 Series User’s Manual... -
Page 52: Table 58 Power Manu
Resume By LAN Device Options: Disabled, Enabled Resume By PCI-E Device Options: Disabled, Enabled Resume By Ring Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled WatchDog Timer Configuration WDT Function [Disabled] Options: Disabled, Enabled KEEX-1850 Series User’s Manual... -
Page 53: Security Menu
The password length must be in the following range: F4: Save & Reset Minimum Length 3 ESC: Exit Maximum length 20 Administrator Password User Password HDD Security Configuration: P0: SanDisk SD8S Version 2.17.1249. Copyright (C) 2015, American Megatrends, Inc. KEEX-1850 Series User’s Manual... -
Page 54: Boot Menu
Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off CSM Support Options: Enabled, Disabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only Boot Option #1 Options: P0: SanDisk SD8SBAT256G1122, Disabled KEEX-1850 Series User’s Manual... -
Page 55: Save & Exit Menu
Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KEEX-1850 Series User’s Manual... -
Page 56: Chapter 5 Driver Installation
After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. You can download the drivers for the KEEX-1850 Series from the Quanmax website www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax. - Page 57 //DO_2: memory address 0xFED8C420 bit1 //DO_3: memory address 0xFED8C440 bit1 //DO_4: memory address 0xFED8C410 bit1 //***************************************************************** #include <stdio.h> #include <stdlib.h> #include <string.h> typedef unsigned long DWORD; DWORD MEM_BASE_ADDRESS = 0xFED88000; DWORD addr_offset[8] = {0x4400, //DI_1 0x4418, //DI_2 0x4438, //DI_3 KEEX-1850 Series User’s Manual...
- Page 58 //Read the DO pin 1~4 value into_PT_mode(); printf("Read DO_1~4 value\n"); for (i=4; i<8; i++) RetVal = read_mem_dword(MEM_BASE_ADDRESS + addr_offset[i]); gGpioLvValue = RetVal & 0x2; printf("DO_%d = %d\n",i-3 ,gGpioLvValue > 0); into_RL_mode(); system("pause"); //Write the DO pin 1~4 to High KEEX-1850 Series User’s Manual...
- Page 59 RetVal = read_mem_dword(MEM_BASE_ADDRESS + addr_offset[i]); gGpioLvValue = RetVal & 0xFFFFFFFD; write_mem_dword(MEM_BASE_ADDRESS + addr_offset[i], gGpioLvValue); printf("Read DO_1~4 value\n"); for (i=4; i<8; i++) RetVal = read_mem_dword(MEM_BASE_ADDRESS + addr_offset[i]); gGpioLvValue = RetVal & 0x2; printf("DO_%d = %d\n",i-3 ,gGpioLvValue > 0); into_RL_mode(); return 0; KEEX-1850 Series User’s Manual...
-
Page 60: Watchdog Timer Sample Code
Appendix B Appendix B WatchDog Timer Sample Code //********************************************************************** //********************************************************************** //** //** (C) Copyright 2013-2015, Quanmax, Inc. //** //** All Rights Reserved. //** //** 5F, No.455, Ti-Ding Blvd., Sec. 2, //** Neihu District, Taipei, Taiwan 114 //** //** Phone: +886-2-2799-2789... - Page 61 //Set Timer unit(0xF0 bit3(0: 1sec, 1: 60 sec) of watchdog timer by setting this bit) outp(SIO_CONFIG_INDEX,0xF0); value=inp(SIO_CONFIG_DATA); outp(SIO_CONFIG_DATA,(value & 0xF7));//set unit sec. //Set Timer Value(0xF1 Time of watchdog timer) outp(SIO_CONFIG_INDEX,0xF1); outp(SIO_CONFIG_DATA,0x14);//set to 20 sec (0x14) LockSIO(); KEEX-1850 Series User’s Manual...
