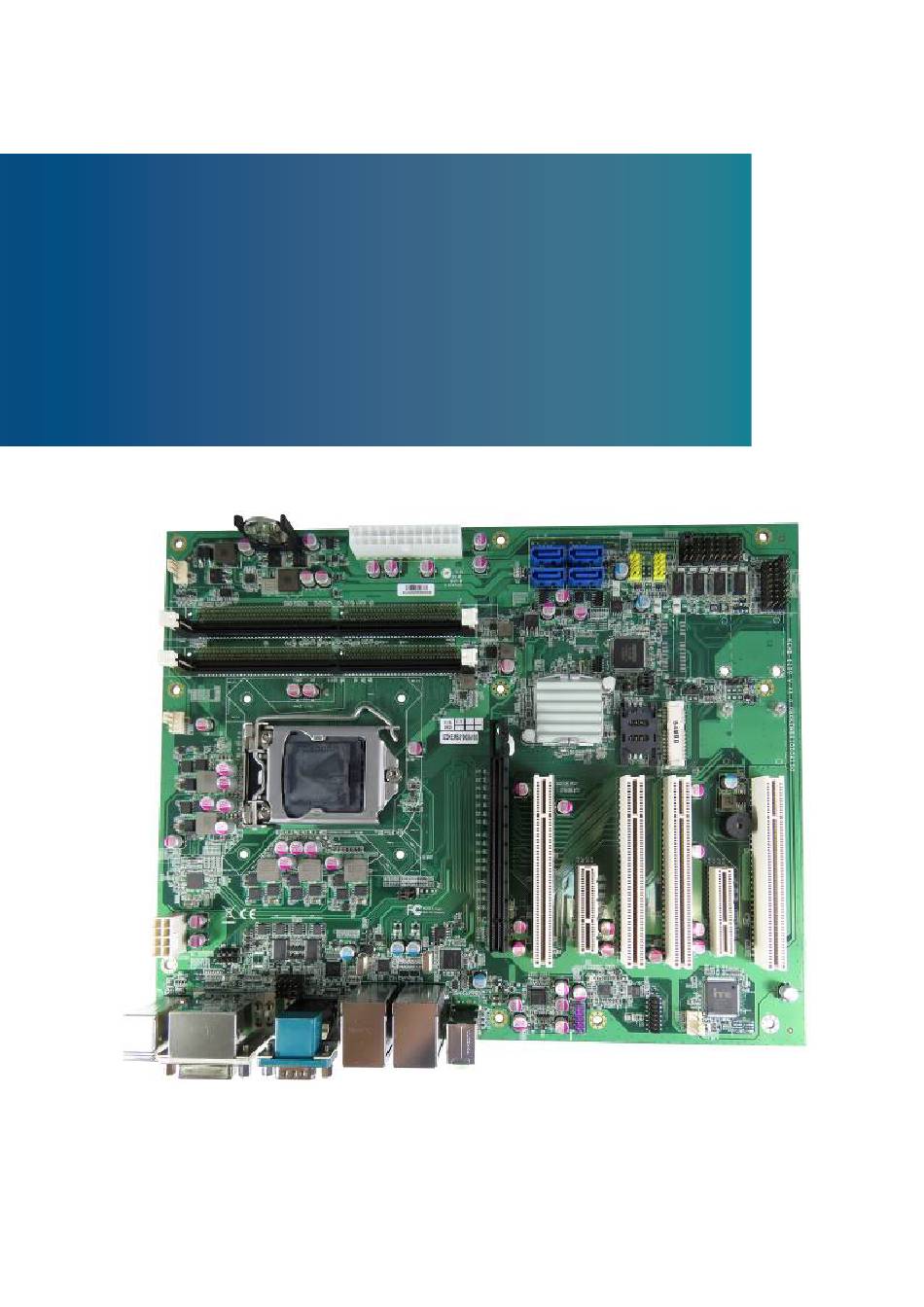

Introduction Overview The KEMB-8100 and ATX-KLS0 Series is a standard / extended temperature ATX form factor industrial motherboard equipped with Intel® Skylake and Kaby Lake S-Series Processors respectively. It has a variety of I/O ports and expansion slots for peripheral applications and expansion, including 4x DDR4 UDIMM, 1x VGA, 1x DVI-D, 1x DP, 1x HDMI, 2x GbE, 4x SATA, 4/6x USB3.0, 4/6x USB2.0, 6x COM, 16-bit DIO,... -
Page 18: Product Specifications
AMI uEFI BIOS BIOS 1x 128Mb SPI flash memory onboard Input & Core Voltages monitoring Hardware Monitor CPU & System Temperatures monitoring Programable WDT to generate System reset event Watchdog KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 19: System Block Diagram
0ºC ~ 60ºC / 32ºF ~ 140ºF (Standard) Operation Temp. -20ºC ~ 70ºC / -4ºF ~ 158ºF (Standard) CE, FCC Class A Certifications Table 1 Product Specifications System Block Diagram Figure 1 Block Diagram KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 20: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Figure 2 Mechanical Dimensions KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 21: Chapter 2 Hardware Settings
No.1. To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the pins and move it to the desired position. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 22: Jumper Settings And Pin Definitions
Chapter 3 Jumper Settings and Pin Definitions For jumper and connector locations, please refer to the diagrams below. Figure 4 Jumper and Connector Locations KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 23: Jumper Settings
4-6 Short COM4, Pin-9 = +5V 6-8 Short COM4, Pin-9 = +5V 8-10 Short COM4, Pin-9 = RI Pitch:2.54mm Table 4 JP2 Keyboard Lock Selection Jumper Description 1-2 Short Normal 2-3 Short Keyboard Locked Pitch:2.54mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 24: Table 5 Jp3 Mpcie Led Indicator Jumper
Table 10 JP8 Clear ME Register Jumper Description 1-2 Short Normal 2-3 Short Clear ME Register Pitch:2.54mm Table 11 JP9 mPCIE / mSATA Selection for MPCIE1 (Q170 models only) Jumper Description 1-2 Short mSATA 2-3 Short mPCIE Pitch:2.54mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 25: Table 12 Jp12 Pcie Configuration Setting For Peg1 (Q170 Models Only)
5-7 Short COM1, Pin-9 = +5V 7-9 Short COM1, Pin-9 = RI 2-4 Short COM2, Pin-9 = +12V 4-6 Short COM2, Pin-9 = +5V 6-8 Short COM2, Pin-9 = +5V 8-10 Short COM2, Pin-9 = RI Pitch:2.54mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 26: Rear Panel Pin Assignments
Table 18 CN15 GbE LAN2 & USB3.0 Port-1, 2 Connector Signal Signal Signal +USBVCC +USBVCC MDI[0]+ USB_A- USB_A- MDI[0]- USB_A+ USB_A+ MDI[1]+ MDI[1]- USB3_SSRX- USB3_SSRX- MDI[2]+ USB3_SSRX+ USB3_SSRX+ MDI[2]- MDI[3]+ USB3_SSTX- USB3_SSTX- MDI[3]- USB3_SSTX+ USB3_SSTX+ KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 27: Table 19 Cn17 Dvi-D Connector
Mouse Data No Connect Ground MS5V +5VSB Power Source MSCLK Mouse Clock No Connect Table 22 CN20 Display Port Connector Signal Name Signal Name TX0+ TX3- TX0- TX1+ AUX+ TX1- TX2+ AUX- TX2- TX3+ KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 28: Table 23 Cn21 Rs-232/422/485 Com1 Connector
Chapter 3 Table 23 CN21 RS-232/422/485 COM1 Connector Signal Name Signal Name Table 24 CN22 HDMI Port Connector Signal Signal TMD_DATA2+ TMD_CLK- TMD_DATA2- TMD_DATA1+ RESERVED DDC_CLK TMD_DATA1- DDC_DATA TMD_DATA0+ TMD_DATA0- HPET TMD_CLK+ KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 29: Main Board Pin Assignments
PCIEx16 Slot SATA1 Serial ATA Port-1 Connector (H110 models only) SATA2 Serial ATA Port-2 Connector (H110 models only) SATA3 Serial ATA Port-3 Connector SATA4 Serial ATA Port-4 Connector SIM1 SIM Card Holder for MPCIE1 KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 30: Table 26 Atx1 2X12-Pin Atx Power Supply Wafer
Table 27 ATX2 2x4-Pin ATX Power Supply Wafer Signal Name +12V +12V +12V +12V Pitch:4.2mm Table 28 CN1 Sata Express Header (Q170 models only) Signal Name Signal Name PETP0 PETP1 PETN0 PETN1 PERN0 PERN1 PERP0 PERP1 RESERVED DEVSLP/CLKREQ# PERST# IFDET Pitch:2.0mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 31: Table 29 Cn2 Usb3.0 Port-5, 6 Box Header (Q170 Models Only)
TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator / +12V / +5V * NC, Key Pitch:2.54mm *：Selected by JP1. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 32: Table 32 Cn5 Rs-232 Com5 Pin Header
Signal Name +VBUS_A +VBUS_B USB_A- USB_B- USB_A+ USB_B+ GND_A GND_B Pitch:2.54mm Table 35 CN8 USB2.0 Port-11, 12 Pin Header (Q170 models only) Signal Name Signal Name +VBUS_A +VBUS_B USB_A- USB_B- USB_A+ USB_B+ GND_A GND_B Pitch:2.54mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 33: Table 36 Cn9 Usb2.0 Port-9, 10 Pin Header
Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ RI/+5V/+12V* RI/+5V/+12V* RI/+5V/+12V* RI/+5V/+12V* Pitch:2.54mm *：Selected by JP14. Table 39 CN13 VGA Debug port Signal Name Signal Name Green Blue DDC_DATA HSYNC VSYNC DDC_CLK Pitch:2.54mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 34: Table 40 Cn16 Front Panel Audio Pin Header
Table 45 FP2 Front Panel Pin Header 2 Signal Signal Power LED + Power Button + Power Button - PWRBTN PLED Power LED - SM_ALERT# SM_ALERT# BAT_LOW# SMBus Data BAT_LOW# SM_DATA SM_CLK SMBus Clock Pitch:2.54mm KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 35: Table 46 Mpcie1 Full Size Mpcie / Msata Socket (H110 Models Only)
Ground Ground USB_D- Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground / NC* LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB Height:5.6mm *: mPCIE / mSATA. **: These pins are connected to SIM1 directly. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 36: Table 47 Mpcie2 Half Size Mpcie / Msata Socket (Q170 Models Only)
Ground SMB_CLK PETn0 / SATA_TX-* SMB_DATA PETp0 / SATA_TX+* Ground Ground USB_D- Ground USB_D+ +3.3VSB Ground +3.3VSB LED_WWAN# Ground / NC* LED_WLAN# Reserved LED_WPAN# Reserved +1.5V Reserved Ground Reserved +3.3VSB Height:5.6mm *：mPCIE / mSATA. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 37: Table 48 Pci1,2,3,4 32-Bit, 33Mhz Pci Slot 1,2,3,4
TRDY# DEVSEL# Ground Ground STOP# LOCK# +3.3V PERR# SMB_CLK +3.3V SMB_DAT SERR# Ground +3.3V C/BE[1]# AD[15] AD[14] +3.3V Ground AD[13] AD[12] AD[11] AD[10] Ground Ground AD[09] AD[08] C/BE[0]# AD[07] +3.3V +3.3V AD[06] AD[05] AD[04] KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 38: Table 49 Pcie1,2 Pciex4 Slot 1,2
PETX0+ REFCLK- PETX0- Ground Ground PERX0+ PRSNT2#1 PERX0- Ground Ground PETX1+ PETX1- Ground Ground PERX1+ Ground PERX1- PETX2+ Ground PETX2- Ground Ground PERX2+ Ground PERX2- PETX3+ Ground PETX3- Ground Ground PERX3+ PERX3- Ground Ground KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 39: Table 50 Peg1 Pcie Express X16 Slot
Ground HSIP5 Ground HSIN5 HSOP6 Ground HSON6 Ground Ground HSIP6 Ground HSIN6 HSOP7 Ground HSON7 Ground Ground HSIP7 PRSNT2# HSIN7 Ground Ground HSOP8 Reserved HSON8 Ground Ground HSIP8 Ground HSIN8 HSOP9 Ground HSON9 Ground KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 40: Table 51 Sata1,2,3,4 Serial Ata Port-1,2,3,4 Connector
Ground HSIN14 HSOP15 Ground HSON15 Ground Ground HSIP15 PRSNT2# HSIN15 Reserved Ground Table 51 SATA1,2,3,4 Serial ATA Port-1,2,3,4 Connector Signal Name DIP SATA-7P 180D CONN. BLUE/double row pin/parallel positioning peg [WIN WIN WATM-07ABN4A2B8UW4] (SATA1,2,3,4) KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 41: Table 52 Sim1 Sim Card Holder For Mpcie1
Chapter 3 Table 52 SIM1 SIM Card Holder for MPCIE1 Signal Name UIM_PWR UIM_RST UIM_CLK UIM_VPP UIM_DATA KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 42: Chapter 3 System Installation
Hold the DIMM with its notch aligned with the onboard socket and insert it straight down into the socket. Fully insert the module into the socket until the ejector tabs pop up and a “click” is heard. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 43: Figure 6 Spread Apart The Ejector Tabs, Align The Dimm With The Socket And
DIMM. Lift it out of the socket. Make sure you store the DIMM in an anti-static bag. The socket must be populated with memory modules of the same size and manufacturer. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 44: Chapter 4 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 45: Main Menu
Intel® Core™ i7-6700TE CPU @ 2.40GHz ESC: Exit Microcode Revision Processor Cores Memory Information Total Size 4096 MB Frequency 2133 MHz System Date [Mon 01/25/2016] System Time [13:48:23] Access Level Administrator Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 46: Advanced Menu
Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 47: Table 55 Advanced Menu - Display Configuration
Options: 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M, 1024M DVMT Total Gfx Mem Options: 128M, 256M, MAX Primary IGFX Boot Display Options: VBIOS Default, CRT, DP, DVI, HDMI KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 48: Table 56 Advanced Menu - Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 49: Table 58 Advanced Menu -Super Io Configuration - Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 50: Table 59 Advanced Menu -Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 51: Table 60 Advanced Menu -Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 52: Table 62 Advanced Menu -Super Io Configuration - Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 53: Table 63 Advanced Menu -Cpu Chipset Configuration
Options: Disabled, Enabled Active Processor Cores Options: All, 1, 2, 3 Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel® Virtualization Technology Options: Disabled, Enabled Intel® TXT(LT) Support Options: Disabled, Enabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 54: Table 64 Advanced Menu - Sata Configuration
Serial ATA Port 3 Port 3 Options: Disabled, Enabled Serial ATA Port 4 Port 4 Options: Disabled, Enabled mSATA Port 1 Port 1 Options: Disabled, Enabled mSATA Port 2 Port 2 Options: Disabled, Enabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 55: Table 65 Advanced Menu - Usb Configuration
[Disabled] F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. Intel AMT Options: Disabled, Enabled Un-Configure ME Options: Disabled, Enabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 56: Table 67 Advanced Menu - Tpm Configuration (Q170 Models Only)
+-: Change Opt. Current Status Information F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. Security Device Support Options: Disabled, Enabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 57: Table 68 Advanced Menu - Dio Configuration
DIO_5 Value DIO_6 Value DIO_7 Value DIO_8 Value DIO_9 Value DIO_10 Value DIO_11 Value DIO_12 Value DIO_13 Value DIO_14 Value DIO_15 Value Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. User Configuration Options: Enabled, Disabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 58: Table 69 Advanced Menu - H/W Monitor
Options: Disabled, 80 C, 85 C, 90 C, 95 C Smart FAN Configuration CPU FAN Setting [Manual] Options: Manual, Smart System FAN Setting [Manual] Options: Manual, Smart Aux FAN Setting [Manual] Options: Manual, Smart KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 59: Power Menu
Resume By PCI Device(PME#) Options: Disabled, Enabled Resume By PCI-E Device Options: Disabled, Enabled Resume By Ring Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled Watchdog Timer Configuration WDT Function Options: Disabled, Enabled KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 60: Security Menu
F3: Optimized Defaults Administrator rights F4: Save & Reset The password length must be in the following range: ESC: Exit Minimum Length Maximum length Administrator Password User Password Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 61: Boot Menu
Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off CSM Support Options: Enabled, Disabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only KEMB-8100 & ATX-KLS0 Series User’s Manual... -
Page 62: Save & Exit Menu
+-: Change Opt. Save Options F1: General Help Save Changes F2: Previous Values Discard Changes F3: Optimized Defaults F4: Save & Reset Restore Defaults ESC: Exit Version 2.17.1254. Copyright (C) 2016, American Megatrends, Inc. KEMB-8100 & ATX-KLS0 Series User’s Manual... - Page 63 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KEMB-8100 & ATX-KLS0 Series User’s Manual...
-
Page 64: Chapter 5 Driver Installation
Chapter 5 Driver Installation If your KEMB-8100 / ATX-KLS0 Series does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. -
Page 65: Appendix A Dio (Digital I/O) Sample Code
// DIO_7 : GP37 DIO_15 : GP47 //**************************************************************// #include<stdio.h> #define INDEX_PORT 0x2E #define DATA_PORT INDEX_PORT+1 void Set_SIO_Reg( int REG, int DATA) outportb(INDEX_PORT, REG); outportb(DATA_PORT, DATA); int Get_SIO_Reg(int REG) int Result; outportb(INDEX_PORT, REG); Result = inportb(DATA_PORT); KEMB-8100 & ATX-KLS0 Series User’s Manual... - Page 66 RetVal = Get_SIO_Reg(0xED); printf("Read DIO_0~15 value\n"); for (i=0; i<8; i++) Temp = (RetVal>>i) & 0x01; printf("DIO_%d = %d\n",i ,Temp); RetVal = Get_SIO_Reg(0xF1); for (i=0; i<8; i++) Temp = (RetVal>>i) & 0x01; printf("DIO_%d = %d\n",8+i ,Temp); KEMB-8100 & ATX-KLS0 Series User’s Manual...
- Page 67 //Set DIO_0~15 as Output Set_SIO_Reg(0xEC, 0x00); Set_SIO_Reg(0xF0, 0x00); //set DIO_0~7 to High printf("Set DIO_0~15 to High\n"); Set_SIO_Reg(0xED, 0xFF); Set_SIO_Reg(0xF1, 0xFF); system("pause"); //set DIO_0~7 to Low printf("Set DIO_0~15 to Low\n"); Set_SIO_Reg(0xED, 0x00); Set_SIO_Reg(0xF1, 0x00); system("pause"); return 0; KEMB-8100 & ATX-KLS0 Series User’s Manual...
-
Page 68: Appendix B Watchdog Timer Sample Code
//========================================================== ==========// #include<stdio.h> #define SIO_CONFIG_INDEX 0x2e #define SIO_CONFIG_DATA SIO_CONFIG_INDEX+1 void UnlockSIO() outp(SIO_CONFIG_INDEX,0x87); outp(SIO_CONFIG_INDEX,0x87); void LockSIO() outp(SIO_CONFIG_INDEX,0xAA); void SetLDN(int LDN) outp(SIO_CONFIG_INDEX, 0x07); outp(SIO_CONFIG_DATA, LDN); void main() int value = 0; UnlockSIO(); SetLDN(0x08); //Enable WDT outp(SIO_CONFIG_INDEX,0x30); KEMB-8100 & ATX-KLS0 Series User’s Manual... - Page 69 //Set Timer unit(0xF0 bit3(0: 1sec, 1: 60 sec) of watchdog timer by setting this bit) outp(SIO_CONFIG_INDEX,0xF0); value=inp(SIO_CONFIG_DATA); outp(SIO_CONFIG_DATA,(value & 0xF7));//set unit sec. //Set Timer Value(0xF1 Time of watchdog timer) outp(SIO_CONFIG_INDEX,0xF1); outp(SIO_CONFIG_DATA,0x14);//set to 20 sec (0x14) LockSIO(); KEMB-8100 & ATX-KLS0 Series User’s Manual...
