Operating the VM-114H2C
controller controls the LCD display and so on, as shown in the following examples.
The following examples illustrate just three of the possible ways of connecting the
VM-114H2C to provide local and remote IR control.
5.4.2.1 IR Local Control and Pass-through Example One
The configuration is shown in Figure 5.

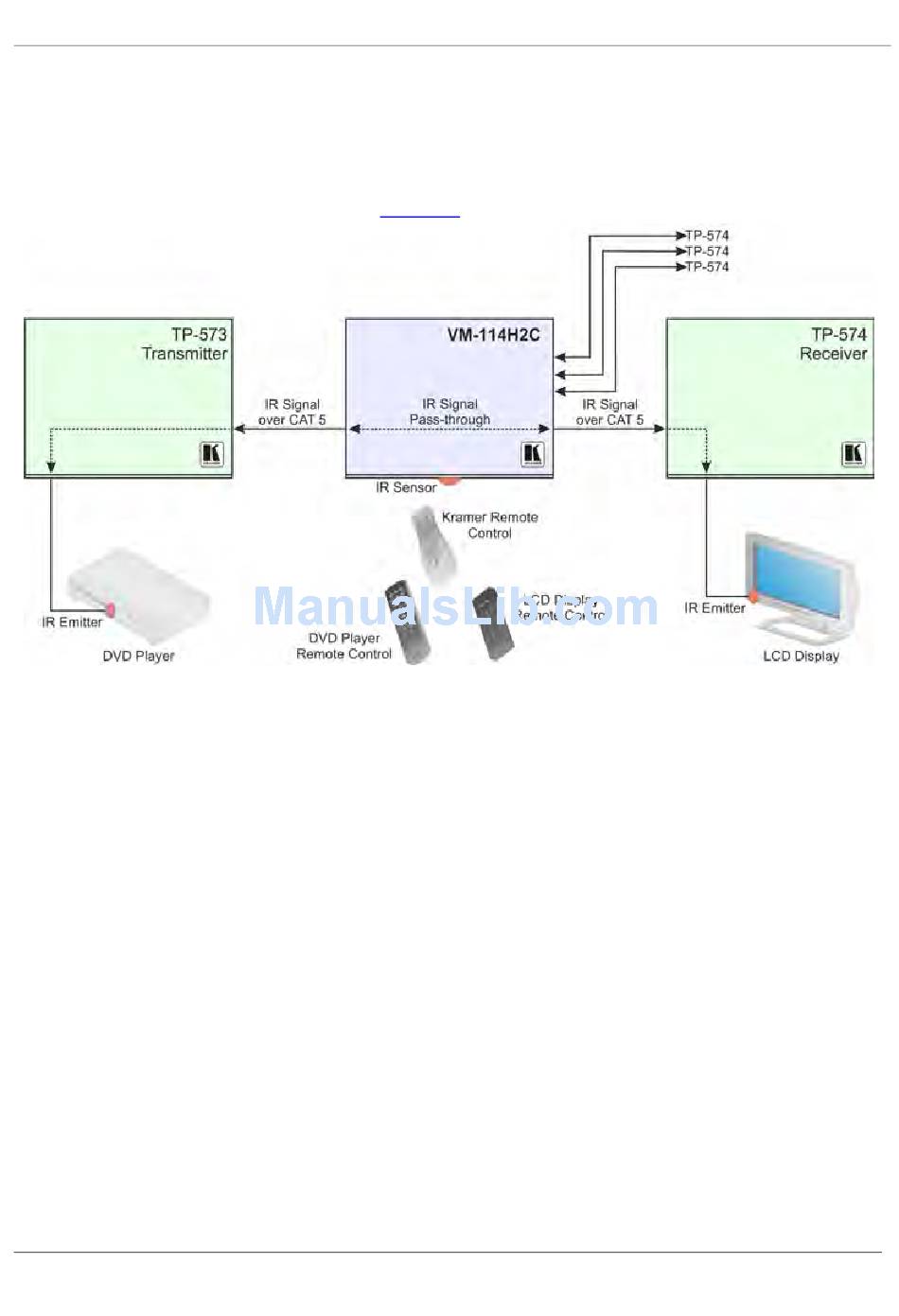

Figure 5: VM-114H2C IR Control and Pass-through Example One

A DVD player is connected to the TP-573 transmitter via an IR emitter.
An LCD display is connected to the TP-574 receiver via an IR emitter.
Both the TP-573 and the TP-574 are connected to the VM-114H2C via TP
cabling.
Point the appropriate remote control for the device at the VM-114H2C IR sensor
to control a device.
12
KRAMER: SIMPLE CREATIVE TECHNOLOGY
