Figure 2
and
Table 2
#
Feature
11
RS-232 9-pin D-sub (F)
Connector
12
12V DC Power Connector
13
IN1 (HDMI) Input
HDMI Connector
14
IN2 (CAT5) Input
RJ-45 Connector
15
OUT 1
HDMI Output
Connectors
OUT 2
16
OUT 3
TP RJ-45 Output
Connectors
OUT 4
Defining the VM-114H2C
define the rear panel of the VM-114H2C.

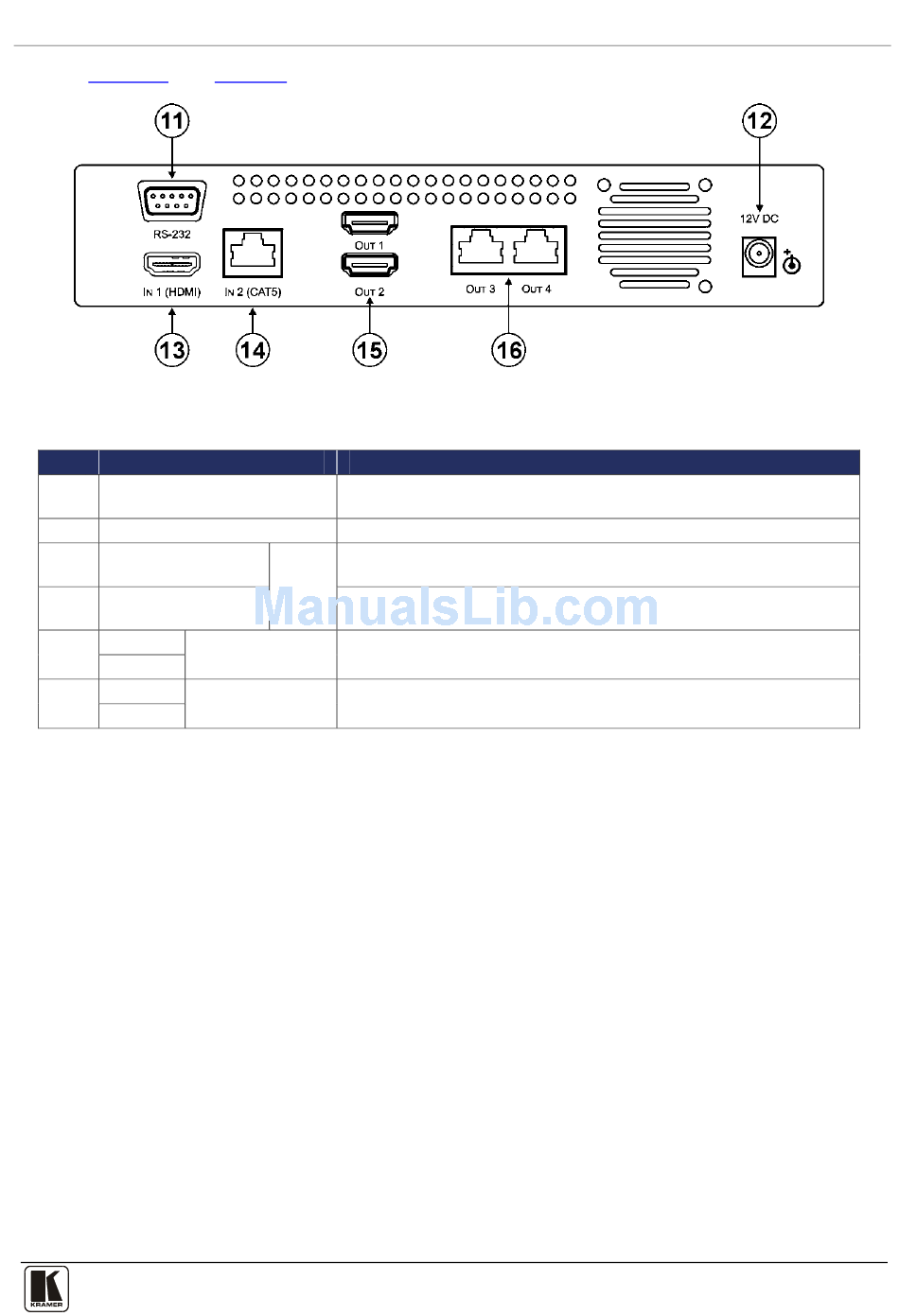

Figure 2: VM-114H2C Rear Panel
Table 2: VM-114H2C Rear Panel Features
Connect to a PC or remote controller
Connect to the +12V DC power adapter, center pin posi ive
Connect to an HDMI source
Inputs
Connect to a TP source (for example, PT-571 HDMI Line Transmitter,
VM-114H2C or VM-114H4C)
Connect to the HDMI acceptors
Connect to he TP acceptors (for example, PT-572+ HDMI Line Receiver,
VM-114H or VM-114H4C)
Function
7
