KRAMER ELECTRONICS, Ltd.

USER MANUAL

Distribution Amplifiers Models:
VM-1010, VM-1015, VM-1021,
VM-1042, VM-1044, VM-1055, VM-54
IMPORTANT: Before proceeding, please read paragraph entitled
"Unpacking and Contents"
KRAMER ELECTRONICS LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-1010 and is the answer not in the manual?

Questions and answers

Related Manuals for Kramer VM-1010

Summary of Contents for Kramer VM-1010

  • Page 1: User Manual

    KRAMER ELECTRONICS, Ltd. USER MANUAL Distribution Amplifiers Models: VM-1010, VM-1015, VM-1021, VM-1042, VM-1044, VM-1055, VM-54 IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents" KRAMER ELECTRONICS LTD.

  • Page 2: Table Of Contents

    HOW DO I GET STARTED? UNPACKING AND CONTENTS Optional Accessories VM SERIES AMPLIFIERS Getting To Know Your VM-1010 Amplifier Getting To Know Your VM-1015 Amplifier Getting To Know Your VM-1021 Amplifier Getting To Know Your VM-1042 Amplifier Getting To Know Your VM-1044 Amplifier...

  • Page 3: Introduction

    In addition to the Kramer line of high quality amplifiers, such as the one you have just purchased, Kramer also offers a full line of high quality industrial and broadcast switchers, processors, interfaces, controllers and computer-related products.

  • Page 4: Factors Affecting Quality Of Results

    Interference from neighboring electrical appliances - These can have an adverse effect on signal quality. Balanced audio lines are less prone to interference, but unbalanced audio should be installed far from any mains power cables, electric motors, transmitters, etc. even when the cables are shielded. KRAMER ELECTRONICS LTD.

  • Page 5: Specifications

    17.78 x 4.5cm Weight 2.5kg (5.55lb) 2.42kg (5.38lb) Approx. approx. Power 10.3VA 4.6VA consumption Power Source 230V/115V AC 230V/115V AC 50/60Hz 50/60Hz KRAMER ELECTRONICS LTD. VM-1021 VM-1042 VM-1044 1X CV 4XCV/RGB 4XCV/RGB CV/RGB CV/RGB 1Vpp/75 1Vpp/75 1Vpp/75 looping looping CV 3Vpp Max.

  • Page 6: How Do I Get Started

    So if the section doesn’t apply to you, you don’t have to spend your time reading it. UNPACKING AND CONTENTS The items contained in your Kramer VM Amplifier packaging are listed below. Please save the original box and packaging materials for possible future transportation and shipment of the Amplifier.

  • Page 7: Vm Series Amplifiers

    Output signals are (user selectable) DC or AC coupled for maximum flexibility. Front/rear panel features of the VM-1010 are described in Figure 1, Table 1 and Table 2. Figure 1: VM-1010 Front/Rear Panel Features Table 1: VM-1010 Front Panel Features...

  • Page 8: Getting To Know Your Vm-1015 Amplifier

    Power Connector Getting To Know Your VM-1015 Amplifier The KRAMER VM-1015 is a full broadcast, state-of-the-art 1:5 Video Distribution Amplifier designed for studio and other demanding applications. The VM-1015 splits a single input source into five identical outputs with no discernible signal degradation.

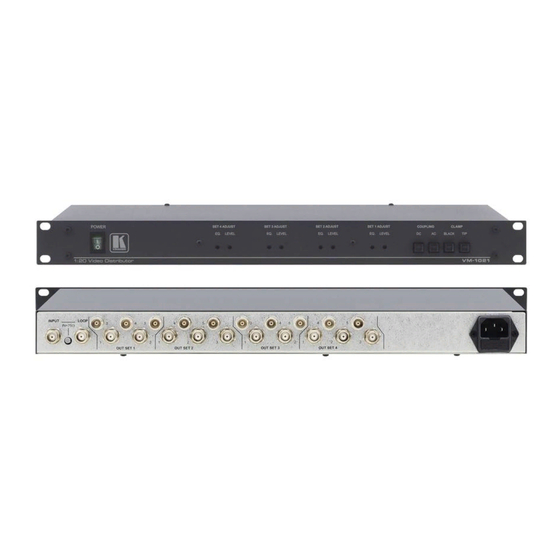

  • Page 9: Getting To Know Your Vm-1021 Amplifier

    Power Connector Getting To Know Your VM-1021 Amplifier The KRAMER VM-1021 is a full broadcast, state-of-the-art, 1:20 Video Distribution Amplifier designed for studio and other demanding applications. The VM-1021 splits a single input source into twenty identical outputs with no discernible signal degradation.

  • Page 10: Vm-1021 Front Panel Features

    OUT 1-5 BNC connectors (SET 2) OUT 1-5 BNC connectors (SET 3) OUT 1-5 BNC connectors (SET 4) Power Connector KRAMER ELECTRONICS LTD. Function Illuminated switch: Supplies power to the unit. Controls cable equalization of SET 4 video outputs. Controls level of SET 4 video outputs.

  • Page 11: Getting To Know Your Vm-1042 Amplifier

    Getting To Know Your VM-1042 Amplifier The KRAMER VM-1042 is a full broadcast, looping Video Component Distributor designed for studio and other demanding applications. VM-1042 splits each input of a four-component source into two identical outputs with no discernible signal degradation.

  • Page 12: Getting To Know Your Vm-1044 Amplifier

    Getting To Know Your VM-1044 Amplifier The KRAMER VM-1044 is a full broadcast, Video Component Distributor designed for studio and other demanding applications. The VM-1044 splits a four-component input source into four identical outputs, with no discernible signal degradation. Input and output DC coupling and state-of-the-art video amplifying circuitry make the KRAMER VM-1044 the first choice Video Component Distributor.

  • Page 13: Vm-1055 Front/Rear Panel Features

    OUT G 1-5 BNC connectors IN B BNC connector OUT B 1-5 BNC connectors Power Connector KRAMER ELECTRONICS LTD. Function Illuminated switch: Supplies power to the unit. Selects “ 75 “ or “ HI-z” impedance for Hs Channel. When at the "75 "...

  • Page 14: Getting To Know Your Vm-54 Amplifier

    Getting To Know Your VM-54 Amplifier The KRAMER VM-54 is a high quality, state-of-the-art, Video/Component Distribution Amplifier designed for studio and other demanding applications. The VM-54 has three looping input channels each with 18 outputs. With this configuration a 1:18 RGB distributor can be formed.

  • Page 15: Front Panel Features

    INPUT BNC connectors (channels 1-3) LOOP BNC connectors (channels 1-3) OUTPUTS BNC connectors 1-18 (channels 1-3) Power Connector KRAMER ELECTRONICS LTD. Function Controls video levels of outputs 6-10 in Channels 1-3. Controls cable equalization of video outputs 1-5 in Channels 1-3.

  • Page 16: Installation

    INSTALLATION Rack Mounting KRAMER ELECTRONICS LTD.

  • Page 17: Connecting To Video Devices

    15 separate output signals. The operator must always switch to "Hi-z" the termination switch of all the amplifiers but the last. The last amplifier’ s termination switch should always be at "75 " to maintain well-matched video KRAMER ELECTRONICS LTD. Supported signal Composite/component/YC/analog sync video...

  • Page 18: Level Control

    "75 ". Level Control (VM-1010, VM-1015, VM-1021, VM-54 only) Level Control function enables the operator to control video signal level or compensate for distortions such as those caused by cables that are too long. Using a non-standard, or an uncalibrated video source also affects the incoming signal.

  • Page 19: Coupling

    Doing so may remove or damage the finish, or may allow moisture to build up. Take care not to allow dust or particles to build up inside unused or open connectors. KRAMER ELECTRONICS LTD. WARNING!

  • Page 20: Troubleshooting

    If not, turn the power switch off and on again to reset the machine. 2. If the recommended actions still do not result in satisfactory operation, please consult your KRAMER Dealer. Power and Indicators Problem Remedy No Power Confirm that rocker switch is in “ON”...
  • Page 21 Disconnect all cables and reconnect them one at a time until ground loop reappears. Disconnect the affected cable and replace, or insert an isolation device (opto isolator or transformer) in the signal path. KRAMER ELECTRONICS LTD. WARNING...
  • Page 23 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
