4.8 Analog Output

• Turn the rotary switch to the
• Insert the red lead to the red "+" input jack and the black lead to the black
"COM" input jack.
• Connect the ends of both cables to an oscilloscope or another multimeter.

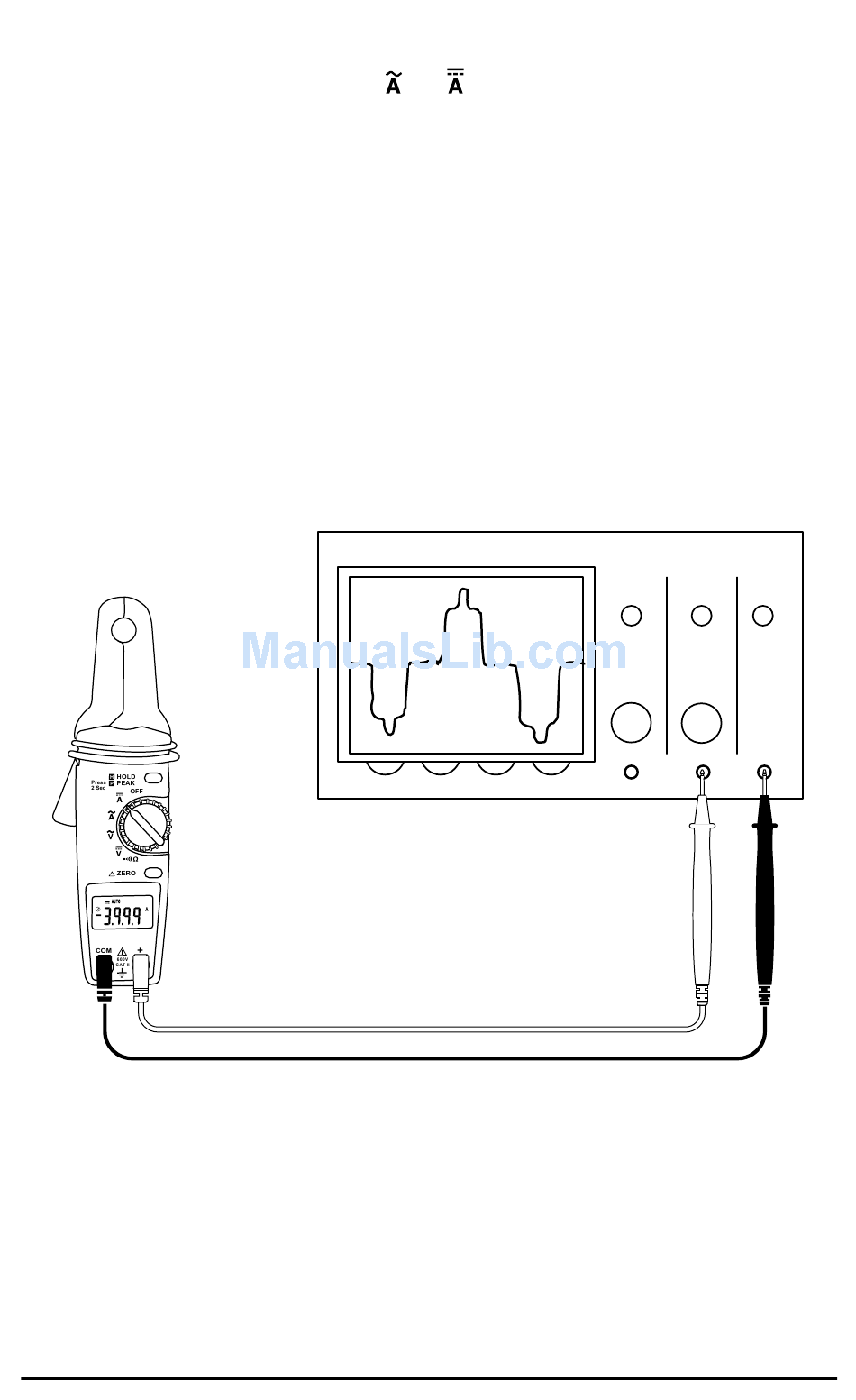

• Clamp the jaws around the conductor to be measured.
• Read the analog signal on the oscilloscope or multimeter.
- If the signal measured is continuous, the output signal will be DC.
- If the signal measured is alternating, the output signal will be AC.
16
or range.
AC Clamp-on Meter Model CM605
