Chapter 4 : Rear Panel - Delta Amplon UPS102N2000B035 User Manual

1
2
No.
Mini Slot
1
Output Socket
Output Socket_ 1
2
Output Socket_ 2
USB Port
3
Fan(s)
4
Input Breaker
5
AC Input Socket
6
Amplon N Series

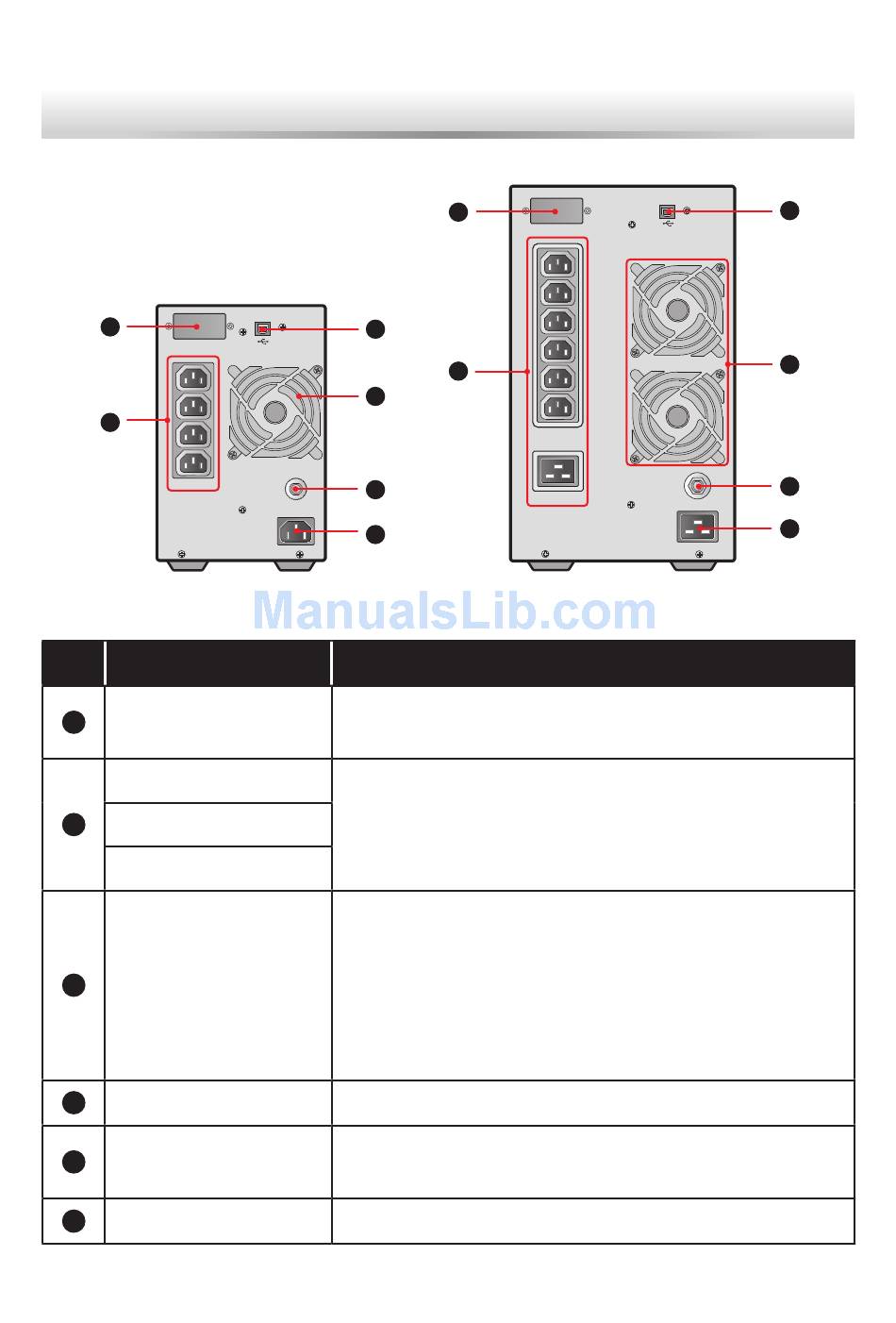

Chapter 4 : Rear Panel

MINI SL O T
IN PUT BREAKER
10A
OUTPUT SOCKET
AC I N P UT
1 kVA
Item
Accepts a mini SNMP, mini Relay I/O, mini ModBus
or mini TVSS card (optional).
Connect to your loads.
Connects to your computer. You can monitor the
UPS's status via your computer by installing the
Virtual COM Port Driver and the UPSentry 2012
software (please download from http://www.
deltapowersolutions.com/en/mcis/software-center.
php).
Cool(s) and ventilate(s) the UPS.
It is the input power's protective device. It is for
safety protection.
Connects the UPS to the mains.
1
3
2
4
OUTPUT SOCKET-1
5
OUTPUT SOCKET-2
6
Functions
1 8
MI N I SLO T
IN PUT BREAKER
20A
AC I N P UT
2/ 3 kVA
3
4
5
6
