Summary of Contents for Comelit 49136

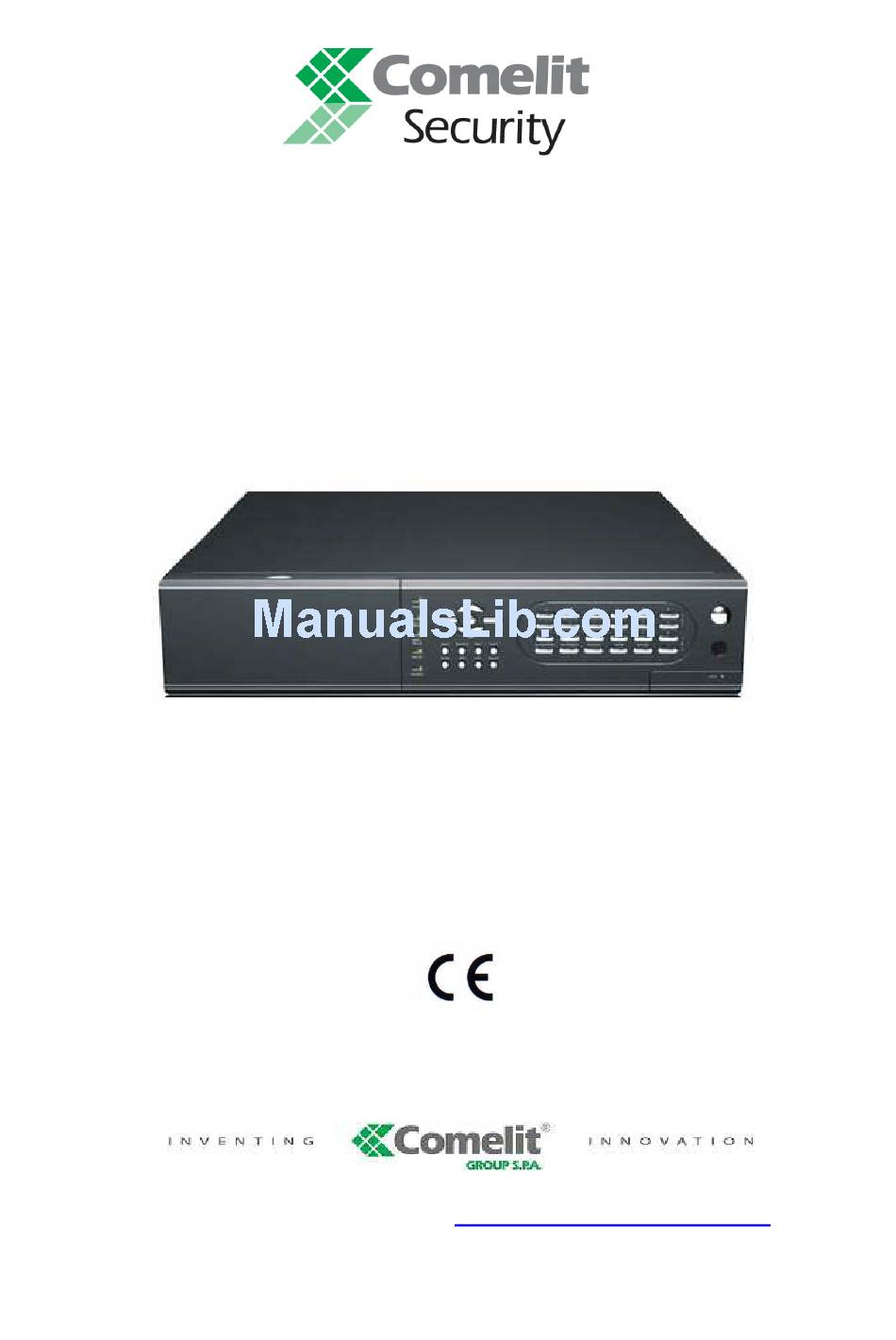

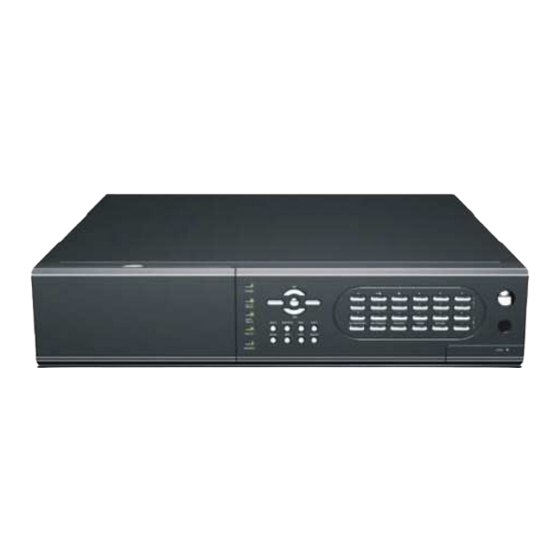

- Page 1 16 INPUTS STANDALONE H264 DIGITAL VIDEO RECORDER ART. 49136 Please read this manual thoroughly before use and keep it for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...
-
Page 2: Compliance Notice Of Fcc
MEASURES. The information in this manual is believed to be accurate as of the date of publication. Comelit Group S.p.A.. is not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or... -
Page 3: Important Safeguards
Important Safeguards 1. Read Instructions 14. Damage requiring Service All the safety and operating instructions should be read before the Unplug this equipment from the wall outlet and refer servicing to appliance is operated. qualified service personnel under the following conditions: A. -
Page 4: Table Of Contents
Table of Contents 1. Product Overview················································································ 1.1 Features·························································································· 2. Panels And Remote Controller····························································· 2.1 Front Panel······················································································ 2.2 Back Panel······················································································ 2.3 Remote Controller············································································ 3. Installations························································································· 3.1 Basic Connections············································································ 3.2 Optional Connections······································································· 4. Main Screen And Basic Operations······················································· 4.1 Text Input························································································ 4.2 Login And Logout············································································ 4.3 Basic Operations··············································································... - Page 5 6.10.2 Advanced Network Setup························································ 7. PTZ Control························································································· 8. Search/Playback/Archive (Administrator/Supervisor) ························· 8.1 Search By Time··············································································· 8.2 Search By Event / Log Display·························································· 8.3 Search Archived Files······································································· 8.4 Playback/Archive For Search By Time··············································· 8.5 Playback/Archive For Search By Event·············································· 8.6 Playback For Archived Files····························································· 9.
-
Page 6: Product Overview
1. Product Overview The H264 digital video/audio recorders are designed for use within a surveillance system and are a combination of a hard disk recorder, a video multiplexer, and a web server. To achieve the highest inter-connectivity and inter-operability, this series of digital video/audio recorders are all based on industry-leading front-end to back-end surveillance infrastructure. -
Page 7: Panels And Remote Controller
2. Panels and Remote Controller 2.1 Front Panel 1. Front Door Conceal Hard Disk Tray (for IDE HDD only). 2. USB connector (USB) Connect to USB 2.0 compatible storage device, such as USB 2.0 disk drive, DVD+RW, card reader, etc. 3. - Page 8 9. CALL Button Press this button to switch to or return from full screen display of the focus camera in main screen display. In some dialogs, this button is used as a miscellaneous function key. 10. SEQ Button Press this button to switch to or return from SEQ display mode in main screen display. In some dialogs, this button is used as a miscellaneous function key.
- Page 9 21. Fast Backward Button ( Press this button for fast backward playback. 22. Play/Pause Button ( Press this button to play the recorded images or pause the playback. 23. Stop Button ( Press this button to stop the playback. 24. Single Step Button ( Press this button to play the recorded images frame by frame.
-
Page 10: Back Panel
2.2 Back Panel 1. Video Input Connectors (1-16) Connect system cameras to these BNC connectors. The corresponding 75 termination （see # 5）must be made unless the video output terminal is connected. 2. Video Output Connectors (1-16) Connect these BNC connectors for looping the corresponding camera video inputs. 3. - Page 11 11. RS-422/485 Selector Switch Used to select RS-422/485 4-line or 2-line. 12. RS-422/485 Connector Connect this connector to RS-422/485 compatible PTZ camera(s). Please set the Selector Switch correctly. Please refer to the manuals that come with the RS-422/485 compatible devices for the correct settings. 13.
-
Page 12: Remote Controller
2.3 Remote Controller The remote controller is an accessory to ease the user’s operations. You can do all the operations by the remote controller instead of the buttons on the front panel. The effective distance is about 10 meters without any obstacle. The Buttons Each of these buttons corresponds to one of those buttons on the front panel. -
Page 13: Optional Connections
Cameras Connect the camera video input connectors to the video outputs from system cameras or other composite video sources via coaxial cables. Main monitor Connect the main monitor output connector (BNC) to a surveillance CCTV monitor. The CCTV monitor displays selected live or recorded cameras in any available split window format. - Page 14 Alarm outputs Connect the alarm outputs 1-2 to NC type of alarm signals, alarm outputs 3-4 to NO type of alarm signals. Ethernet Connect the Ethernet connector to a standard twisted-pair Ethernet cable for remote access via LAN or internet. Please make sure to setup the related configurations as described in Section 6.10 Network Setup.
- Page 15 Set this unit to 2-line For PTZ cameras Devices TxD- RS485- TxD+ RS485+ RxD- RxD+ MAIN-AUX monitor Please refer to the diagram below to connect the MAIN-AUX monitor output connector to a surveillance CCTV monitor or the MAIN-AUX monitor input connector of another digital video/audio recorder.
-
Page 16: Main Screen And Basic Operations
4.Main Screen And Basic Operations... -
Page 17: Text Input
The split-window screen, as shown above, is the main screen after system startup. There are several types of split-window screens, including 1-Window, 4-Window, 7-Window, 9-Window, 10-Window, 13-Window and 16-Window. The system will remember the last one before normal shutdown (as described in Section 5.7) of the system. -
Page 18: Login And Logout
4.2 Login And Logout There are three password levels in the system, including Administrator (highest), Supervisor, and Operator (lowest). If the user does not login the system, he/she will be treated as “Guest” and can only view live video display. The system allows up to 18 user accounts. - Page 19 Press this button to switch to or return from SEQ display mode. In SEQ display mode, each page in the sequence will be shown for the preset page dwelling time sequentially and SEQ icon will be shown on the lower-right corner of the screen. CALL In split-window display, press this button to switch to or return from full screen display of the focus camera.
-
Page 20: Digital Zoom
4.4 Digital Zoom The system supports X2/X4 Digital Zoom function. To use this function, press X2 button in full screen display to enter Digital Zoom mode. There will be a zoom window shown in the video window as shown. The zoom window (a) will always be shown at zoom factor X1, (b) can be shown or hidden at zoom factor X2 and (c) will never be shown at zoom factor X4. -
Page 21: Menu Display
5. Menu Display In split-window display, press MENU to call up Menu display as shown. There are a variety of displays under Menu display. In Menu display and all the subsequent displays, the items enabled are shown in black-colored text and those disabled in white-colored text. -
Page 22: Status Display
5.1 Status Display In Menu display, press ▲▼ to change the highlighted option to Status and then press ENTER to call up Status display as shown. Status display includes Alarm Recording Status, Normal Recording Status, Camera Status, Alarm Input Status, Product Serial Number and Product Version Number. Press ESC to escape from Status display and return to Menu display. -
Page 23: Video Adjustment
5.3 Video Adjustment In Menu display, press ▲▼ to change the highlighted option to Video Adjustment and then press ENTER to call up Video Adjustment display as shown. There are 4 items which can be adjusted, including Brightness, Contrast, Hue, and Saturation. The operations are as below: ▲▼... -
Page 24: Vga Display
5.4 VGA Display In Menu display, press ▲▼ to change the highlighted option to VGA Display and then press ENTER to call up VGA Display dialog as shown. There are 5 items which can be adjusted, including Resolution (1280x1024, 1024x768, 800x600, 640x480), Brightness, Contrast, Hue, and Saturation. -
Page 25: Backup Device
5.5 Backup Device In Menu display, press ▲▼ to change the highlighted option to Backup Device and then press ENTER to call up Backup Device display as shown below. The system supports a variety of USB 2.0 storage devices, including Storage Disk such as USB 2.0 storage disk drives and DVD Disc (including DVD+RW, DVD+R, and DVD-R) (DVD-RW is not supported). - Page 26 Restore Press ENTER when this item is selected to restore the configuration files in the corresponding USB device to this unit. Some USB 2.0 Devices Tested USB-Storage Enclosures 5.25” – Macpower’s Alumni Prefect USB 2.0 - PF-U2MS. USB-Disk Storage – Transcend’s JetFlash 150/V60 Series, Apacer’s Handy Steno AH220, Pretec’s i-Disk Wave 512M-Black...
-
Page 27: Software Upgrade (Administrator)
5.6 Software Upgrade (Administrator) In Menu display, press ▲▼ to change the highlighted option to Software Upgrade and then press ENTER to call up Software Upgrade display as shown. The operations are as below: ▲▼◄► Press these buttons to select the items. Press this button to escape from this screen and return to Menu display. -
Page 28: System Shutdown (Administrator)
5.7 System Shutdown (Administrator) In Menu display, press ▲▼ to change the highlighted option to Shutdown and then press ENTER to shutdown the system. A confirmation dialog will be shown on the screen, press ENTER to confirm the shutdown. The system will save all the files and all the states and then display a power-off message in the rolling screen message area. -
Page 29: Pre-Camera Setup
If the user wants to reset all the settings to factory default values, he/she may press ▲▼ to change the highlighted option to Factory Defaults and then press ENTER. A confirmation dialog will be shown, press ENTER again to make the changes, ESC to not do it. 6.1 Pre-Camera Setup In Setup Menu display, press ▲▼... - Page 30 Installed – whether this camera is installed or not. If installed, the following items will be settable. Press ENTER to check/uncheck this item. The default setting is “ˇ ˇ ˇ ˇ ” - checked. PTZ ID – the PTZ ID of this camera if it’s a PTZ camera. The PTZ ID has to be consistent with the setting of this camera.
-
Page 31: Camera Setup
6.2 Camera Setup In Setup Menu display, press ▲▼ to change the highlighted option to Camera and then press ENTER to call up Camera Setup display as shown. The Camera Setup allows the administrator to define the attributes for each camera. There are up to 16 cameras which can be connected to the system. - Page 32 Video Loss Settings.. – used to setup the action settings when video loss is detected for this camera. Press ENTER in Settings.. to call up Video Loss Setup display for the camera. Please refer to Section 6.2.1 for the details. Motion Detection –...
-
Page 33: Video Loss Setup
6.2.1 Video Loss Setup In Camera Setup, press ENTER to call up Video Loss Setup of the selected camera as shown when the highlighted option is Video Loss Settings.. of the camera to setup. The Video Loss Setup allows the administrator to define how the system responds to the detected video loss for the camera. -
Page 34: Motion Setup
Alarm Out – to define which Alarm Output will be triggered when video loss of this camera is detected. Press +/- buttons to select none (N/A) or one of the Alarm Outputs (1-4). Buzzer – to activate the internal Buzzer or not when video loss of this camera is detected. Press ENTER to check/uncheck this item. - Page 35 Press this button to escape from this screen and return to Camera Setup display. If the Save dialog is shown, press ENTER to exit and save, ESC to exit without saving. Following is a brief description for each item and its specific operations: Duration –...
- Page 36 Following is a brief description for the operations: Numeric Press these buttons to select the camera. ▲▼◄► Press these buttons to move the Mask window. Press these buttons to resize the Mask window. ENTER Press this button to set/reset the area under the Mask window. MODE Press this button to set/reset the whole video area.
-
Page 37: Alarm Setup
6.3 Alarm Setup In Setup Menu display, press ▲▼ to change the highlighted option to Alarm and then press ENTER to call up Alarm Setup display as shown. The Alarm Setup allows the administrator to define the attributes for each alarm input and the actions if it’s triggered. There are up to 16 alarm inputs which can be connected to the system. - Page 38 Duration – response duration to define at most how long (in seconds) the Alarm Out relay and the Buzzer will keep being triggered after this alarm input is triggered. However, the Alarm Out relay and the Buzzer will be reset immediately once this alarm input returns to normal.
-
Page 39: Seq Display Setup
6.4 SEQ Display Setup In Setup Menu display, press ▲▼ to change the highlighted option to SEQ Display and then press ENTER to call up SEQ Display Setup as shown. The SEQ Display Setup allows the administrator to define the display pages in SEQ Display for main monitor and call monitor. - Page 40 In Display Page Setup, the split window display for the current page is shown and the title of the camera for the focus window . Following is a brief description for the is highlighted operations: ▲▼◄► Press these buttons to move the focus window. Numeric (ENTER) Press these buttons to change the camera for the focus window.
-
Page 41: Scheduled Record Setup
6.5 Scheduled Record Setup In Setup Menu display, press ▲▼ to change the highlighted option to Scheduled Record and then press ENTER to call up Scheduled Record Setup as shown. The Scheduled Record Setup allows the administrator to define when and how to record for the system. -
Page 42: Hdd Setup
Motion – record mode (No, Video or Audio/Video) when motion is detected for certain camera. Press +/- buttons to change the value. Normal – normal record mode, including No, V (Video only) or A/V (Audio/Video). Press +/- buttons to change the value. 6.6 HDD Setup In Setup Menu display, press ▲▼... - Page 43 Following is a brief description for each item and its specific operations: Size (GB) – the total HDD storage in GB (Giga-Byte) for Alarm Record and Normal Record respectively. This item is just for information. Please refer to Section 6.6.1 more detailed information and setup of each individual HDD.
-
Page 44: Hdd Format/Clear
6.6.1 HDD Format/Clear In HDD Setup display, press MODE to call up HDD Format/Clear screen as shown. Each of the HDDs must be formatted before it can be used to record video/audio. The HDD Format/Clear screen allows the administrator to format and/or clear each HDD and set the size for Alarm Record partition and Normal Record partition for each HDD. -
Page 45: Password Setup
Note: If the HDD has not been formatted yet, it will be formatted and partitioned with default record size, 30% for Alarm record and 70% for Normal record. If it has been formatted (and recorded) before, it will be partitioned according to the Alarm Record Size (%) and Normal Record Size (%) displayed on the screen and the previously recorded contents will all be cleared. - Page 46 The Password Setup allows the administrator to add new users, delete existing ones and/or modify the user’s name, password and/or level. There are three password levels in the system, including Administrator (highest), Supervisor and Operator (lowest). The Operator can operate live video display, the Supervisor live video display, image playback and archive and the Administrator everything.
-
Page 47: System Setup
6.8 System Setup In Setup Menu display, press ▲▼ to change the highlighted option to System and then press ENTER to call up System Setup as shown. The System Setup allows the administrator to set the system time, time zone, time synchronization, language, etc. -
Page 48: Rs-232/422/485 Setup
TSP Server – TSP (Time Synchronization Protocol) server name if Time Synchronization is enabled. The system will try to do time synchronization with the specified TSP server at the system preset interval. Please follow the Text Input method described in Section 4.1 to modify this item. -
Page 49: Network Setup
Following is a brief description for each item and its specific operations: Baud Rate – press +/- buttons to change the value. Data Bit – press +/- buttons to change the value. Stop Bit – press +/- buttons to change the value. Parity –... - Page 50 Net Mask – Net Mask for the IP address. Please follow the Text Input method described Section 4.1 to modify these items. Gateway – Gateway IP address for the system. Please follow the Text Input method described in Section 4.1 to modify these items.
-
Page 51: E-Mail Setup
6.10.1 E-mail Setup In Network Setup, press ENTER to call up E-mail Setup as shown when the highlighted option is E-mail. The E-mail Setup allows the administrator to set e-mail related parameters. When an event occurs and E-mail is enabled for the corresponding action, an e-mail will be sent based on the parameters set here. -
Page 52: Advanced Network Setup
Mail To #1-5 – the receivers’ e-mail addresses. The system can send the e-mails originated from the triggered events to up to 5 different receivers. Please follow the Text Input method described in Section 4.1 to modify these items. 6.10.2 Advanced Network Setup In Network Setup, press ENTER to call up Advanced Network Setup as shown when the highlighted option is Adv.. -
Page 53: Ptz Control
7. PTZ Control The digital video/audio recorder supports a variety of PTZ cameras. The user can easily control the PTZ cameras through the operations described in this Chapter if those PTZ cameras have been connected and setup correctly. Please refer to Section 3.2 Optional Connections for the connections. -
Page 54: Search/Playback/Archive (Administrator/Supervisor)
Miscellaneous function specific operations: Active function Operations Descriptions Focus focus far/near ENTER auto focus Iris Iris increase/decrease Auto Pan (3) Auto pan speed is shown in parenthesis increase/decrease speed ENTER start/stop Auto Pan set start position set end position SEQ (5 sec.) SEQ dwell time is shown in parenthesis. -
Page 55: Search By Time
8.1 Search By Time The screen for Search By Time is shown on the right side. The Status field will show the ‘Recorded from’ time based on the selected Video/Audio before searching - alarm partition if any of Alarm, Motion or Video Loss, is checked and normal partition if Normal is checked. -
Page 56: Search By Event / Log Display
8.2 Search By Event / Log Display The screen for Search By Event - Log display, is shown below: There are four different types of event logs, including Alarm, Motion, Video Loss and System. Up to 3000 most recent event logs can be stored in the system. The general operations are as below: ▲▼◄►... -
Page 57: Search Archived Files
Following is a brief description for each item and its specific operations: Event Type – the type of the events (Record, Alarm, Motion, Video Loss, System) to be shown in the log list. The Event Type “System” includes all system related events, such as power on/off and will not trigger recording. -
Page 58: Playback/Archive For Search By Time
Following is a brief description for each item and its specific operations: USB Device – press ENTER to call up USB Device dialog (if there’s no USB device connected). Disk Storage – to select the disk storage to search the archived files. Press +/- buttons to select the available storage. - Page 59 Fast Backward Button ( Press this button for fast backward playback. Each time this button is pressed, the backward playback speed will become faster, from 2X, 4X, 8X, up to 64X and then back to 2X. Single Step Button ( Press this button to play the recorded images frame by frame.
-
Page 60: Playback/Archive For Search By Event
Backup Speed – 1-9, with 1 the lowest speed, 9 the highest speed. Press +/- buttons to select the value. Directory – the directory in the backup device to store the archived files. Please follow the Text Input method described in Section 4.1 to input the directory. Cameras –... -
Page 61: Remote Access
The Other Buttons All the other buttons are the same as in Section 4.3 Basic Operations. 9. Remote Access The digital video/audio recorder can be accessed by using a web browser installed on a PC if this unit is connected to a network, either internet or intranet. Before Logging On Before accessing this unit through web browser, please make sure the followings (for most PCs, only step 3 &... - Page 62 Logon After the above-mentioned items have been done correctly, restart your web browser and enter the domain name or IP address of the digital video/audio recorder in the Location/Address field of the web browser. The plug-in software in the system will be downloaded and run automatically in the web browser.
- Page 63 In video window, right-click the mouse button to call up Camera/Playback/Print Dialog. (Left) click on Playback or Camera number to change the window to the corresponding camera and live/playback mode. The user may also click on the “Print” button to print the video to the printer.
- Page 64 PTZ control panel. If the camera in the focus window is a PTZ camera, these buttons in the PTZ control panel can be used for PTZ control. The operations include Tilt Up/Down, Pan Left/Right, Zoom In/Out, Focus Near, Focus Far, Iris – (darker), Iris + (brighter). Camera Status indicators for cameras 1-16 (GREEN for normal, RED for motion) for the DVR.
- Page 65 select it. Click on the OK button to search the recorded video/audio for the highlighted event log. Now, you may use the playback buttons to play the recorded video/audio. Click on this icon to call up search-PC-video dialog. Please select the file and then click on Open.
- Page 66 Click on this icon to call up remote Software Upgrade dialog. Please select the DVR device and upgrade file in the PC and then click on Start button to start the software upgrade process. The Upgrade status will be updated according to the progress. When the upgrade file is uploading, the user may click on Stop/Close button to stop the upgrade process.
-
Page 67: Pda/Mobile Phone Remote Access
10. PDA/Mobile Phone Remote Access The digital video/audio recorder can also be remotely accessed by using a web browser installed on a PDA or mobile phone that (1) supports xHTML and MJPEG file format and (2) has screen resolution at 320x240 or above. Please enter the domain name or IP address of the digital video/audio recorder in the Location/Address field of the web browser and the remote login display will be shown (for most of the mobile devices, the DVR will automatically redirect to the correct web page, EX. -
Page 68: Appendix A--Ms-Windows Hemplayer
Appendix A--MS-Windows HemPlayer There are several MS-Windows utility programs in the bundled CD, HemPlayer, KCtrl Simulator and AVI Converter. The HemPlayer is meant to play archived/backed up files on local PC. The AVI Converter utility converts H.264 files to standard *.AVI files. Please insert the CD in the CD-ROM or DVD-ROM drive in your PC and then double click on Setup.exe vcredist_x86.exe... - Page 69 To select an archived file for playback, please click on File menu and then select Open. After an archived file is opened, the user may click on the player buttons to play the file. The following diagram shows the screen after the Play button is pressed. The user may print the whole player screen (including the current video image) or the current video image by selecting File menu and then select Print or Print Video respectively.
-
Page 70: Appendix B--The Mouse Operation Interface Reference
To select the DVR to control, please click on the button as circled in the above diagram to set the corresponding DVR ID. Please note that the RS-232/422/485 setup (Section 6.9), including the DVR ID, in the DVRs must be configured correctly (Model must be set as Control Protocol). Please use the buttons MAIN-AUX ON, MAIN-AUX OFF, CALL-AUX ON, CALL-AUX OFF to switch on/off the output of the controlled DVR. -
Page 71: Motion Detection Setup
Menu Search Escape Sequence Fold tools Fast backward Fast forward Step forward Unfold tools Play/Pause Stop Copy Alarm reset Live/Playback Full screen Volume Page up Page down Close Motion detection setup －＞ Setup－＞ －＞ Camera－＞ －＞ Motion setting－＞ Detection setting. －＞... - Page 72 Set/Reset Set/Reset Sensitivity Test highlighted area whole area PTZ setup The function is as follows in the PTZ controls the appearance Go to Figure down Zoom Figure up Preset Focus Auto Focus Iris position Auto pan Speed Mark Video adjustment icons This camera default All camera default Default...
- Page 73 Common icons Down Enter Code Left Right Delete Back space Confirmed Space Mark Reduce/Add Numeral key...
-
Page 74: Appendix C - Specifications
Appendix C – Specifications O.S. Embedded Linux 2.6 Sixfold operation - simultaneous record, live, System Multiplex playback, backup, control, & remote access Certification FCC, CE, LVDS Format NTSC/EIA or PAL/CCIR Input 16-CH, BNC, 1Vp-p/75ohm BNC x 1, S-video x 1, 1Vp-p/75ohm Main monitor Optional VGA D-SUB 15-pin connector Main-AUX... - Page 75 Input 16 contact or TTL/CMOS signal, polarity selectable Output 2 Normally Open, 2 Normally Closed relay output Alarm Buzzer Triggered by Sensor input, Video loss, & Motion Event log Ethernet 1 RJ-45 10/100BaseT Ethernet connector Remote setup, monitoring, backup, alarm notification, 1 Internet Exlporer for up to 4 DVRs E-mail Alarm notification to stationary or mobile devices...
-
Page 76: Appendix D - Recording Table
Appendix D – Recording Table NTSC Recording Time (in Hour) - For Reference Only System Storage (GB): 200 Average Recording Rate (IPS) Resolution Quality Picture Size (KB)* 120 60 720x480 32.2 (Full D1) 27.7 21.0 18.4 14.0 11.3 1443 1984 514 1029 1543 3086 720x240... - Page 77 PAL Recording Time (in Hour) - For Reference Only System Storage (GB): 200 Average Recording Rate (IPS) Resolution Quality Picture Size (KB)* 100 50 12.5 720x576 42.0 36.0 (Full D1) 27.3 21.3 18.3 14.7 10.0 1389 1903 946 1478 2955 21.0 720x288 (Half D1)
- Page 80 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...
