Summary of Contents for Comelit 49163

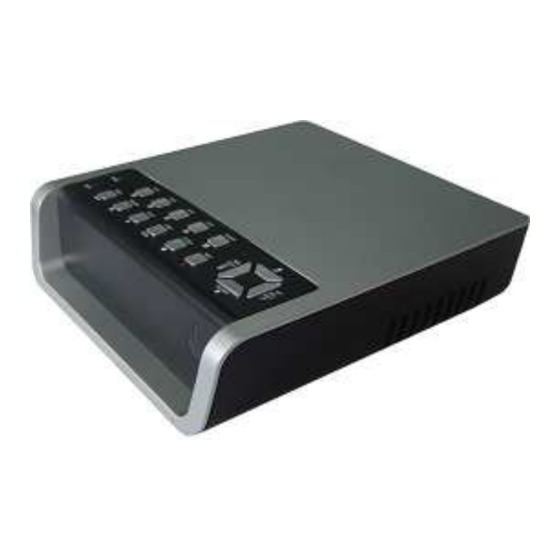

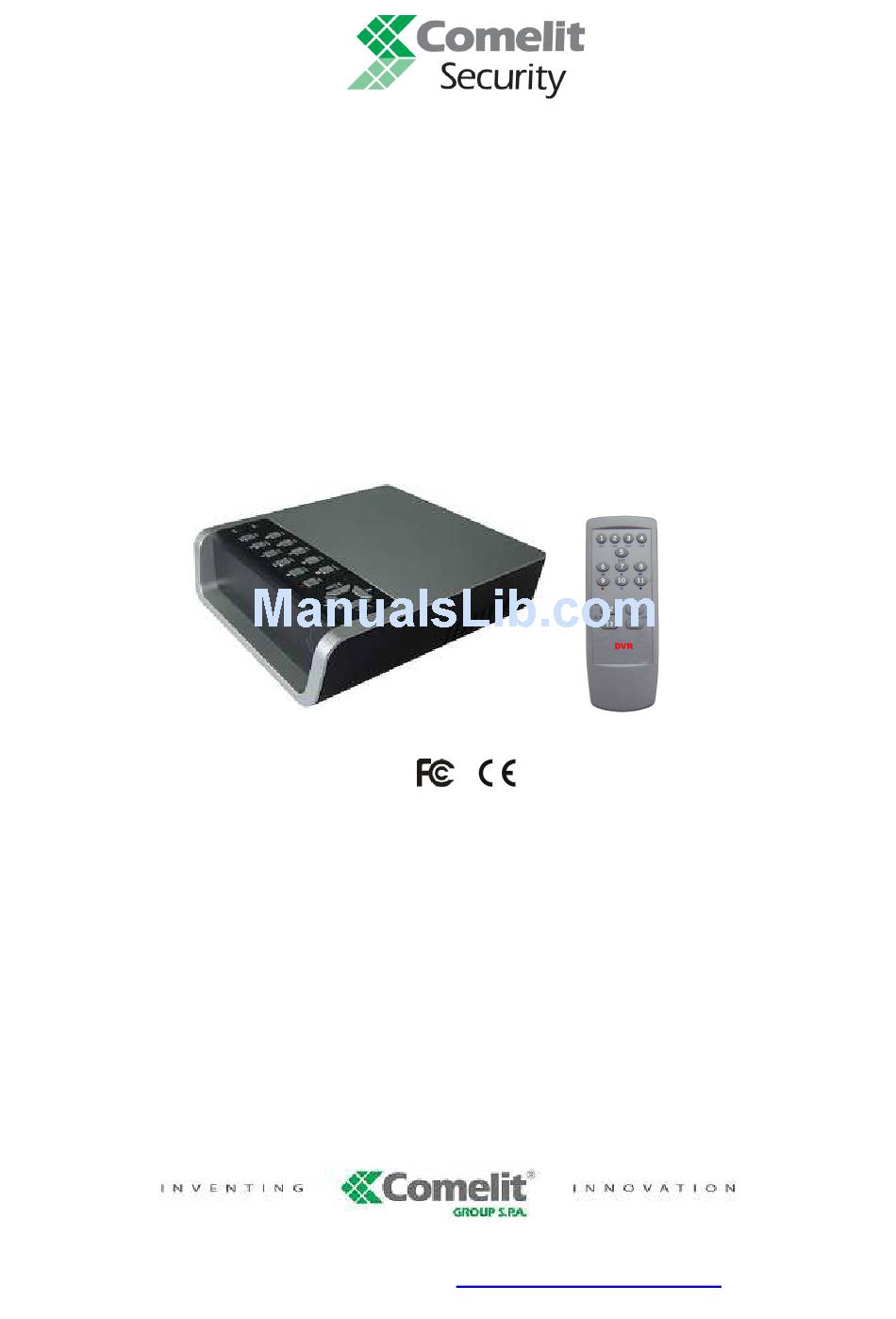

- Page 1 4 INPUTS STANDALONE DIGITAL VIDEO RECORDER ART. 49163 Please read this manual thoroughly before use and keep it for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it...
-
Page 2: Explanation Of Graphical Symbols
WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION Explanation of graphical symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 FCC INFORMATIONS: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USE AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT ISTALLED AND USED IN ACCORDANCE WITH INSTRUCTIONS,...
- Page 4 READ AND KEEP THESE INSTRUCTIONS and unused for long periods of time, unplug it Please read this manual thoroughly before use from the wall outlet and disconnect the and keep it for future reference. antenna or cable system. This will prevent damage to the equipment due to lightning and CLEANING power line surges.
-
Page 5: Table Of Contents
DIRECTORY DVR Features ......................Outlook ........................2.1. Front Panel ..........................1 2.2. Rear Panel ..........................1 2.3. Remote Controller........................2 DVR Installation ......................3.1. Hard Disk Installation......................2 3.2. Camera and Monitor Connections..................3 3.3. Power Cord Connection......................3 DVR Initialization ...................... 4.1. -
Page 6: Dvr Features
1. DVR Feature 4 Channel BNC camera input. 1 Channel BNC monitor output. NTSC / PAL optional. Video loss prompt. Motion detection with area setting. Connect PC with USB 2.0 Port. One ATA-100 Hard Disk interface, support over 80Gbyte (2.5 inch). Time Schedule record / Motion Triggered record. -
Page 7: Remote Controller
2.3 Remote Controller 1.CH1 Select or enlarge CH1 2.CH2 Select or enlarge CH2 3.CH3 Select or enlarge CH3 4.CH4 Select or enlarge CH4 5.QUAD Quad View 6. REW Rewind 7.PLAY Playback 8.FWD Forward 9.RECORD Record (increase value) 10.PAUSE Pause 11.STOP Stop recording or playing (reduce value) 12.MENU Enter or exit setup menu... -
Page 8: Camera And Monitor Connections
3.2 Camera and Monitor connections There are 4 camera video input and 1 monitor video output with BNC connector. 3.3 Power Cord connection Please use the power adapter supplied with DVR. 4. DVR Initialization 4.1 Detect Installed Hard Disk After connecting the power, system will detect installed hard disk. -
Page 9: Main Screen
4.3 Main Screen At start DVR verify the video inputs and . show the four cameras on the monitor. Upper left ratio of HDD used. Middle channel name (CH1～CH4). Bottom right date and time. DVR is waiting for key function, press“... -
Page 10: Camera Select
Menu Directory Camera Select Record Select Record Mode Record Frame Rate Main Menu Video Quality Auto Record Password Setup Record Schedule Password Change Sub Menu Picture Setup Time Setup Hard Disk Setup Language Setup Motion Setup Restore Factory Default 5.2 Camera Select DVR system can display 4 cameras and video in one picture (Quad Mode). -
Page 11: Record Mode
5.4 Record Mode There are two modes for video recording: Each Mode： ： ： ： Compress and record each video channel separately, therefore user can enlarge single channel video to full screen display. Moreover, for example, user can turn off record function of CH1 and CH2 and then the system record CH3 and CH4 video only. -
Page 12: Record Schedule
5.7 Record Schedule User can setup video record method by time or Motion triggered. Note: To start motion record or sensor record, make sure the period that you intend to record is “A” in the “record schedule” menu. “-” No Record. RECORD SCHEDULE “T”... -
Page 13: Sub Menu－Picture Setup
5.11 Sub Menu - Picture Setup HUE: 0-99 SATURATION: 0-99 CONTRAST: 0-99 BRIGHTNESS: 0-99 Button function: 「 Up」 「 Down」: to move the cusor 「STOP」: reduce Value 「REC」: increase Value 「CH1-CH4,QUAD」: select channel 「 Menu」: save and exit. 5.12 Sub Menu - Time Setup Press 「... -
Page 14: Hard Disk Setup
5.14 Hard Disk Setup OVERWRITE ENABLED : HARD DISK SETUP If you choose YES, recording continues and overwrite ＞ ＞ ＞ ＞ OVERWRITE ENABLED [YES] HDD SIZE 120042MB HDD USED 80865MB previous recording when hard disk space is full. HDD FORMAT If you choose NO, the recording session stops when all PRESS（... -
Page 15: Ntsc/Pal Output Select
MOTION DETECTION SETUP: First step: user need setup video record method by Motion Triggered (A). Please make reference to paragraph 5.7. CHANNEL 1 4 - SENSITIVITY : MOTION DETECTION SETUP User can press “ Sel” to adjust sensitivity grade of Motion CHANNEL 1 SENSITIVITY CHANNEL 2 SENSITIVITY CHANNEL 3 SENSITIVITY... -
Page 16: Restore Factory Default
5.17 Restore Factory Default Press “EDIT” button to make the system load factory default. 6. Record 6.1 Start Recording Press “ Rec ” to start recording. System will display some information on screen. Only EACH MODE can enlarge single channel to full screen display QUAD 2008/07/01 1 Hard Disk usage ratio. -
Page 17: Stop Recording
6.2 Stop Recording Press “ Stop”, and if “password setup” is ON, system will prompt to input password. Only correct password can stop recording process. 6.3 Forced Record mode When the time correspond to the record schedule is “-”, please press and then hold the “REC” button over 3 seconds to enter the DVR in forced record mode. -
Page 18: Recording Length
6.4 Recording Length Estimate record time base on 120G Byte HD (Quad Mode). Unit : Hour Format Quality ↓ Frame Rate (Y) HIGH (X= 20 kB/frame) 1748 NORMAL (X= 15 kB/frame) 2330 (X= 12 kB/frame) 2913 Format Quality ↓ Frame Rate (Y) HIGH (X= 20 kB/frame) 1748... -
Page 19: Playback
7. Playback Press “ Play” then system will playback the last data that hasn’t been playback. If at this point we press 「 Menu」 button, the system will show the list of all recorded video clip (newest video will be at top of the list). Press “ Up”... -
Page 20: Installation
8.1 Installation 1. Put the USB Driver Program CD in your computer 2. Go for installing by SETUP 3. Set up the install directory 4. For execute: click on start Programs Dvr Viewer 8.2 Program Interface Connect the USB cable to PC ( System will detect the HDD automatically). Run the program (Double click on the icon “... -
Page 21: Button Function
8.3 Button function 1 Save Frame 2 Save Video Clip 3 Configuration 4 Printer 5 Event List 6 DVR/PC mode 7 Channel 2 8 Channel 1 9 Quad mode 10 Channel 3 11 Channel 4 12 Fast backward 13 Backward one frame 14 Backward play 15 Pause 16 Play... - Page 22 Press to open [JPG/BMP Capture] and select file type. Find the position you want to capture, make sure that the viewer is in PAUSE mode. During playing the video in the list, in PAUSE mode you can press [Save Video Clip] to save video to PC in MYS or AVI format.
- Page 23 Press to print the picture of DVR’s playback. Press to open the event/record video list. The device can store 191 pieces of events at most. - 18 -...
- Page 24 Press to change to the PC mode. Then Press to open the video in MYS format for playing back. Press to play the video . Press the key [F1] on the keyboard to look over the version of current software. - 19 -...
-
Page 25: Specification
9. Specifications ITEM DESCRIPTION NOTE Video Format NTSC / PAL Operation System None STAND-ALONE Camera Input Channel 4 – BNC composite video channel Video Output Channel 1- BNC composite video channel NTSC 120 frames/second 4 x 30 frames/second Display Frame Rate 100 frames /second 4 x 25 frames/second Recording Frame Rate... -
Page 26: Appendix
10. Appendix 10.1 Connection example 10.2 Accessories in equipment Power adapter USB cable with driver CD Remote control User manual - 21 -... - Page 27 - 22 -...
- Page 28 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelit.it – E mail: export.department@comelit.it - 23 -...
