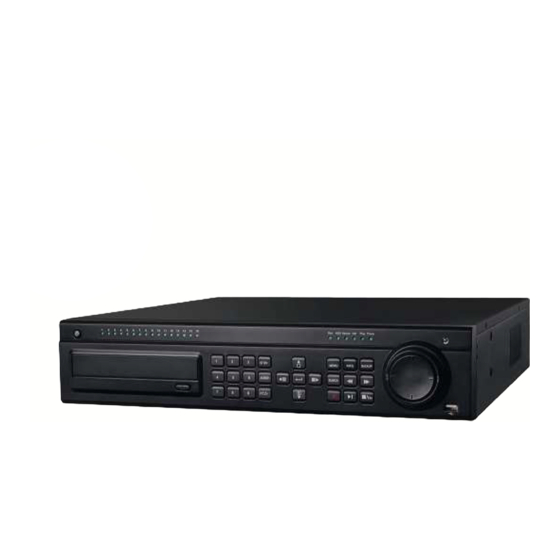

Comelit HDDVR0400A User Manual

Hd-sdi stand-alone dvr, 4 / 8 / 16 channels
Hide thumbs

Advertisement

Quick Links

Download this manual
HD-SDI STAND-ALONE DVR, 4 / 8 / 16 CHANNELS
ART. HDDVR0400A / HDDVR080A / HDDVR160A
Please read this manual thoroughly before use and keep it for future reference
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
http://www.comelitgroup.com
e-mail:export.department@comelit.it

Advertisement

loading

Related Manuals for Comelit HDDVR0400A

Summary of Contents for Comelit HDDVR0400A

  • Page 1 HD-SDI STAND-ALONE DVR, 4 / 8 / 16 CHANNELS ART. HDDVR0400A / HDDVR080A / HDDVR160A Please read this manual thoroughly before use and keep it for future reference Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
  • Page 2 CAUTION Please read this user manual carefully to ensure that you can use the device correctly and safely We do not warrant all the content is correct. The contents of this manual are subject to change without notice This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified before using.

  • Page 3: Main Features

    Main Features COMPRESSION FORMAT Standard H.264 compression with low bit rate and better image quality LIVE SURVEILLANCE Support VGA /CVBS/HDMI output Support 4/ 8/ 16 channel SDI video input Support channel security by hiding live display Display the local record state and basic information Support USB to make full control RECORD MEDIA 4 channel HD DVR support 2 SATA HDD installed inside...
  • Page 4 Front Panel Instructions Notice: The pictures are only for reference; please make the object as the standard. Front Panel of art. HDDVR040A Label Name Description Connect USB thumb drive or mouse POWER Power indicator REC / FOCUS Manual record / FOCUS adjustment(PTZ) Play / IRIS Enter Playback/ IRIS adjustment (PTZ) REW / ZOOM...

  • Page 5: Rear Panel Instructions

    1. The Front Panel interface for art. HDDVR080A / HDDVR160A is shown as below: Type Name Description When recording, the light is blue When HDD is writing and reading , the light is blue Backup When backup files and data, the light is blue Work state When access to network , the light is blue...
  • Page 6 Fig 2-3 Rear Panel for art. HDDVR080A Fig 2-4 Rear Panel for art. HDDVR160A Item Name Description HD SD Video in HD SDI video signal inputs. Alarm in Alarm Inputs for connecting sensors HDMI port Connect to high-definition display device VGA port VGA output, connect to monitor Network port...
  • Page 7 Button Function Switch off—to stop DVR. Use it before turning off the power Power Button Record Button To record manually -/-- /0-9 Digital Button Input number or choose camera Fn1 Button Unavailable temporarily Multi Button To choose multi screen display mode Next Button To switch the live image To enter into auto dwell mode...
  • Page 8 Users can change some value by the wheel, such as time. Move cursor onto the value, and roll the wheel when the value blinks. It supports mouse drag. I.e. Set motion detection area: click customized, hold left button and drag to set motion detection area.
  • Page 9 Basic Function Instruction Power On/Off Before you power on the unit, please make sure all the connection is good. 2.1.1 Power on Step1: connect with the source power; switch on the power button near the power port in the rear panel Step2: the device will start to boot, and the power indicator will become blue Step3: before start, a WIZARD dialogue box will pop-out (refer to below picture) and show some information about time zone and time setup, IP information, record quick setup and HDD information page.
  • Page 10 Live preview Fig 3-2 live preview interface The explanation of symbol in the live preview interface: symbol meaning symbol meaning Alarm in trigger Green Manual record record Yellow Motion detection record Blue Schedule record 2.3.1 Live playback Click Play button to playback the recorded video. Refer to Figure3-3. User can do concrete operation by click the buttons on screen.
  • Page 11 Fig 3-3 live playback Item Function Description Playback process bar Last/next segment of record and time process Play/ Pause / Stop / frame forward / fast forward Playback basic function / fast rewind 4ch:1/ 4, 8ch:1/ 4/ 6/ 9/ 1+5/ 1+7, Display mode 16ch:1/ 4/ 6/ 9/ 16/ 1+5/ 1+7/ 1+12 Zoom...
  • Page 12 Click Menu button, the interface will pop-up as Fig 4-2; press MENU button on the front panel or operate with remote controller also can display the main menu. Main OSD Fig 4-2 system setup Basic configuration Basic configuration includes three sub menus: system、date& time and DST. 3.1.1 System Step1: enter into system configuration basic configuration system;...
  • Page 13 Fig 4-3 basic configuration-basic Step2: in this interface user can setup the device name, device ID, video format, max network users, VGA resolution and language. The definitions for every parameters display as below: Device name: the name of the device. It may display on the client end or CMS that help user to recognize the device remotely.
  • Page 14 Live configuration Live configuration includes four submenus: live, host monitor, SPOT and mask. 3.2.1 Live In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast. Step1: enter into system configuration live configuration live; refer to Fig 4-6: Fig 4-6 live configuration live Step2: tick off camera name;...
  • Page 15 Step4: selected the split mode, then setup current picture group. Click button to setup the previous channel groups of dwell picture, click button to set the latter channel groups of dwell picture. Step5: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.
  • Page 16 Setup mask area Notice: The mask area will not be recorded on DVR. Please use this function carefully. Live image mask area Record configuration Record configuration includes five sub menus: enable, record bit rate, time, recycle record and stamp. 3.3.1 Enable Step1: enter into system configuration record configuration enable;...
  • Page 17 3.3.2 Record stream Step1: enter into system configuration record configuration record bit rate Step2: setup rate, resolution, quality, encode and max bit stream Step3: user can setup all channels with same parameters, tick off “All”, then to do relevant setup. Step4: click “default”...
  • Page 18 Post-alarm record: set the post recording time after the alarm is finished, five options: 10s、15s、20s、30s and 60s. Expire time: the hold time of saved records. If the set date is overdue, the record files will be deleted automatically. Step2: user can setup all channels with same parameters, tick off “all”, then to do relevant setup. Step3: click “default”...
  • Page 19 3.3.4 Stamp Stamp：User can overlap the channel name and time stamp on video. Step1: enter into system configuration record configuration stamp; refer to Fig 4-13: Fig 4-13 record configuration-stamp Step2: tick off camera name, time stamp; click Set button, user can use cursor to drag the camera name and time stamp in random positions, refer to below Figures: Before drag after drag...
  • Page 20 Step1: enter into system configuration schedule configuration schedule; refer to Fig 4-14: Fig 4-14 schedule configuration-schedule Step2: select channel, double-click and a dialog box will pop-up as Fig 4-15, user can edit week schedule: Fig 4-15 schedule-week schedule Click “add” button to add a certain day schedule; click “delete” button to delete the selected schedule; Copy: user can copy the specify schedule to other dates.
  • Page 21 Note: the default schedule of motion detection is full-selected, that is, the color of schedule setting interface is blue. 3.4.3 Sensor Step1: enter into system configuration schedule configuration alarm; refer to Fig 4-17: Step2: the setup steps of alarm are familiar with schedule; user can refer to 4.4.1 Schedule for details. Note: the default schedule of sensor is full-selected, that is, the color of schedule setting interface is blue.
  • Page 22 Step2: select hold time, click Trigger button, and a dialog box will pop-up as Fig 4-20: Fig 4-20 alarm handling-trigger Step3: tick off Buzzer, there will be triggered buzzer alarm out; Full screen alarm: when triggered alarm, there will pop up full screen alarm; To alarm out: tick off the channel, there will be triggered alarm out in the designated channel.
  • Page 23 Fig 4-22 alarm configuration-motion Step2: enable motion alarm, set alarm hold time which means time interval between two adjacent detective motions. If there is other motion detected during the interval period which is considered continuous movement; otherwise, it will be considered that those two adjacent detective motions are two different motion events.
  • Page 24 Fig3-24 alarm configuration-schedule Step2: the setup steps of alarm schedule are familiar with schedule; user can refer to 4.4.1 Schedule for details. 3.5.3 Video loss Step1: enter into system configuration alarm configuration video loss; refer to Fig 4-25: Fig 4-25 alarm configuration-video loss Step2: the setup steps of video loss trigger are familiar with alarm handling;...
  • Page 25 3.5.5 Alarm out Alarm out includes three sub menus: alarm out, schedule and buzzer Alarm out Step1: enter into system configuration alarm out; refer to Fig 4-27: Fig 4-27 system configuration-alarm out Step2: in this interface, set relay alarm out name, select hold time which means the interval time between the two adjacent alarms.
  • Page 26 There are 3 different types to connect internet, please select an appropriate type to fit your network environment. 1. STATIC (FIXED) IP: Input IP address, subnet mask, gateway and DNS server manually. 2. DHCP : Check the "Obtain IP address automatically", the device will acquire IP address, subnet mask, gateway and DNS service.
  • Page 27 Parameter Meaning For 4 CH HD DVR CIF@7FPS, for 8 and 16 CH HD DVR CIF@30FPS Resolution Support CIF Quality The quality of the clients image. The higher the value is, the clearer the record image. Six options: lowest, lower, low, medium, higher and highest.
  • Page 28 3.6.4 Other settings Step1: enable DDNS server: user needs to input user name， password and host domain name of the registered website, click TEST to test the effectively of relevant information. Fig 4-32 network configuration-other settings STEP2: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current interface.
  • Page 29 ① General: Input user name, password; select user type: normal and advance, input the MAC address of the PC; click OK button, this user will be added into the user list box; click Exit button to exit the current interface. Note: when the default value of binding PC MAC address is 0, the user is not bind with the specify computer;...
  • Page 30 Advance Step1: enter into system configuration P.T.Z configuration advance; refer to Fig 4-37: Fig 4-37 P.T.Z configuration-advance Step2: in the Advance interface, click preset “Setting” button, a dialog box will pop-up as Fig 4-38: Fig 4-38 advance-preset setting a. in the preset set interface, click Setting button, a dialog will pop-up as Fig 3-39: Fig 3-39 preset set-setting b.
  • Page 31 Fig 4-40 cruise set a. click Add button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line, click Setup button, a dialog box will pop-up as Fig 4-41: Fig 4-41 cruise set-modify cruise line b.
  • Page 32 Record search & playback and backup Search configuration includes three submenus: time search, event search and file manager. Time search Step1: enter into Search configuration time search; refer to Fig 5-1: Fig 5-1 Search configuration-time search Step2: select channel, screen display mode, the highlight date in the calendar means have record data Step3: select a date, press Search button, click the time grid to set the play start time or input play record time manually.
  • Page 33 File manager Step1: enter into Search configuration file manager; refer to Fig 5-3: Fig 5-3 Search configuration-file manager Step2: click Search button, the searched files will be displayed in the file list box, user can select date, channels accordingly. Lock: checked a file, click Lock button to lock this file, after that, that file will not be deleted or covered. Unlock: checked a locked file, click Lock button to unlock this file Delete: checked an unlocked file, click Delete button to delete this file.
  • Page 34 Fig 5-5 backup information Step4: in the backup information interface, user can check the relevant information of backup files, storage type, save file type, etc. click Apply button to starting backup. Note: when the monitor resolution is VGA800*600, the file manager interface will appear a hide button, click this button, the whole interface can be expanded.
  • Page 35 5.1.3 Log information In this interface, user can check relevant log information according to set date; refer to Fig 6-3: Fig 6-3 log information 5.1.4 Network information In this interface, user can check relevant parameters of network; refer to Fig 6-4: Fig 6-4 network information 5.1.5 Online information In this interface, user can check the details of the current connection of online users;...
  • Page 36 5.1.6 Disk manager Step1: enter into disk manager interface; refer to Fig 5-7: Fig 6-7 disk manager Note: please format the hard disk before record. If not being formatted, it will show the status of the disk-free space, and total space show OM at the bottom of screen. Step2: click Refresh button to refresh the disk information of the list box;...
  • Page 37 Remote Surveillance Accessing DVR If making remote view, the DVR must connect with LAN or internet. Then enable network server in the unit. Please refer to 4.6 Network Configuration. This unit supports IE browser, without any client software installed. It supports Win 7, XP and Vista. 6.1.1 On LAN Step1: Input IP address, Subnet, Gateway.
  • Page 38 Step2: The following steps are the same as STEP4-7 of the connection way above. The remote live preview interface as below: Fig 7-2 Remote live preview interface Symbol and function Definitions: Channel Screen display Volume indicator mode Snapping Start manual record Start picture record...
  • Page 39 Drag the scroll bar to adjust the contrast of channel Drag the scroll bar to adjust the saturation of channel Drag the scroll bar to adjust the hue of channel Click this button to recover the default value of brightness, contrast, saturation and hue.
  • Page 40 Remote playback & backup 6.3.1 Remote playback Click button to enter into record playback interface, refer to Fig 7-5: Select the record date and channels; double-click the file name in the record file list box, user can play that file and preview the picture.
  • Page 41 Fig 7-7 Time search playback By Event Search: Step1: Enter into Search event search; refer to Fig 7-8: Fig 7-8 event search interface Step2: click the highlight date and select record channels and then tick off the event type: motion and sensor, click “search”...
  • Page 42 Fig 7-9 file management interface Lock: select certain file item in the file list box, click “Lock” button to lock this file that ca not be deleted or overlaid Unlock: select a locked file, click “unlock” button to unlock this file Delete: select an unlock file, click “delete”...
  • Page 43 Fig 7-11 remote menu setup The sub menu lists and the options in every item are similar with those on the DVR. Please refer to Chapter 3 Main Menu Setup Guide for more details. Click “Apply” button to save above settings; click “default” button will recover the original settings. Remote Management Remote Information Search The system will automatically record the working condition and operation process during the period of work.
  • Page 44 Mobile Surveillance This DVR supports mobile surveillance on Iphone and android OS device, this section describes the installation of the program via the smartphone 7.1 Installation procedure on Iphone device At present, the software only supports version of iPhone iOS 3.1.2 and above, if phone firmware lower than this version please upgrade it.
  • Page 45 Step 5: Just be patient to download and install. After installed, “SuperLivePro”, icon will display. Click this icon, a function interface will appear Step 6: Key in server’s IP address (or domain name), user’s ID and password. Click Login to process. Step 7: The default quad view window will be displayed.
  • Page 46 7.2 Installation procedure on Android OS smartphone On your smartphone click on the google play store icon Then press on search icon on right Type SUPERLIVEPRO with your virtual keyboard and press enter The search result will show the Click SUPERLIVEPRO, brief available applications...
  • Page 47 Click on ACCEPT & DOWNLOAD The program is being downloaded on your smartphone, please wait The program is being installed on your The installation is finished, click Open to smartphone launch the program,...
  • Page 48 Key your DVR IP, the username and You are connected to the DVR, you can password, if you want the program to keep see all the functions of the program in memory select REMEMBER SERVER, then click on LOGIN Main interface description Item Description Playback...
  • Page 49 Live picture interface Icon Description One screen Four screen Channel configure PTZ control Capture Record Talk Channel audio Hide Superlivepro...

  • Page 50: Appendix A Faq

    Appendix A Q1. Why the DVR cannot start after connected to the power? a. The adapter has been damaged. Please change an adapter b. The power of the adapter is not enough. Please remove the HDD to check c. Hardware problem Q2.
  • Page 51 Fig7-1 Fig7-2 Q8: How to deal with when DVR starts, it displays “please wait…”all the time First possible reason: hard-disk cable and data cable are not well connected. Solution: Please check the connection of hard-disk cable and data cable and make sure they are well connected;...
  • Page 52 Q12: What are the minimum configurations of PC for clients connecting? PC Module Parameters Intel Celeron 2.4G Motherboard Intel 845 512M NVIDIA GeForce MX440/FX5200 ATIRADEON 7500/X300 Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA/SEVEN DirectX Q13: What are the PC configurations for 8-ch real time product with fully open channel mainstream? PC Module Parameters Intel Core(TM)2 Duo CPU E4600...
  • Page 53 Appendix B Calculate Recording Capacity Users can calculate the required size of hard disk according to the total recording duration and DVR recording settings. The DVR uses fixed video bit rate. The below are the details at different settings for CBR. Frame Resoluti Rate...
  • Page 54 Appendix C Compatible Devices Compatible Devices Compatible USB drive after test. Brand Capacity A-DATA 512MB, 1G, 2GB Transcend Kingston Toshiba SanDisk 2. Compatible external USB CD/DVD writers after test Brand Model GH24NS90...

  • Page 55: Compatible Hdd

    3. Compatible HDD Brand Model number Capacity 1600AAJS FW:00L7A0 160GB 2500AVVS FW:73M8B0 250GB 3200AVVS 320GB 5000AVDS FW:63U7B0 500GB 5000AVJS FW:63YJA0 500GB 5000AVVS FW:63M8B0 500GB 5000AAKS FW:00V1A0 500GB 5000BUDT (2.5") FW:63G8FY0 500GB WESTERN DIGITAL 5000AUDX FW:63WNHY0 500GB 10EURS FW:630AB1 10EVDS FW:63U8B0 15EARS FW:00Z5B1 1.5TB 15EURS FW:63S48Y0...
  • Page 56 APPENDIX D DDNS setup procedure (Take www.geekciti.com as an example) Visit www.geekciti.com and register new account by filling each line then press submit, you need to have a valid email which will be use as username Create a domain name as your convenience and choose the extension among the list available, then click on REQUEST DOMAIN...
  • Page 57 If the domain exists already you will have to choose another domain name, if not you will see the below screen Fill all setting on DVR then click “Test” to verify. Then click “Apply” to Finish DVR network setting. (Menu-> Network ->...
  • Page 58 You can test with a computer with internet explorer browser by key in the new domain name You will see the DVR main page, after key in the username and password as well the display language, you should be able see camera live display...
  • Page 59 HDDVR040A specifications Compression format H.264 Main Profile Video output CVBS×1, HDMI×1, VGA×1 Video Input SDI×4 HDMI/VGA Resolution 1080P/1280*1024 /1024*768/ 800*600 Record Resolution 1080P(1920×1080) Display Frame Rate 100FPS (PAL), 120FPS (NTSC) Record Frame Rate 25FPS (PAL), 30FPS (NTSC) Audio Input RCA X4 Audio output RCA X1 Alarm Input...
  • Page 60 HDDVR160A specifications Compression format H.264 Video output CVBS×1, HDMI×1, VGA×1 Video Input SDI×16 HDMI/VGA Resolution 1080P/1280*1024 / 800*600 Record Resolution 1080P(1920×1080) Display Frame Rate 400FPS (PAL), 480FPS (NTSC) Record Frame Rate 200FPS (PAL), 240FPS (NTSC) Audio Input RCA X16 Audio output RCA X1 Alarm Input NO or NC 16CH...
