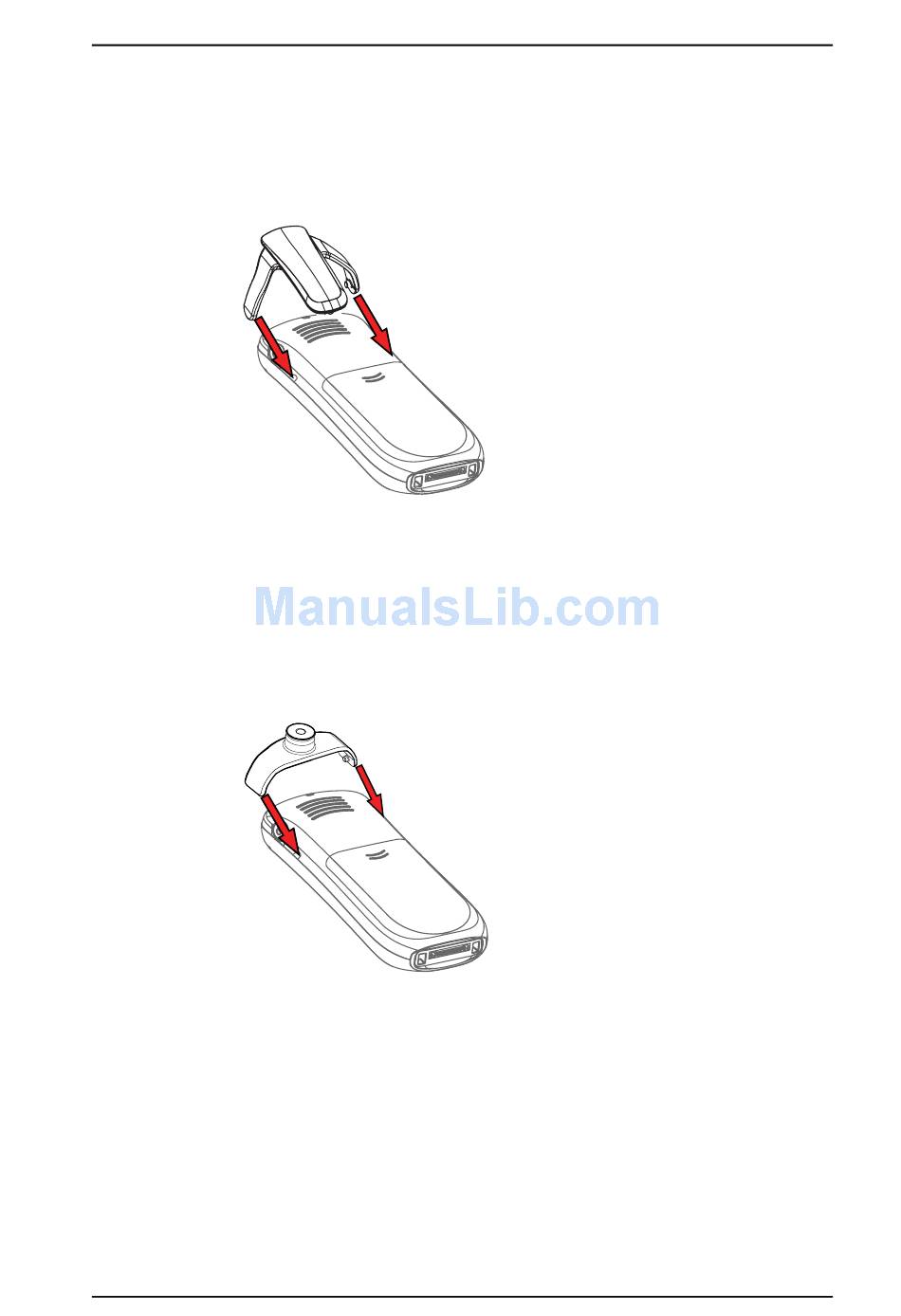

14.2 Attach the Hinge-type Clip

Attach the hinge-type belt clip as described in the illustration below.
Figure 8. Attach the hinge-type clip into position.

14.3 Attach the Swivel-type Clip

Attach the swivel-type belt clip as described in the illustration below.
Figure 9. Attach the swivel-type clip into position.

14.4 Easy Replacement

Easy replacement can be used if a handset needs to be replaced due to, for example, a
broken display.
Note: If the electrical connection is damaged, it is not possible to follow the Easy
Replacement procedure. Depending on fault, it might work to do a replacement via PDM/
IMS2. See Configuration Manual, Ascom d41 DECT Handset, TD 92641GB.
2009-12-15/ Ver. C
Figure 1.
TD 92582GB
47
