NAPCO Gemini GEM-P816 Programming Instructions Manual

Hide thumbs Also See for Gemini GEM-P816:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Publicly traded on NASDAQ
Symbol: NSSC

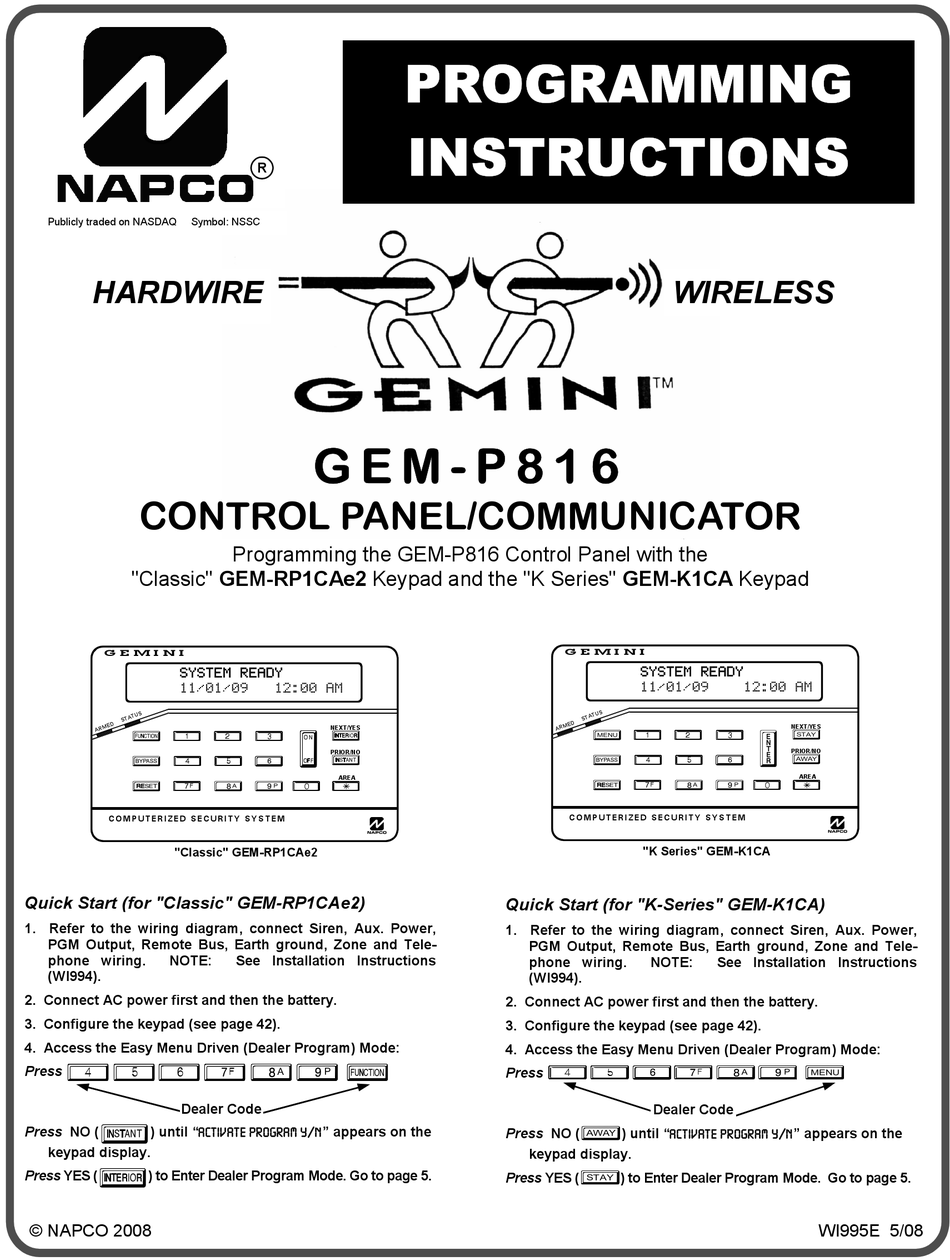

HARDWIRE
CONTROL PANEL/COMMUNICATOR

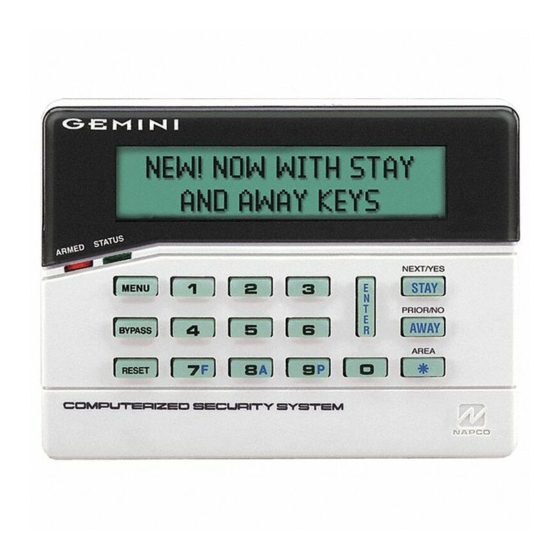

"Classic" GEM-RP1CAe2 Keypad and the "K Series" GEM-K1CA Keypad
G E M I N I
SYSTEM READY
11/01/09
A
1
B
4
C
7
C O M P UT E R I ZE D S E C U R I T Y SY S T E M
"Classic" GEM-RP1CAe2
Quick Start (for "Classic" GEM-RP1CAe2)
1. Refer to the wiring diagram, connect Siren, Aux. Power,
PGM Output, Remote Bus, Earth ground, Zone and Tele-
phone wiring.
NOTE:
(WI994).
2. Connect AC power first and then the battery.
3. Configure the keypad (see page 42).
4. Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789 A
Dealer Code
Press NO (
) until "ACTIVATE PROGRAM Y/N" appears on the
g
keypad display.
Press YES (
) to Enter Dealer Program Mode. Go to page 5.
F
© NAPCO 2008
R
G E M - P 8 1 6
Programming the GEM-P816 Control Panel with the
12:00 AM
NEXT/YES
D
2
3
E
PRIOR/NO
F
5
6
AREA
8
9 0
G
See Installation Instructions
PROGRAMMING
INSTRUCTIONS
G E M I N I
C O M P UT E R I ZE D S E C U R I T Y S Y S T E M
Quick Start (for "K-Series" GEM-K1CA)
1. Refer to the wiring diagram, connect Siren, Aux. Power,
PGM Output, Remote Bus, Earth ground, Zone and Tele-
phone wiring.
(WI994).
2. Connect AC power first and then the battery.
3. Configure the keypad (see page 42).
4. Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789 R
Press NO (
Q
keypad display.
Press YES (
P
WIRELESS
SYSTEM READY
11/01/09
12:00 AM
U
R
1
2
3
B
4
5
6
C
7
8
9 0
"K Series" GEM-K1CA
NOTE:
See Installation Instructions
Dealer Code
) until "ACTIVATE PROGRAM Y/N" appears on the
) to Enter Dealer Program Mode. Go to page 5.
NEXT/YES
P
PRIOR/NO
Q
AREA
G
WI995E 5/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini GEM-P816 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NAPCO Gemini GEM-P816

Summary of Contents for NAPCO Gemini GEM-P816

  • Page 1 ) until “ACTIVATE PROGRAM Y/N” appears on the keypad display. keypad display. Press YES ( ) to Enter Dealer Program Mode. Go to page 5. Press YES ( ) to Enter Dealer Program Mode. Go to page 5. © NAPCO 2008 WI995E 5/08...

  • Page 2: Important Note

    • Warning added to page 2 (see below). Warning: The use of non-NAPCO wireless devices with this control panel has not been evaluated by UL and voids the UL list- ing. In addition, the performance of these devices can not be guaranteed as compatible with NAPCO control panels.

  • Page 3: Table Of Contents

    Dealer Code ..............10 ALPHABETICAL INDEX ............46 Test Timer ..............10 Clear Dealer Program ..........10 ADDRESS NUMBER INDEX ...........51 Cold Start ..............10 GEM-P816 WIRING DIAGRAM ..........56 Refer to accompanying GEM-P816 Installation Instructions (WI994) for installation information. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 4: System Programming Options

    For direct high-speed data transfer to the control panel from a desktop computer, connect the download jack (JP2) on the panel to the LOCAL jack (J3) on the Napco PCI2000/3000 computer interface using the supplied 6- conductor cable. (Refer to PCI2000/3000 Installation Instructions WI443 for wiring diagram and procedures).

  • Page 5: Easy Menu Driven Program Mode

    Should it be necessary to create a new custom default pro- gram, (a) from the Dealer Program Mode, press the button to enter the Direct Address Program Mode; (b) access Location 2285 (Clear Program); (c) press the button and start over. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 6: Gem-Rp1Cae2/Gem-K1Ca Easy Program Menu

    Valid entries are from 01 to 16. Directly enter each zone number, including leading zeros. • Press to save and repeat for any additional zone(s); press the NEXT/YES button to proceed. (Direct Entry) NOTE: 24 Hour Zones will automatically be programmed as audible (Burg Output). NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 7: Chime Zones In Area 1

    Press YES to enable Telco Line Fault Test. Enable Telco • Line Test? Press NO to continue. NOTE: If enabled, a Telco Line Fault Test Delay of 60 sec. will auto- matically be programmed. (Press YES or NO) NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 8: Enable Burg Output Chirp On Keyfob

    02, with area 1 options of “Arm/Disarm” and blank(•) Service “User Program”. Enter “2222” for a user code, blank(•) Access blank(•) Ambush “• (blank) 9” for area 1 options. blank(•) Add 8 * User Program blank(•) Bypass Enable NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 9: Rf Transmitter Points

    NEXT/YES button to proceed when all keyfobs have been entered. NOTE: When programming the ID Code number, “0” through ”9” = through ; A = ; B = ; C = ; D = ; E = and “F” = NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 10: Keyfob Transmitters As Zone Input Devices

    Program new description as above. NOTE: Zone Descriptions can only be entered through the GEM-RP1CAe2 Keypad or by using the Napco Quickloader Software. See Easy Menu Programming Worksheet for available zone description characters.

  • Page 11: Direct Address Program Mode

    "bit numbers" 1,3,4 and 6, respec- tively. DETERMINE THE DATA ENTRIES 1. Referring to ZONE FEATURES in the Programming Worksheets that follow, the Exit/Entry Follower for Zones 1 through 8 are located at address 0916. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 12: Decimal Format Example

    2. Answer NO to all questions until “ACTIVATE PROGRAM Y/N” is displayed; then press YES. NOTE: If you pass “ACTIVATE PROGRAM”, scroll backward using 3. Press to enter the Address Program Mode. Address "0000" will display. 4. Press to access Address 1417. The existing data will display and the cursor will 1417 NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 13: Hexadecimal Format Example

    (•) ¼sec. = 1 sec. blank (•) ¼sec. = 1.25 sec. blank (•) ¼sec. = 1.5 sec. blank (•) ¼sec. = 1.75 sec. 2 seconds blank (•) ¼sec. = 2 sec. ¼sec. = 63.25 NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 14: Programming Conventions Used In This Manual

    It is recom- mended that the panel be uploaded to NAPCO's PCD-Windows software following any keypad programming and that the PCD-Windows's error-check feature be utilized to reduce the possibility of programming omissions or conflicts.

  • Page 15: System Delays & Timeouts

    1. Enter delay/timeout in corresponding address locations above. Note: All entries for address 1418 are in quarter seconds (.25 seconds). Therefore, the default of 008 results in a 2 second timeout. 2. Press to save. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 16: System Output Timeouts

    Pager report will now appear as “983 22 1234”. NOTE: See CS Receiver Options to select Pager Format. Leading Digits for Pager Format 1. Enter in 1st and 2nd Leading Digits as shown (right nibble). (2nd Digit) 2. Valid entries are: 0-9. Press to save. [Default = blank (•) blank (•)] NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 17 Address 2045 is not left blank (•), then the 2-digit Global Ambush Code is the two digits entered in address 2045. [Default = blank (•) blank (•)] Enter in address location (both 1st and 2nd digits); valid entries are 1-9. Press to save. NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 18 Page 18 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 19: System Options

    (in either STAY or AWAY RESERVED mode). ‡ RESERVED Not for UL Installations †† For reference only and cannot be changed. RESERVED § This feature must be programmed in Fire Alarm applications. RESERVED NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 20: Cs Receiver Options

    2. Enter up to 20 digits from left to right. NOTE: Leave trailing boxes blank (•). Press [Enter] to save. 3. Valid entries are: 1-9, B = button, C = button, D = 3 sec. pause, E = Wait for dial tone, F = Ignore location NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 21: Cs Subscriber Id Options

    1. Enter 3 or 4 digits (depending on the CS receiver format) for each subscriber number from left to right. NOTE: Leave trailing boxes blank (•). 2. Valid entries are: 1-9, 0 and B-F. NOTE: A is not permitted. Press [Enter] to save. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 22: Cs System Reporting Options

    Disable Wait for Handshake on Transmit * NOTE: If neither Touch-tone Dialing nor Touch-tone w/Rotary Disable Auto Dial Tone Detect Backup is selected, then system defaults automatically to Rotary Dialing. Leave blank (•) to select Rotary Dialing. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 23: Cs Zone Reporting Options

    MODEM CODES determine the zone types reported for the following formats: SIA and ADEMCO Point ID. Gas Alarm 1. Select the desired Modem Code for each zone from the table shown. Heat Alarm Auxiliary Alarm 2. Press to save. 24 Hour Auxiliary NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 24: Cs User Reporting Options

    Select the desired option entering the option number (1-8) for each digit. At the keypad, enter corresponding option number in address location. NOTE: Dark shaded data value box shows option not available. Press to save. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 25: Ezm Group Options

    Not used 9-12 blank (•) 1. Select EZM type from the table shown. (No EZM 13-16 present) 2. Enter either blank (•) or "1" in corresponding address locations 4-Zone EZM above. 3. Press to save. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 26: Area Bell Control Options

    Select options for any of the 4 Outputs. By default, the ability to turn off an output upon disarm is not allowed. Enter digit in address location. NOTE: Dark shaded data value box shows option not available. Press to save. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 27: Keypad Options

    Select the desired option entering the option number (1-8) for each digit. At the keypad, enter corresponding option number in address location. NOTE: Dark shaded data value box shows option not available. Press to save. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 28: Temperature Display At Keypad

    Note: If these three addresses are set and power (AC and battery) are subsequently removed, they keypad will indicate that the time and date are lost and will need to be reset. See WI1425 for more information. ‡ This feature not evaluated by UL. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 29: Zone Options - Zones 1 To 16

    Select the desired zone option by entering the option number (1-8) for each selected zone. located on the next Enter corresponding option number in address location. page. NOTE: Dark shaded data value box shows option not available. Press [Enter] to save. NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 30 ZONE #”. • Fire is enabled for the zone number(s) entered in “FIRE ZONES ENTER ZONE #”. • 2-Wire Smoke Detector is enabled for the zone number(s) entered in “2-WIRE FIRE ZNS ENTER ZONE #”. NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 31 Page 31 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 32 Page 32 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 33 Page 33 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 34 Page 34 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 35 Page 35 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 36: Rf Receiver & Supervisory Timer Options

    Type E Smoke Detector 2043 Type F Napco Glass Break 2044 [Default = blank (•) from address 2029-2044]. Default = 8 (240 minutes) NOTE: These timers apply only to Supervised RF Transmitters (see RF Transmitters in Easy Menu Driven Mode Programming).

  • Page 37: Clear Program Options

    User Program Mode. NOTE: For ease of programming, it is recommended that a GEM K1CA (or GEM-RP1CAe2) be used. See Keypad Configuration Mode. If a GEM-RP2ASe2/GEM-K2AS keypad is used, see WI1182. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 38: Accessing User Program Mode

    Enter the new User Code using the number buttons (0-9). If an old code is displayed, program over it. To erase the digit at the cursor, press button. Press the button to save the code in memory. Repeat this procedure for each user. To proceed to Zone-Description programming, press the NEXT/YES button or the PRIOR/NO button. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 39: Zone Descriptions

    MM=minutes (00–59). Select AM or PM by pressing any number button, then press (Direct Entry) once again to save. NOTE: To enter the date and time, GEM-RP1CAe2/GEM-K1CA keypad (version 9A or greater) must be used and “Enable Keypad Time/Date Display” (Address 1420) must be enabled. NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 40: Keypad Configuration Mode

    1. Enter the assigned keypad number 01–07, then press to save. A valid number will be acknowledged by a short beep; an invalid number will be re- jected by a long beep. 2. Press to continue or press to exit. NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 41 (the display will loop back through selec- tions, for changes) or press the button to exit the Keypad Configura- tion Mode (display will read “ ”). Then replace Jumper JP1 across Pins 1–2 (top two). 01 OUT OF SYSTEM NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 42: Easy Menu Programming Worksheets

    Page 42 EASY MENU PROGRAMMING WORKSHEET - 1 OF 3 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 43 EASY MENU PROGRAMMING WORKSHEET - 2 OF 3 RF Transmitter Points: XMTR # ZONE RF ID CHECK POINT (printed on xmtr box) Keyfob Transmitters: KEYFOB # Area RF ID CHECK OPTION 1 OPTION 2 (printed on xmtr box) NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 44 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Dealer Code: NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 45 Page 45 NOTES NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 46: Alphabetical Index

    AREA BELL CONTROL OPTIONS (ADDRESS 1473-1485) ......26 CONDITIONAL CLOSE, ADDRESS 0680 .............22 ARM ONLY CONFIGURING THE KEYPADS ................40 AREA OPTION ....................... 9 CONTROL PANEL FIRMWARE VERSION ............. 2 ARM/DISARM CREATE A CUSTOM PROGRAM ................6 AREA OPTION ....................... 9 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 47 DISABLE OPENING REPORTS, ADDRESS 0785 ..........22 ENTRY DELAY 2, ADDRESS 0002 ................15 DISABLE SYSTEM TROUBLE AUDIBLE TIMEOUT, ADDRESS 2051 ... 19 ENTRY/EXIT 1 (ZONE OPTION), ADDRESS 0914, 0978 ........29 DISABLE WAIT FOR HANDSHAKE ON TRANSMIT, ADDRESS 0788 ... 22 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 48 PRE-ALARM WARNING (ZONE OPTION), ADDRESS 0907, 0971 ....29 KEYPAD CONFIGURATION MODE ..............40 PRIORITY (ZONE OPTION), ADDRESS 0901, 0965 ..........29 KEYPAD ENTRY SOUNDER .................. 40 PRIORITY WITH BYPASS (ZONE OPTION), ADDRESS 0902, 0966 ....29 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 49 SUM CHECK, ADDRESS 0483 ................20 WIRING DIAGRAM ....................56 SUM CHECK, ADDRESS 0505 ................20 XMITTER LOW BATTERY, ADDRESS 0673 ............22 SUPPRESS BYPASS REMINDER WHEN ARMED, ADDRESS 1421 ..... 19 XMITTER SUPERVISION, ADDRESS 0674 ............22 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 50 ZONE AREA 1 (ZONE OPTION), ADDRESS 0936, 1000 ........29 ZONE DESCRIPTIONS ENTERING ......................10 ZONE DESCRIPTIONS .................... 39 ZONE OPTIONS - ZONES 1 TO 16 (ADDRESS 0900-1016) ......29 ZONE REPORT CODE OPTIONS ................. 23 ZONE RESPONSE ....................41 NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 51: Address Number Index

    ADDRESS 0560-0667 ......... CS SUBSCRIBER ID OPTIONS ..................21 ADDRESS 0670 ..........ALARM RESTORE ......................22 ADDRESS 0671 ..........TROUBLE ........................22 ADDRESS 0672 ..........TROUBLE RESTORE ..................... 22 ADDRESS 0673 ..........XMITTER LOW BATTERY ....................22 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 52 ADDRESS 0836 ..........ALARM OUTPUT ......................17 ADDRESS 0836-0863 ......... SYSTEM OPTIONS ......................17 ADDRESS 0837 ..........PULSED ALARM OUTPUT ..................... 17 ADDRESS 0838 ..........PGM1 OUTPUT ......................17 ADDRESS 0839 ..........PGM2 OUTPUT ......................17 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 53 ADDRESS 1422 ..........CHANGE PULSE OUTPUT TO TEMPORAL OUTPUT ........... 19 ADDRESS 1422 ..........CHIRP OUTPUT ON KEYFOB ARM/DISARM ..............19 ADDRESS 1422 ..........DISABLE CALLBACK DOWNLOAD ................19 ADDRESS 1422 ..........DISABLE KEYPAD FUNCTION MODE DOWNLOAD ............. 19 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 54 ADDRESS 2051 ..........DISABLE [ON/OFF] AS EASY EXIT ................19 ADDRESS 2051 ..........DISABLE SYSTEM TROUBLE AUDIBLE TIMEOUT ............19 ADDRESS 2051 ..........ENABLE "K SERIES" STYLE KEYPADS ................ 19 ADDRESS 2051 ..........ENABLE CANCEL REPORT TO TELCO 3 ..............19 NAPCO Security Systems GEM-P816 Programming Instructions...
  • Page 55 ADDRESS 2059 ..........NUMBER OF RINGS BEFORE PICKUP ................. 16 ADDRESS 2285 ..........CLEAR DEALER PROGRAM ..................37 ADDRESS 2285 ..........ERASE DEALER PROGRAM ..................37 ADDRESS 2286 ..........COLD START ......................... 37 ADDRESS 2286 ..........ERASE ENTIRE PROGRAM ................... 37 NAPCO Security Systems GEM-P816 Programming Instructions...

  • Page 56: Gem-P816 Wiring Diagram

    Page 56 GEM-P816 WIRING DIAGRAM Smoke Detector Compatibility Identifier GEM-P816 NAPCO Security Systems GEM-P816 Programming Instructions...
