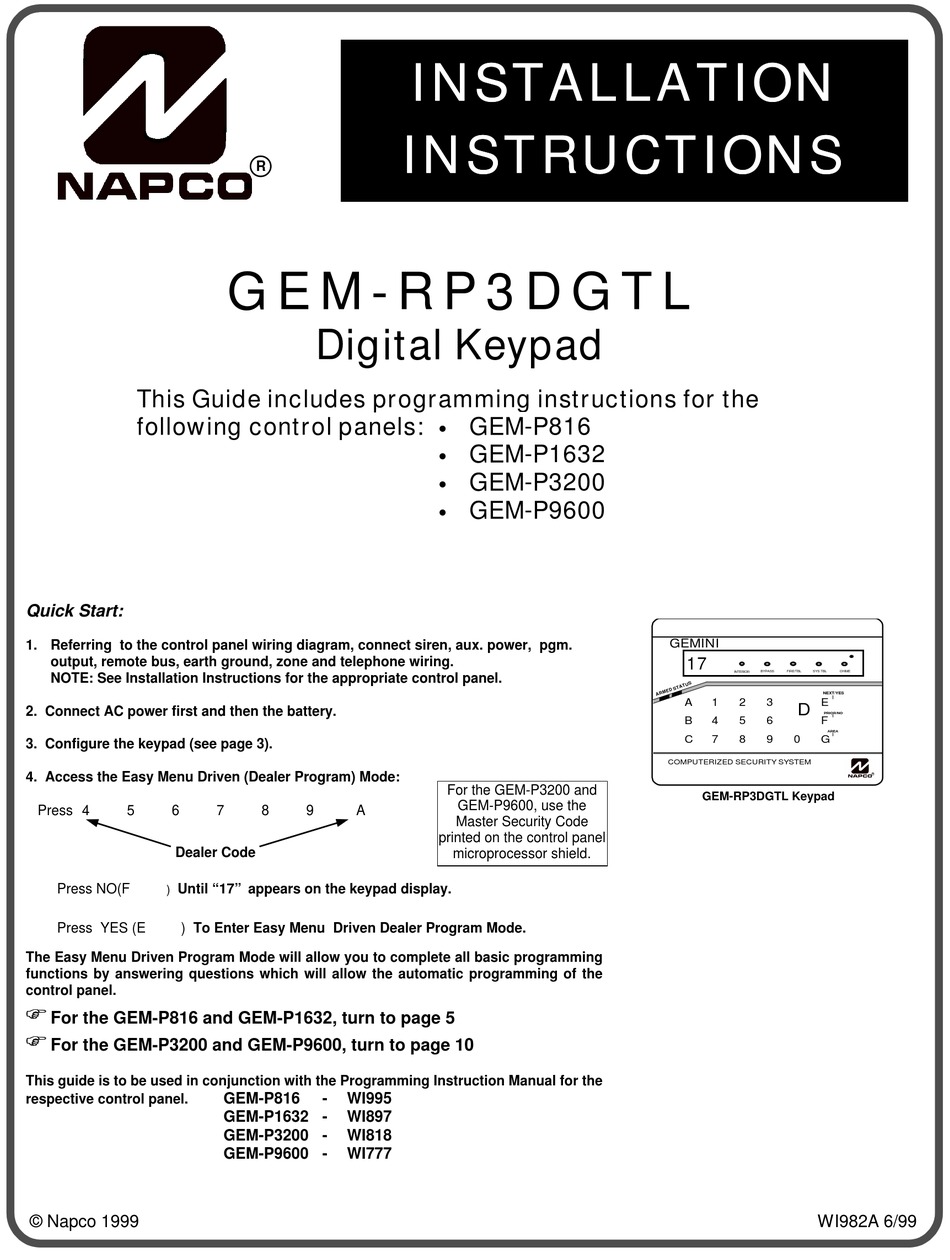

This Guide includes programming instructions for the
following control panels:
Quick Start:
1. Referring to the control panel wiring diagram, connect siren, aux. power, pgm.
output, remote bus, earth ground, zone and telephone wiring.
NOTE: See Installation Instructions for the appropriate control panel.
2. Connect AC power first and then the battery.
3. Configure the keypad (see page 3).
4. Access the Easy Menu Driven (Dealer Program) Mode:
Press 456789 A
Dealer Code
Press NO(F
Until "17" appears on the keypad display.
)
Press YES (E) To Enter Easy Menu Driven Dealer Program Mode.
The Easy Menu Driven Program Mode will allow you to complete all basic programming
functions by answering questions which will allow the automatic programming of the
control panel.
F F
For the GEM-P816 and GEM-P1632, turn to page 5
F F
For the GEM-P3200 and GEM-P9600, turn to page 10
This guide is to be used in conjunction with the Programming Instruction Manual for the
respective control panel.
© Napco 1999
R

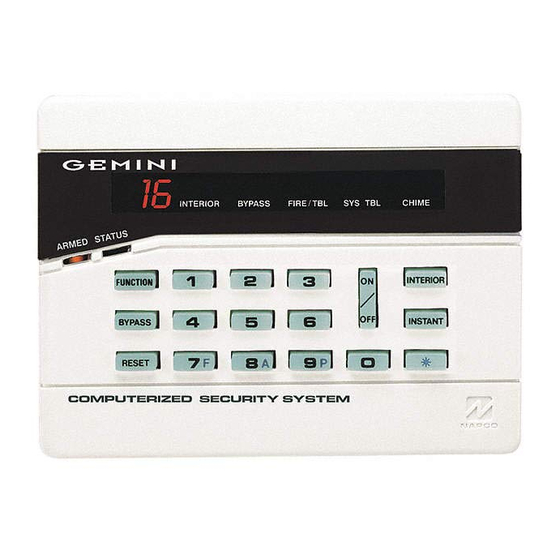

G E M - R P 3 D G T L
Digital Keypad
GEM-P816
-
WI995
GEM-P1632 -
WI897
GEM-P3200 -
WI818
GEM-P9600 -
WI777
INSTALLATION
INSTALLATION
INSTRUCTIONS
INSTRUCTIONS
GEM-P816
GEM-P1632
GEM-P3200
GEM-P9600
For the GEM-P3200 and
GEM-P9600, use the
Master Security Code
printed on the control panel
microprocessor shield.
GEMINI
SYSTEM ARMED
17
ENT A1
01/01/97 12:00AM
BYPASS
FIRE/TBL
SYS TBL
CHIME
INTERIOR
NEXT/YES
A
1
2
3
E
D
PRIOR/NO
B
4
5
6
F
AREA
C
7
8
9
0
G
COMPUTERIZED SECURITY SYSTEM
GEM-RP3DGTL Keypad
WI982A 6/99
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEM-P1632 and is the answer not in the manual?

Questions and answers

Related Manuals for NAPCO GEM-P1632

Summary of Contents for NAPCO GEM-P1632

  • Page 1 For the GEM-P816 and GEM-P1632, turn to page 5 For the GEM-P3200 and GEM-P9600, turn to page 10 This guide is to be used in conjunction with the Programming Instruction Manual for the GEM-P816 respective control panel.

  • Page 3: Specifications

    MOUNTING THE KEYPAD A keypad should be located near each exit/entry door. To open the case, insert a screwdriver into either slot at the bottom and push up with a slight twisting motion to release the retainer tab. Repeat for the other slot. Pull out at the bottom and lift off the two hooks at the top.
  • Page 4 RESETTING THE CONTROL PANEL TO FACTORY DEFAULT If necessary, the control panel can be returned to the factory default and be re-programmed from scratch. For the GEM-P816 and GEM-P1632, enter the address program mode, go to location 1198 and press A1198...
  • Page 5 (Appears for New Panel Only) button for a zero. The system is based on to save. Press NEXT ( (Appears for New Panel Only) (GEM-P1632 only) ) to effectively double the capacity of the control (Appears for New Panel Only) Press the (Appears for New Panel Only) Press the ) button to proceed.

  • Page 6: Central Station Receiver 1 Account Number

    Programming the GEM-P816 & GEM-P1632 BYPASS FIRE/TBL SYS TBL INTERIOR FIRE/TBL INTERIOR BYPASS SYS TBL (Direct Entry) INTERIOR BYPASS FIRE/TBL SYS TBL FIRE/TBL INTERIOR BYPASS SYS TBL (Direct Entry) BYPASS FIRE/TBL SYS TBL INTERIOR INTERIOR BYPASS FIRE/TBL SYS TBL (Direct Entry)
  • Page 7 User Code, including a Service Code. If the area is armed with OTHER than a Service Code, it CANNOT be disarmed with a Service Code. This is normally used to activate a door striker while an area is disarmed. Also program “Access Control on PGM2 Output” (Address 0719) and “PGM2 Output Access Control Timeout” (Address 0711).
  • Page 8 Programming the GEM-P816 & GEM-P1632 INTERIOR BYPASS FIRE/TBL SYS TBL BYPASS FIRE/TBL SYS TBL INTERIOR (Direct Entry) Zone # 6-digit RF ID # Quick Method. If a receiver is already installed in the panel, Napco transmitter wireless points can be programmed automatically (“enrolled”) using the following procedure.

  • Page 9: Key Fob Transmitters

    Programming the GEM-P816 & GEM-P1632 BYPASS FIRE/TBL SYS TBL INTERIOR FIRE/TBL INTERIOR BYPASS SYS TBL (Direct Entry) KeyFob # Area # 6-digit RF ID # to enter next Key Fob. When all Key Fobs are entered, press NEXT ( Note: If the Key Fob is converted for Two Button “Emergency Use”...
  • Page 10 Programming the GEM-P3200 & GEM-P9600 BYPASS FIRE/TBL SYS TBL INTERIOR BYPASS FIRE/TBL SYS TBL INTERIOR (Direct Entry) 1 Press the button and then press entries are from 08 to 24 in multiples of 4. 2 Press and press If no zones are to programmed for Area 2, press 3 If Area 2 is to be programmed, press programmed for Area 2.
  • Page 11 4 Enter the Authority Level. Refer to the Authority Level table below. 5 If this code is to be used to activate a door strike, assign the User to the appropriate access control keypad from the Access Control Keypad table below.
  • Page 12 Programming the GEM-P3200 & GEM-P9600 BYPASS FIRE/TBL SYS TBL INTERIOR BYPASS FIRE/TBL SYS TBL INTERIOR (Direct Entry) Zone # 6-digit RF ID # Quick Method. If a receiver is already installed in the panel, Napco transmitter wireless points can be programmed automatically (“enrolled”) using the following procedure.
  • Page 13 Programming the GEM-P3200 & GEM-P9600 BYPASS FIRE/TBL SYS TBL INTERIOR FIRE/TBL INTERIOR BYPASS SYS TBL (Direct Entry) KeyFob # Area # 6-digit RF ID # Press to save. Then go to step 1 to enter next Key Fob. When all Key Fobs are entered, press NEXT ( Note: If the Key Fob is converted for Two Button “Emergency Use”...

  • Page 14: Keypad Programming Overview

    DIRECT ADDRESS PROGRAM MODE This is an extension of the Dealer Program Mode. This method of programming is used in conjunction with the Keypad Programming Worksheets contained in the control panel programming guide. Refer to these worksheets to identify the 4-digit location (address) of the feature to be programmed.
  • Page 16 NAPCO SECURITY SYSTEMS, INC. (NAPCO) war- rants its products to be free from manufacturing defects in materials and workmanship for thirty-six months fol- lowing the date of manufacture. NAPCO will, within said period, at its option, repair or replace any product failing to operate correctly without charge to the original pur- chaser or user.
