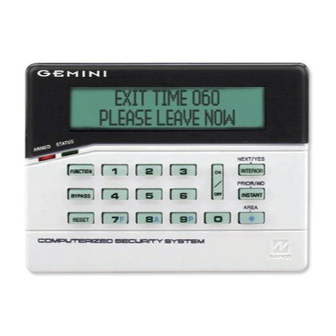

NAPCO Gemini GEM-P1632 Programming Instructions Manual

Control panel/communicator with keypads
Hide thumbs Also See for Gemini GEM-P1632:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
R
HARDWIRE
CONTROL PANEL/COMMUNICATOR
"Classic" GEM-RP2ASe2, GEM-RP3DGTL, and GEM-RP4RFC/GEM-RP4C Keypads and
the "K Series" GEM-K2AS, GEM-K3DGTL, and GEM-K4/GEM-K4RF Keypads
GEMINI
SYSTEM ARMED
01/01/97 12:00AM
A
1 2
R
B
4
5 6
C
7 8 9 0
COMPUTERIZED SECURITY SYSTEM
"K Series" GEM-K2AS
Quick Start (for GEM-K2AS):
1.
Refer to the wiring diagram, connect Siren, Aux. Power,
PGM Output, Remote Bus, Earth Ground, Zone and Tele-
phone Wiring. NOTE: See Installation Instructions (WI808).
2.
Connect AC power first and then the battery.
3.
Configure the keypad (see page 43).
4.
Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789
Dealer Code
Press NO until "TURNON PROG Y/N" appears on the keypad display.
Press NEXT/YES to enter Dealer Program Mode. See p. 5
© Napco 2003
G E M - P 1 6 3 2
Programming the GEM-P1632 Control Panel with the
"K Series" GEM-K4/GEM-K4RF
READY
READY
AC ON
AC ON
NEXT/YES
3
E
D
PRIOR/NO
F
AREA
G
R
R
PROGRAMMING
INSTRUCTIONS
WIRELESS
GEMINI
SYSTEM ARMED
32
01/01/97 12:00AM
INTERIOR
A
1 2
R
B
4
5 6
C
7 8 9 0
COMPUTERIZED SECURITY SYSTEM
"K Series" GEM-K3DGTL
Quick Start (for GEM-K3DGTL):
1.
Refer to the wiring diagram, connect Siren, Aux. Power,
PGM Output, Remote Bus, Earth Ground, Zone and Tele-
phone Wiring. NOTE: See Installation Instructions (WI808).
2.
Connect AC power first and then the battery.
3.
Configure the keypad (see page 43).
4.
Access the Easy Menu Driven (Dealer Program) Mode:
Press
456789
Dealer Code
Press NO until "17" appears on the keypad display.
Press NEXT/YES to enter Dealer Program Mode. See p. 5.
ENT A1
BYPASS
FIRE/TBL
SYS TBL
CHIME
NEXT/YES
3
E
D
PRIOR/NO
F
AREA
G
R
R
WI 1148A 10/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini GEM-P1632 and is the answer not in the manual?

Questions and answers

Related Manuals for NAPCO Gemini GEM-P1632

Summary of Contents for NAPCO Gemini GEM-P1632

  • Page 1 INSTRUCTIONS HARDWIRE WIRELESS G E M - P 1 6 3 2 CONTROL PANEL/COMMUNICATOR Programming the GEM-P1632 Control Panel with the "Classic" GEM-RP2ASe2, GEM-RP3DGTL, and GEM-RP4RFC/GEM-RP4C Keypads and the "K Series" GEM-K2AS, GEM-K3DGTL, and GEM-K4/GEM-K4RF Keypads "K Series" GEM-K4/GEM-K4RF GEMINI...
  • Page 2 VERSION 10 OR LATER. IMPORTANT NOTE This manual supports the keypad programming of the GEM-P1632 control panel with the NAPCO "classic" GEM- RP2ASe2, GEM-RP3DGTL and GEM-RP4RFC series keypads as well as the GEM-K2AS, GEM-K3DGTL and GEM- K4RF "K Series" keypads. The new "K Series" models offer the new STAY and AWAY buttons with simplified function- ality, along with the new MENU and ENTER buttons.

  • Page 3: Table Of Contents

    EXPERIENCE AND INSTALLATION EQUIPMENT. THE UNIT IS DESIGNED TO BE PROGRAMMED USING AN IBM-COMPATIBLE COMPUTER WITH NAPCO PCD3000 SOFTWARE. AFTER PROGRAMMING, BE SURE TO RUN THE PCD3000 ERROR-CHECK UTILITY TO GUARD AGAINST PROGRAMMING CONFLICTS FOR THE TYPE OF SERVICE SELECTED FOR THE INSTALLATION.

  • Page 4: System Programming Options

    SYSTEM PROGRAMMING OPTIONS INTRODUCTION The GEM-P1632 control panel may be programmed by various means, each of which will be covered in detail in the sections that follow. Keypad displays shown are for a GEM-K2AS, GEM-K3DGTL and GEM-K4RF series keypads. With the GEM-RP2ASe2 and GEM-K2AS keypads, because of their reduced display capabilities, messages are abbreviated and will scroll through two or more screens.

  • Page 5: Easy Menu Driven Program Mode

    Should it be necessary to create a new custom default program, (a) from the Dealer Program Mode, press the button to enter the Direct Address Program Mode; (b) access Location 1197 (Clear Program); (c) press the button and start over. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 6: Gem-Rp2Ase2/Gem-K2As Keypad Easy Program Menu

    Areas 1 & 2. The Direct Address Program Mode can then be used to remove zone from Area 1 and place them in Area 2. See Zone Options. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 7: Interior (Stay) Bypass Zones In Area 1

    Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros. Zn#XX • Press to save and then repeat for any additional zone(s), Press the NEXT/YES button to proceed. (Direct Entry) NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 8: Auto Bypass Re-Entry Zones

    The SIA CP-01 Features are designed to reduce the incidence of false alarms. See WI808, "Installer Program- ming Quick Reference Chart SIA False Alarm Reduction" and "GEM-P1632 Factory Default Description" for more information. NOTE: Do not enable unless reporting, otherwise system trouble Fail to Communicate may occur.

  • Page 9: Central Station Receiver 1 Account Number

    Options Level (OPT). Refer to the table on the next page for the available area options. Note: Duplicate User Codes are not allowed; therefore a duplicate Code entered in the LCD Window will erase when (Direct Entry) pressed. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 10: Rf Transmitter Points

    Quick Method. Map point 1 to Zone 6 and point 2 to Zone 9. If a receiver is already installed in the panel, Napco transmitter wireless points can be programmed automatically (“enrolled”) 1. Enter the Enroll mode as described above.

  • Page 11: Key Fob Transmitters

    The key fob is converted to a “panic only” device. ZONE DESCRIPTIONS: GEM-RP2ASe2 cannot be used to enter Zone Descriptions. To enter Zone Descriptions, you must use the GEM-RP1CAe2 Keypad (See WI897) or the Napco Quickloader Software. Dealer Code D Code Directly enter the Dealer Code (default = 456789), including leading zeros.

  • Page 12: Clear Program

    Data and System Status Data (similar to a new panel). (Direct Entry) Access address 1198, then press the button. Data entry is not allowed. NOTE: Some features (schedules) can only be programmed again with the Downloading Software. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 13: Gem-Rp3Dgtl/Gem-K3Dgtl And Gem-Rp4Rfc/Gem-K4Rf Keypad Easy Program Menu

    Press the NEXT/YES button to proceed. INTERIOR BYPASS FIRE/TBL SYS TBL CHIME NOTE: Exit/Entry Zones will have an entry delay of 30 seconds and an exit delay of 60 seconds. (Direct Entry) NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 14: Interior Zones

    Press the NEXT/YES button to pro- ceed. INTERIOR BYPASS FIRE/TBL SYS TBL CHIME NOTE: A PGM2 Output Timeout of 15 Minutes will automatically be programmed. (Direct Entry) NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 15: Sensor Watch Zones

    INTERIOR BYPASS FIRE/TBL SYS TBL CHIME The SIA CP-01 Features are designed to reduce the incidence of false alarms. NOTE: Do not (Press YES or NO) enable unless reporting, otherwise system trouble Fail to Communicate may occur. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 16: Number Of Keypads

    ANY User Code as the same digits entered for the “Ambush Prefix”. If the programmed code is less than 6 digits, press to set the cursor to USER OPTIONS. Refer to the tables on the next page for the available User Option data entries. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 17: Rf Transmitter Points

    3. Open the loops of points 1, 2 and 3. 4. Install the transmitter battery. The keypad will beep 3 times to If a receiver is already installed in the panel, Napco transmitter indicate that three points have been programmed.

  • Page 18: Key Fob Transmitters

    ZONE DESCRIPTIONS: GEM-K3DGTL cannot be used to enter Zone Descriptions. To enter Zone Descriptions, you must use the GEM-K1CA Keypad or the Napco Quickloader Software. DATE ENTRY: GEM-K3DGTL cannot be used to enter the date. To enter Date, you must use the GEM-K1CA Keypad (Version 5 or later) or the Napco Quickloader Software.
  • Page 19 Page 19 THIS PAGE INTENTIONALLY LEFT BLANK NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 20: Direct Address Program Mode

    (The panel and keypad version appears briefly on the keypad display). 4. Press C to exit Easy Menu Driven Program Mode & enter Direct Address Program Mode. (For keypad display examples when in Program Mode, see next page). NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 21: Keypad Address Program Mode Display

    C O M P U T E R I Z E D S E C U R I T Y S Y S T E M To exit, press C. NOTE: Press 0 button to clear character at cursor. Select NEXT/PRIOR Address. Press to jump to next programming block. * Press through for 10-15, respectively. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 22: Direct Address Programming Example

    It is using number buttons (0-9). Select NEXT/ PRIOR/NO recommended that the panel be uploaded to Napco's Quickloader software following any keypad programming and that PRIOR address 4. Press to save.

  • Page 23: Conventions Used In This Manual

    • It is recommended that the panel be uploaded to 1. Enter the panel's Dealer Security Code (Address 0500), then press NAPCO's PCD-Windows software following any keypad button. " programming and that the PCD3000's error-check feature be utilized to reduce the possibility of programming "...

  • Page 24: System Delays & Timeouts (Addr 0000-0002, 0711, 0715, 1059 & 1179)

    4. For more information on a programming B. Divide it by 16 option refer to the Glossary at the end of 1 Quotient Left Digit this manual. 4. Press to save. 16 20 4 Remainder Right Digit NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 25: System Output Timeouts (Addr 0710, 0712-0714)

    1. Enter in 1st and 2nd Leading Digits in right digit only (left digit is not used) as shown. Pager Format LEFT RIGHT (2nd Digit) blank (•) 2. Valid entries are: 0-9. [Default = blank (•) blank (•)] 3. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 26: Syst. Opt. & Ambush Code (Addr 0460-0485 & 1054)

    1054 is not left blank (•), then the 2-digit Global Ambush Code is the two digits entered in address Ambush Code 1054. [Default = blank (•) blank (•)] Enter in address location (both left and right digits) ; valid entries are 1-9. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 27: System Options (Addr 0718-0722)

    NOTE: Dark shaded data value box shows option not available. the 2-digit “Global Ambush Code” 4. Press to save. will be “99”. NOTE: To select “Line-Fault Test only when Armed”, you must also select “Enable Line-Fault Test” at address 0721. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 28: System Options (Addr 1060-1062)

    2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. 4. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 29: Cs Receiver Opt. (Addr 0170-0235)

    2. Enter up to 20 digits from left to right. NOTE: Leave trailing boxes blank (•). For a zero, press G0. 3. Valid entries are: 1-9, B = button, C = button, D = 3 sec. pause, E = Wait for dial tone, F = ignore location. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 30: Cs Subscriber Reporting Opt. (Addr 0259-0350)

    [Default = blank (•) blank (•) from address 0319-0332] Exit Error 0348 * NOTE: Keypad Aux. is not to be selected for [Default = blank (•) blank (•) from address 0333-0350] Recent Close 0349 UL Installations. Fault Find 0350 NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 31: Cs Zn Reporting Opt. (Addr 0358-0389 & 0391-0394)

    2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 32: Cs User Reporting Opt. (Addr 0440-0459)

    2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. 4. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 33: Ezm Group & Area Arming Opt. (Addr 0737-0744)

    NOTE: Dark shaded data value box shows option not available. LEFT RIGHT LEFT RIGHT blank (•) blank (•) Not Used blank (•) blank (•) Not Used 3. Press to save. blank (•) Enabled blank (•) Enabled NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 34: Area Bell Control Options (Addr 0745-0749)

    2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in right digit address location. NOTE: Dark shaded data value box shows option not available. 4. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 35: Keypad Options (Addr 0723-0736)

    KEYPAD OPTIONS: Select options for any of the 7 keypads. Select the desired option entering the option number (1-8) for each digit. Enter corresponding option number in address location. NOTE: Dark shaded data value box shows option not available. Press to save. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 36: Zones 1-16 Options (Addr 0490-0595)

    4 2 1 Selective Bypass Draw Circle N O T E : S e e D i r e c t A d d r e s s 4 2 1 Programming Example on page 22. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 37: Zones 17-32 Options (Addr 0601-0705)

    Pulse Alarm Output is enabled for the zone number(s) entered in “FIRE ZONES ENTER ZONE #” or “2-WIRE FIRE ZNS ENTER ZONE #”. • Fire is enabled for the zone number(s) entered in “FIRE ZONES ENTER ZONE #”. • 2-Wire Smoke Detector is enabled for the zone number(s) entered in “2-WIRE FIRE ZNS ENTER ZONE #”. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 38: External Relay Control (Addr 0750-0829)

    COND. (•) (•) (•) (•) To program, follow the 5 steps below: STEP 1: RELAY # OPTIONS: The GEM-P1632 supports 8 external relays Step Step Step Step Step from Relay Module RM3008. Multiple events may be "mapped" to each relay, up to a maximum of 16 events.
  • Page 39 Left Digit Zone 32 Entry Relay Area 2 16 20 * NOTE: Keypad Auxiliary is not to be selected for UL Installations. NOTE: Keypad Tamper must be enabled in UL installations. 4 Remainder Right Digit NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 40: Rf Rcvrs. & Sup. Timers (Addr 1038-1053 & 1180)

    (•) 360 min. blank (•) 390 min. NOTE: These timers apply only to Supervised RF Transmitters (see RF Transmitters in Easy blank (•) 420 min. Menu Driven Mode Programming). blank (•) 450 min. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 41: Clear Program Options (Addr 1197 & 1198)

    2. Press Q Until “TURNON PROG Y/N” (GEM-RP2ASe2/GEM-K2AS) or “17” (GEM-RP3DGTL/GEM-K3DGTL or GEM-RP4RFC/GEM-K4RF) appears on the LCD screen. 3. Press P To Enter User Program Mode. 4. Press C To Exit User Program Mode when finished. NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 42: Accessing User Program Mode

    User Number each code. FIRE TROUBLE G 0 button to clear character at cursor. NOTE: Press BYPASS CHIME To continue press P or Q button. User Code (Direct Entry) Programming User Codes with GEM-K4RF Keypad NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 43: Keypad Configuration Mode

    Cut Jumper A to disable touch pad backlighting to conserve 11mA standby current. LCD BACKLIGHT Cut Jumper B to disable LCD backlighting. DISABLE SOUNDER Cut Jumper C to disable the sounder. (Do not disable in UL applications.) NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 44: Alphabetical Index

    Disable Zone Fault Scrolling Direct Address 0718 Don't Clear PGM2 Output with Disarm Direct Address 0722 DOWNLOAD/CALLBACK OPTIONS Direct Addresses 1183 & 0236-0255 Enable Alarm Output on Telco Fail only when Armed Direct Address 0721 NAPCO Security Systems GEM-P1632 Programming Instructions...
  • Page 45 Direct Address 0492, 0547, 0602, 0657 36-37 PULSE EVENT CODE (CS ZONE REPORTING) Direct Addresses 0358-0389 Pulsed Alarm Output (Enable Zone) Direct Address 0501, 0556, 0611, 0666 36-37 Pulsed Alarm Output Timeout Direct Address 0713 NAPCO Security Systems GEM-P1632 Programming Instructions...
  • Page 46 0526, 0581, 0636, 0691 36-37 Zone Area 2 (Enable Zone) Direct Address 0637, 0692 36-37 Zone Descriptors Easy Menu Driven ZONE OPTIONS Direct Addresses 0490-0595, 0601-0705 36-37 Zones Report Code (Zones 1-32) Direct Address 0358-0389 NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 47: Address Number Location Index

    Direct Address 36-37 0502 PGM1 Output (Enable Zone) Direct Address 36-37 0503 PGM2 Output (Enable Zone) Direct Address 36-37 0504 Entry/Exit 1 (Enable Zone) Direct Address 36-37 0505 Entry/Exit 2 (Enable Zone) Direct Address 36-37 NAPCO Security Systems GEM-P1632 Programming Instructions...
  • Page 48 Trouble Telco 3 (Enable Zone) Direct Address 36-37 0577 Trouble Restore 3 (Enable Zone) Direct Address 36-37 0578 No EOL Resistor (Enable Zone) Direct Address 36-37 0579 Trouble on Open (Enable Zone) Direct Address 36-37 NAPCO Security Systems GEM-P1632 Programming Instructions...
  • Page 49 Direct Address 36-37 0656 Priority (Enable Zone) Direct Address 36-37 0657 Priority with Bypass (Enable Zone) Direct Address 36-37 0658 Auto-Bypass (Enable Zone) Direct Address 36-37 0659 Selective Bypass (Enable Zone) Direct Address 36-37 NAPCO Security Systems GEM-P1632 Programming Instructions...
  • Page 50 Opening Report Only after Alarm Report Direct Address 0718 Status Report Direct Address 0719 Access Control on PGM2 Output Direct Address 0719 Auto Bell Test on Arming Direct Address 0719 Auto Reset after Burglary Output Timeout Direct Address NAPCO Security Systems GEM-P1632 Programming Instructions...
  • Page 51 Direct Address 1180 RF RECEIVER & SUPERVISORY TIMER OPTIONS Direct Addresses 1183 Number of Rings before Pickup Direct Address 1183 DOWNLOAD/CALLBACK OPTIONS Direct Addresses 1197 Clear Dealer Program Direct Address 1198 Cold Start Direct Address NAPCO Security Systems GEM-P1632 Programming Instructions...

  • Page 52: Gem-P1632 Wiring Diagram

    Page 52 GEM-P1632 WIRING DIAGRAM LA1469C NAPCO Security Systems GEM-P1632 Programming Instructions...
