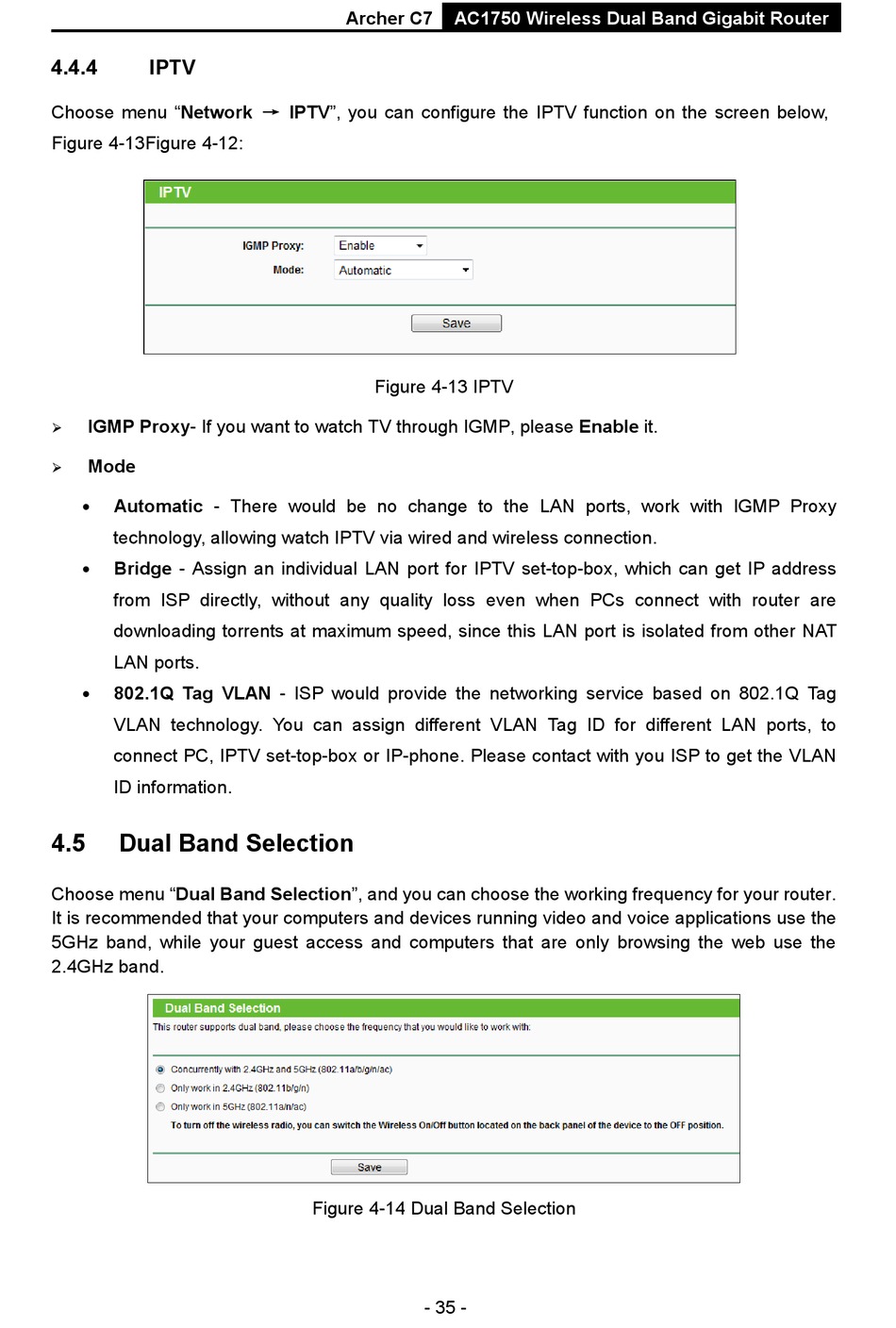

4.4.4

IPTV

Choose menu "Network → IPTV", you can configure the IPTV function on the screen below,
Figure 4-13Figure 4-12:
IGMP Proxy- If you want to watch TV through IGMP, please Enable it.

Mode

Automatic - There would be no change to the LAN ports, work with IGMP Proxy
•
technology, allowing watch IPTV via wired and wireless connection.
Bridge - Assign an individual LAN port for IPTV set-top-box, which can get IP address
•
from ISP directly, without any quality loss even when PCs connect with router are
downloading torrents at maximum speed, since this LAN port is isolated from other NAT
LAN ports.
802.1Q Tag VLAN - ISP would provide the networking service based on 802.1Q Tag
•
VLAN technology. You can assign different VLAN Tag ID for different LAN ports, to
connect PC, IPTV set-top-box or IP-phone. Please contact with you ISP to get the VLAN
ID information.
4.5

Dual Band Selection

Choose menu "Dual Band Selection", and you can choose the working frequency for your router.
It is recommended that your computers and devices running video and voice applications use the
5GHz band, while your guest access and computers that are only browsing the web use the
2.4GHz band.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
Figure 4-13 IPTV
Figure 4-14 Dual Band Selection
- 35 -
