Target - TP-Link Archer C7 User Manual

For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
1. Click Add New... button in Figure 4-80 to enter the Add or Modify a Host Entry page.
In Mode field, select MAC Address from the drop-down list.
2.
3. In Host Description field, create a unique description for the host (e.g. Host_2).
4. In MAC Address field, enter 00-11-22-33-44-AA.
Click Save to complete the settings.
5.
Then you will go back to the Host Settings page and see the following list.
4.15.3

Target

Choose menu "Access Control → Target", and then you can view and set a Target list in the
screen as shown in Figure 4-83. The target list is necessary for the Access Control Rule.
Archer C7 AC1750 Wireless Dual Band Gigabit Router

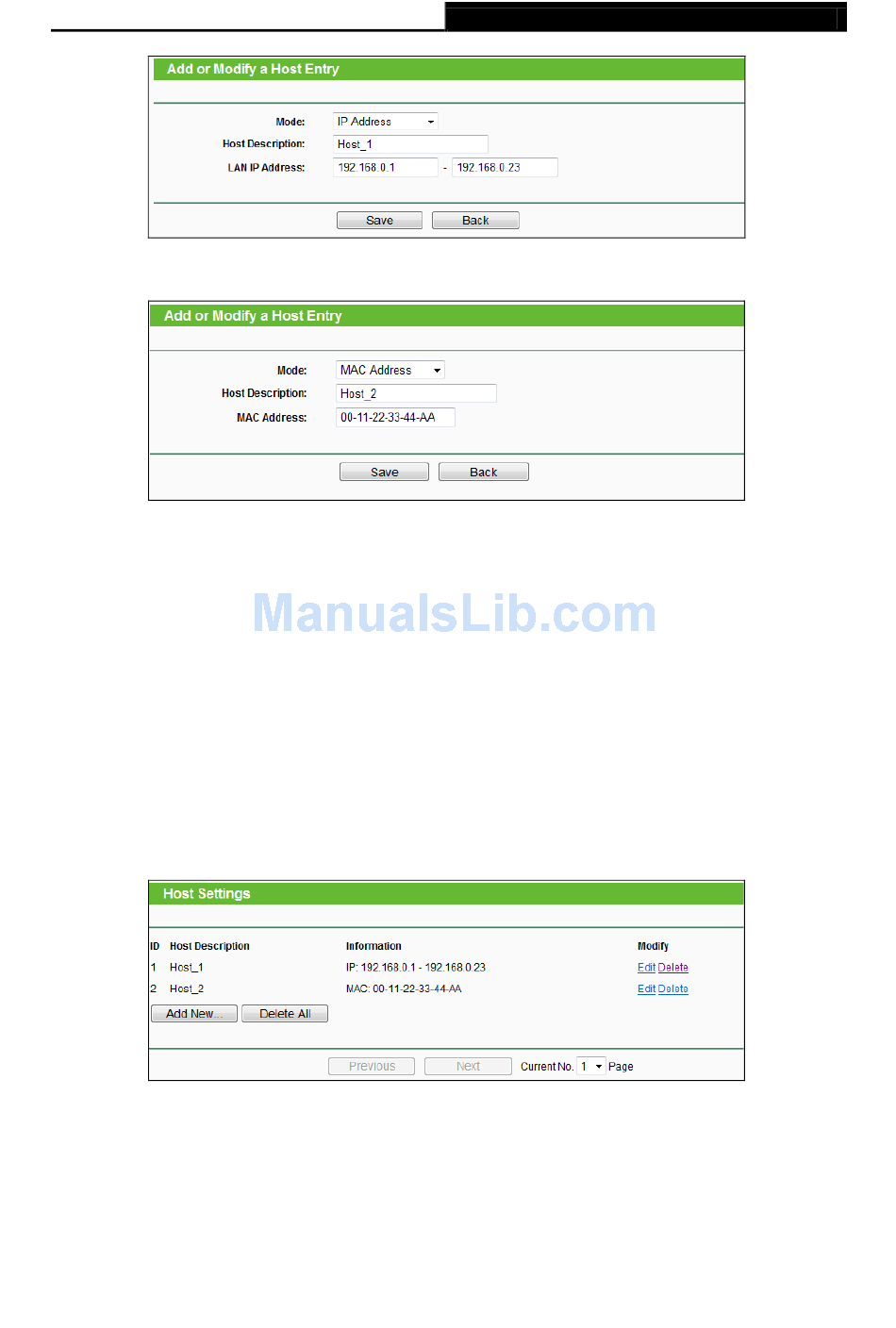

Figure 4-81 Add or Modify a Host Entry
Figure 4-82 Add or Modify a Host Entry
- 90 -
