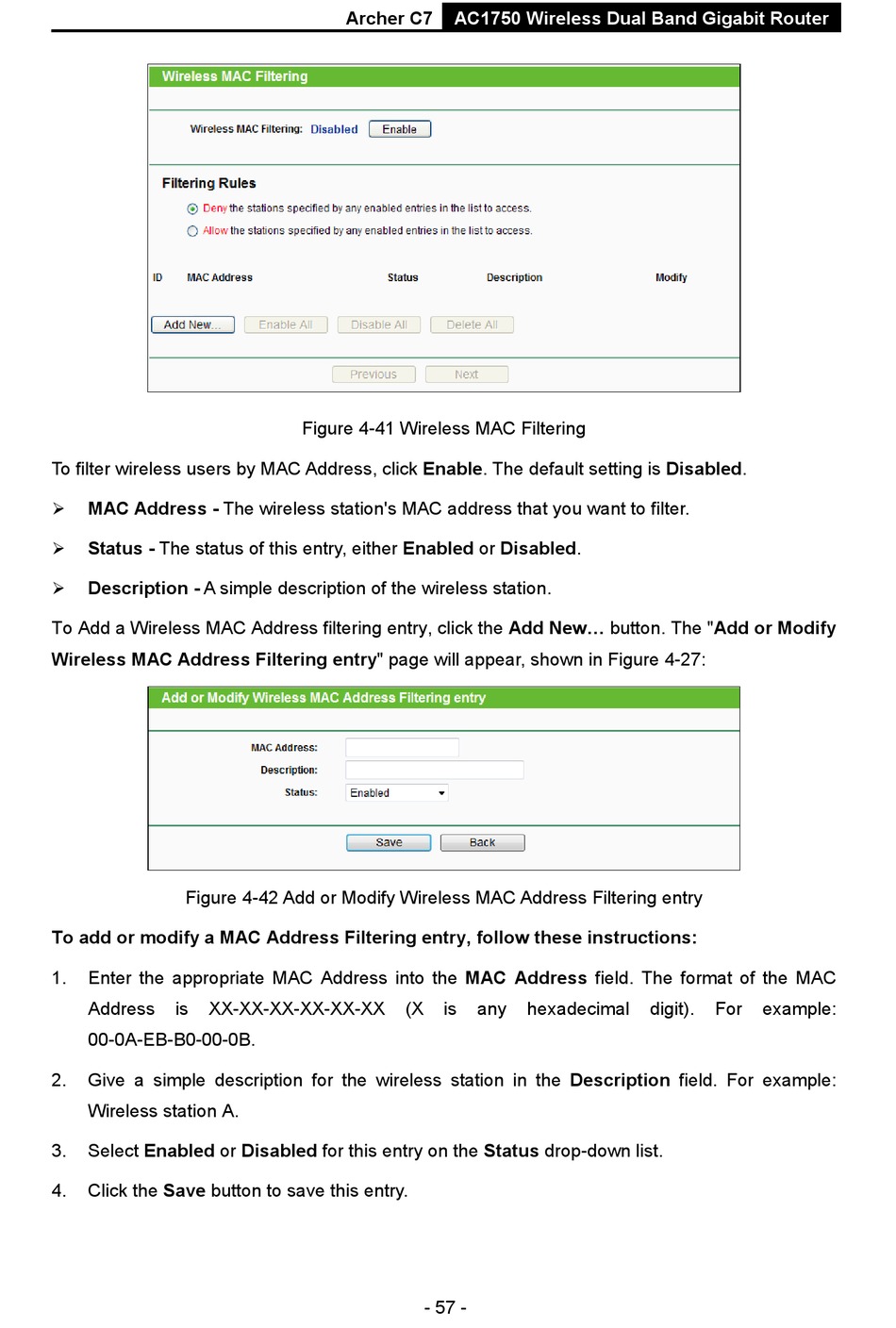

TP-Link Archer C7 User Manual page 69

To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
MAC Address - The wireless station's MAC address that you want to filter.

Status - The status of this entry, either Enabled or Disabled.

Description - A simple description of the wireless station.

To Add a Wireless MAC Address filtering entry, click the Add New... button. The "Add or Modify
Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-27:
Figure 4-42 Add or Modify Wireless MAC Address Filtering entry
To add or modify a MAC Address Filtering entry, follow these instructions:
Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
1.
Address is XX-XX-XX-XX-XX-XX
00-0A-EB-B0-00-0B.
2. Give a simple description for the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click the Save button to save this entry.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
Figure 4-41 Wireless MAC Filtering
(X is
- 57 -
any hexadecimal digit). For example:
