2) If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-8. Configure the following parameters and then click Next to continue.
IP Address - This is the WAN IP address as seen by external users on the Internet

(including your ISP). Your ISP will provide you with the IP address you need to enter
here. Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address. Your IPS will provide

you with the subnet mask which is usually 255.255.255.0.
Default Gateway - Your ISP will provide you with the Gateway address which is the ISP

server's address. Enter the gateway IP address into the box if required.
Primary DNS - Enter the DNS Server IP address into the box if required.

Secondary DNS - （Optional） If your ISP provides another DNS server, enter it into this

field.
3) If the connection type detected is PPPoE/Russian PPPoE, the next screen will appear as
shown in Figure 3-9. Configure the following parameters and then click Next to continue.
Archer C7 AC1750 Wireless Dual Band Gigabit Router

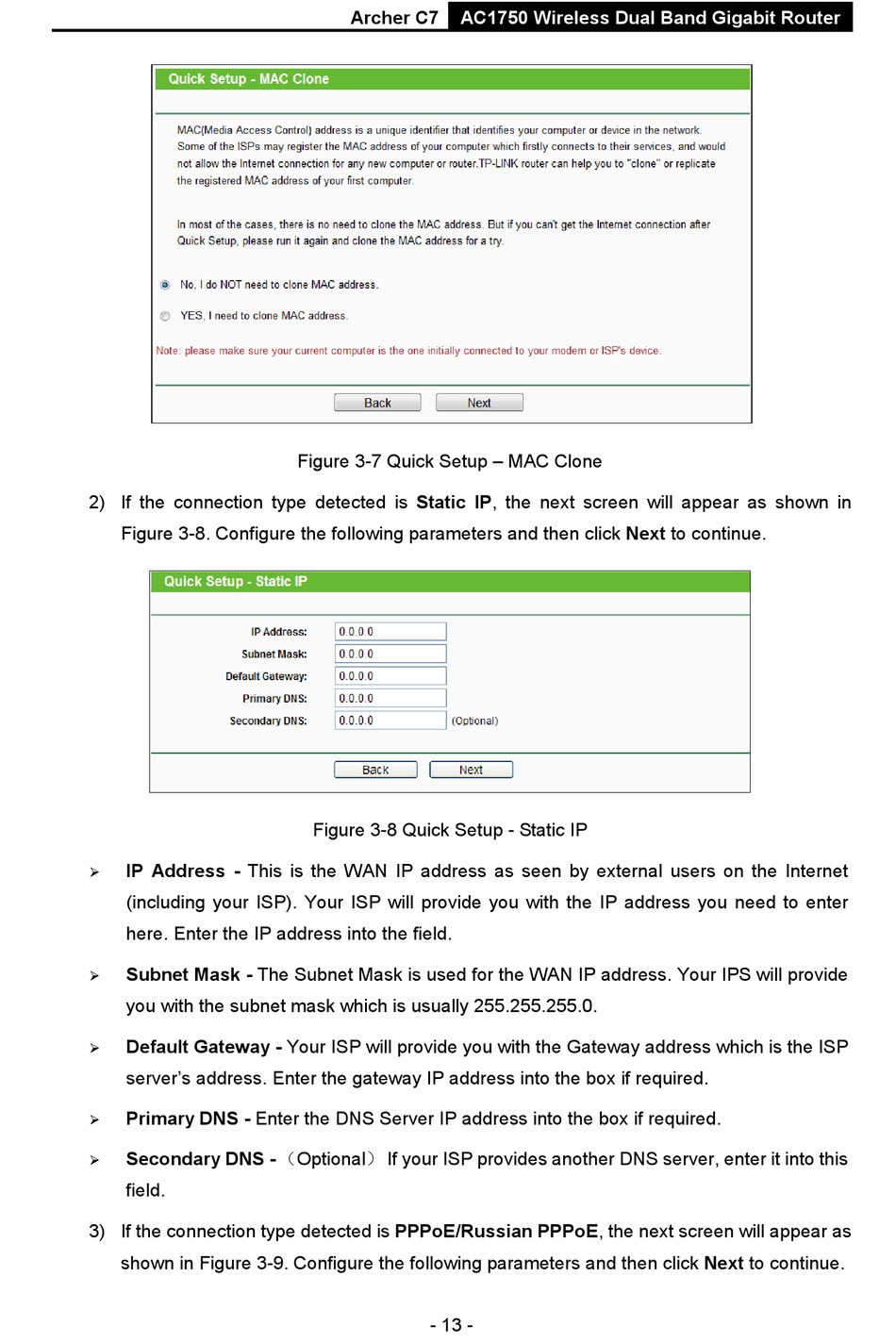

Figure 3-7 Quick Setup – MAC Clone
Figure 3-8 Quick Setup - Static IP
- 13 -
