Replacing a Drive

When replacing an existing drive, you may use a drive made by another company. For a list
of compatible drives, go to
Removing a Drive
Important: Before getting started, power off the unit and disconnect all of its cables.
Place the unit on a clean and stable surface.
If your My Cloud Mirror still contains the faulty (drive), you must first remove it before you can
insert the new one.
1. Reveal the hard drives by pressing the indented button on the top of the device and
pulling up the door.
2. Remove the bracket used for holding drives in.
3. Pull the plastic tab at the back of the drive and with your other hand, guide the drive up
and out of the enclosure.
Inserting a Drive
Important: To avoid electrostatic discharge (ESD) problems, ground yourself by
touching metal before handling the device.
Preparing a Drive
For WD replacement drives, reuse the screws and tabs attached to the faulty drive.
Note: A standard phillips-head screwdriver is all you need.

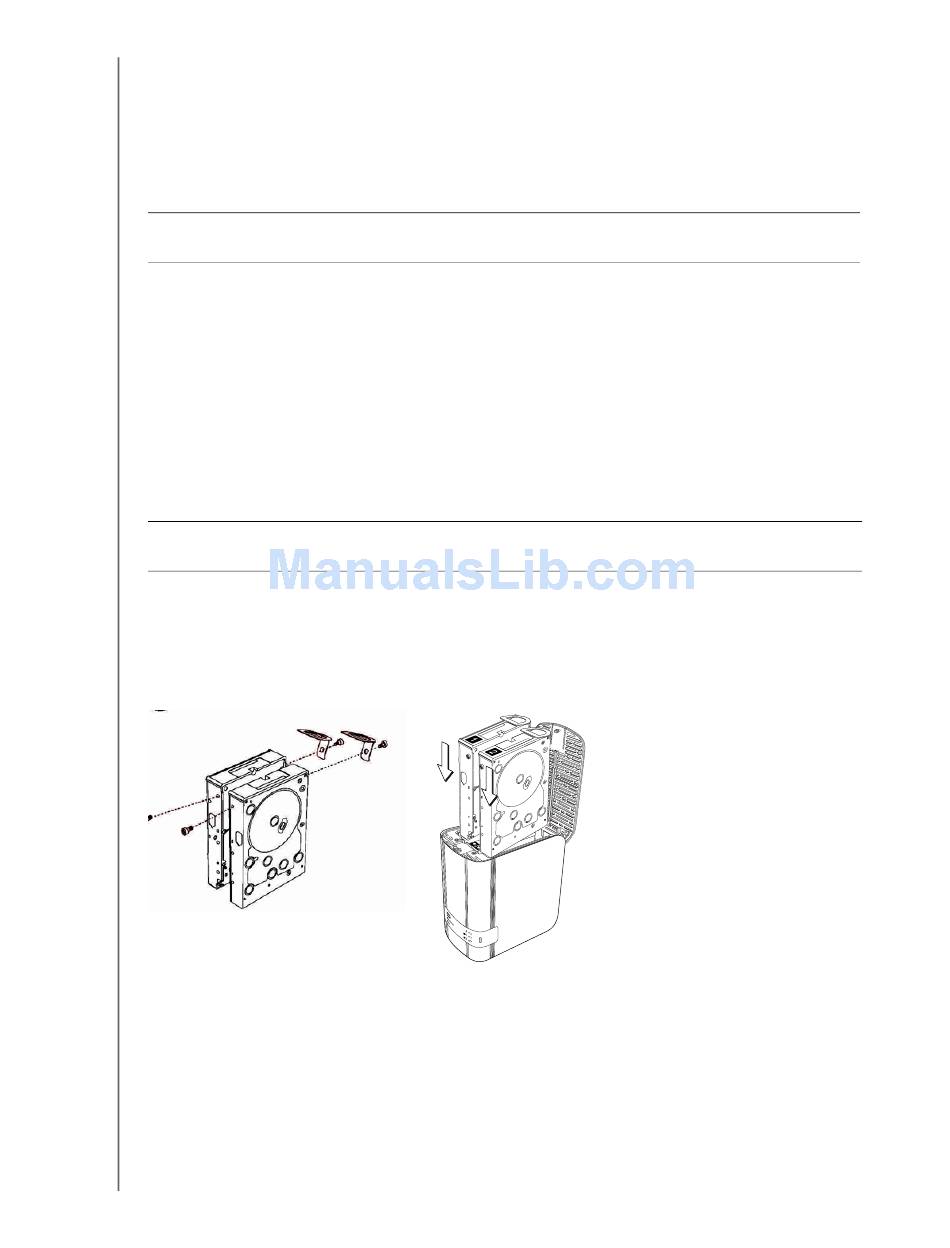

1. Using the parts from the faulty drive, attach a plastic tab to the top hole in the drive's side
(on the right if the green board is facing you).
2. Attach a screw to the corresponding hole on the other side of the drive.
3. Attach label 1 or 2 to the top of the drive. Label 1 is on the left and label 2 is on the right,
when looking down on the top of the unit. There are corresponding numbers on the
cross brace label.
