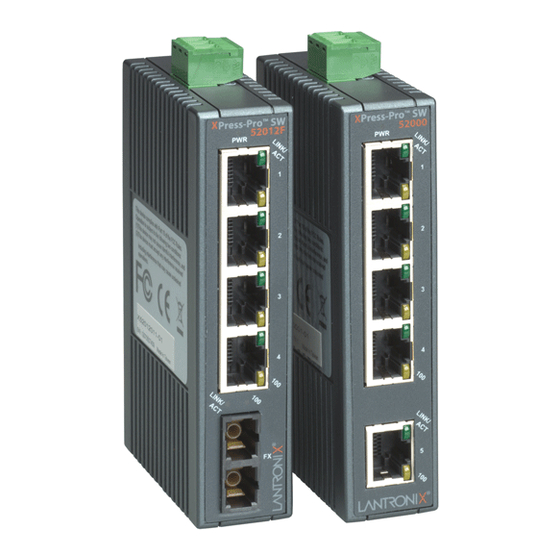

This quick installation guide describes how to install and use the hardened compact Ethernet Switch.
-10°C to +60°C, this is the switch of choice for harsh environments constrained by space.
Physical Description

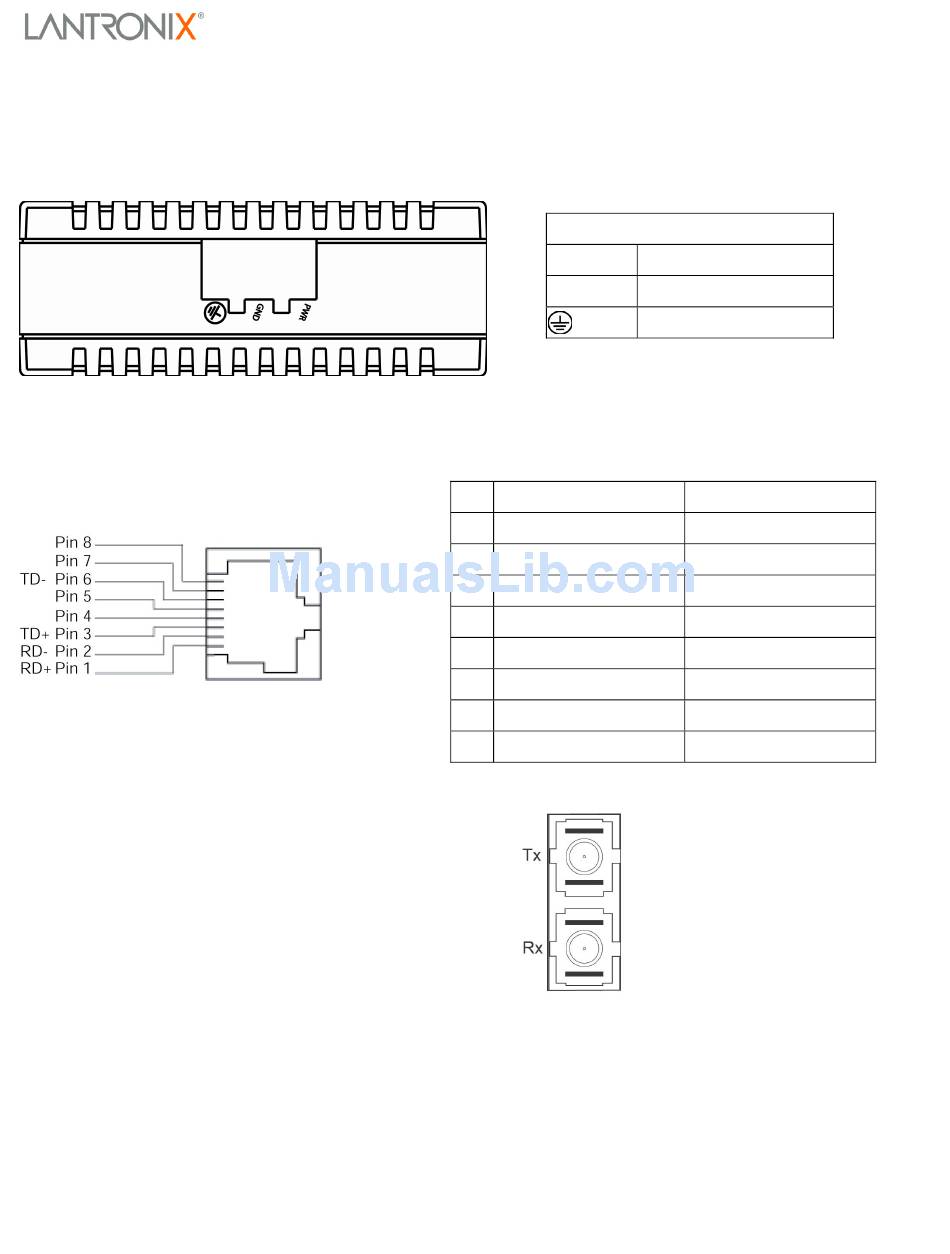

The Terminal Block and Power Input
DC Terminal Block Power Input: The DC Terminal Block power input can be used to power up this Switch.
The 10/100BaseTX and 100BaseFX Connectors
The 10/100BaseTX Connections
The following lists the pinouts of 10/100BaseT/TX ports.
The 100BaseFX Connections
The fiber port pinouts
The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,
and the Rx (receive) port of device I to the Tx (transmit) port of device II.
Part Number 900-508a
May 2007
XPress-Pro SW 52000 Quick Start
Capable of operating at temperature extremes of
The Terminal Block
PWR
Power Input
GND
Power Ground
Earth Ground
Pin
Regular Ports
1
Input Receive Data +
2
Input Receive Data -
3
Output Transmit Data +
4
NC
5
NC
6
Output Transmit Data -
7
NC
8
NC
Uplink port
Output Transmit Data +
Output Transmit Data -
Input Receive Data +
NC
NC
Input Receive Data -
NC
NC
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lantronix XPress-Pro SW 52000
Summary of Contents for Lantronix XPress-Pro SW 52000
-
Page 1: Physical Description
XPress-Pro SW 52000 Quick Start This quick installation guide describes how to install and use the hardened compact Ethernet Switch. Capable of operating at temperature extremes of -10°C to +60°C, this is the switch of choice for harsh environments constrained by space. -
Page 2: Functional Description
The Port Status LEDs State Indication 10/100TX or 100FX A valid network connection established. Steady LINK stands for LINK. LINK/ACT Transmitting or receiving data. Flashing ACT stands for ACTIVITY. Steady The port is transferring at 100Mbps. The port is transferring at 10Mbps If this LED is dark.
