This quick installation guide describes how to install and use the hardened managed compact Ethernet Switch.
extremes of -34°C to +74°C, this is the switch of choice for harsh environments constrained by space.

Physical Description

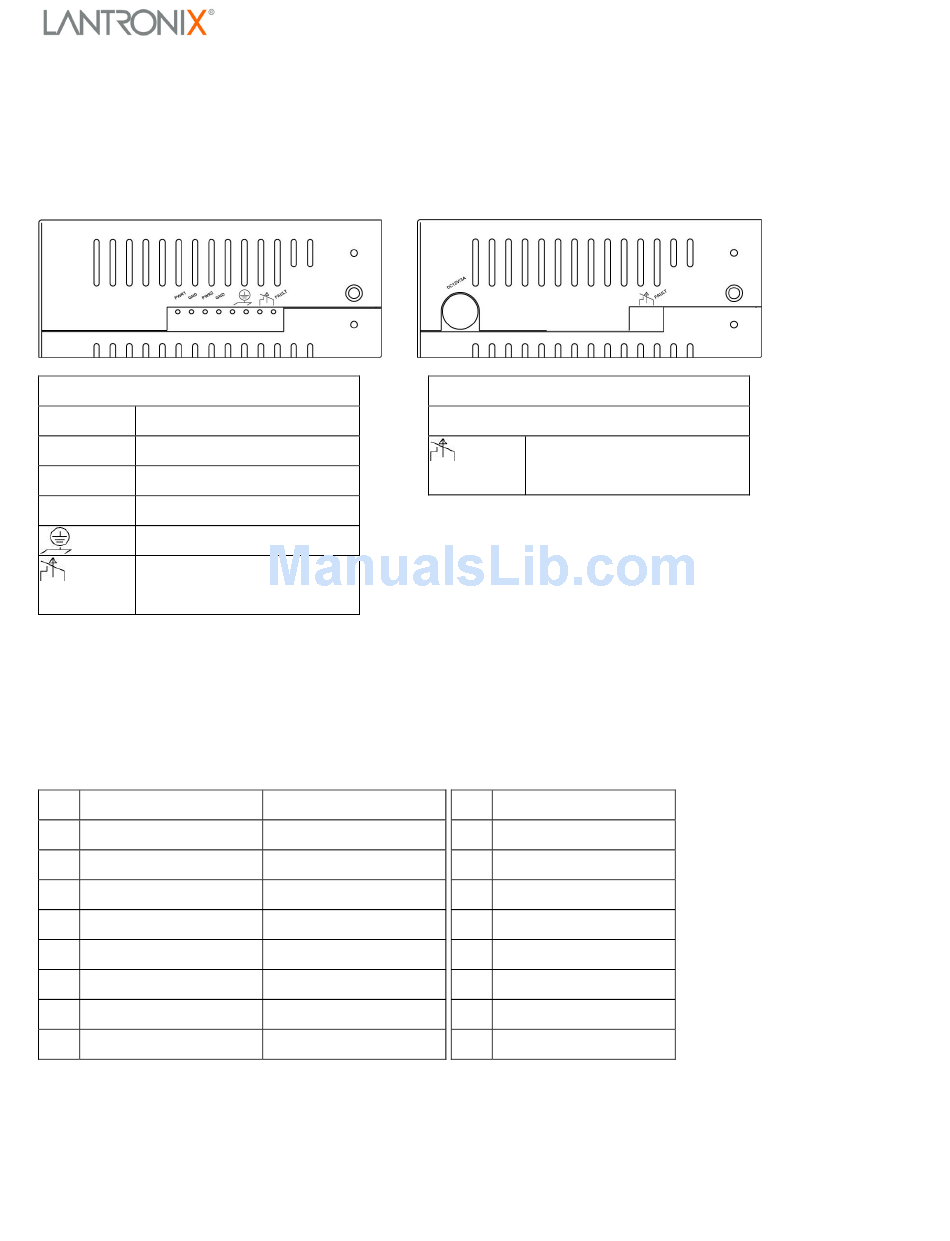

The Terminal Block and Power Inputs
The Terminal Block
PWR1
Power Input 1 (+24VDC)
GND
Power Ground
PWR2
Power Input 2 (+24VDC)
GND
Power Ground
Earth Ground
The relay opens if PWR1 or PWR2
FAULT
fails (1A)
DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this media converter. Redundant power supplies function is
supported. You only need to have one power input connected to run the Switch.
The 10/100BaseTX, 10/100/1000TX, 100BaseFX, and 1000BaseSX/LX Connectors
The 10/100BaseTX Connections
The following lists the pinouts of 10/100BaseT/TX ports.
Pin
Regular Ports
1
Input Receive Data +
2
Input Receive Data -
3
Output Transmit Data +
4
NC
5
NC
6
Output Transmit Data -
7
NC
8
NC
Part Number 900-506a
May 2007
XPress-Pro SW 94000 Quick Start
The DC Power Inputs
12VDC DC JACK
The 10/100/1000BaseTX Connections
The following lists the pinouts of 10/100/1000BaseTX ports.
Uplink port
Output Transmit Data +
Output Transmit Data -
Input Receive Data +
NC
NC
Input Receive Data -
NC
NC
The relay opens if PWR1 or PWR2
FAULT
fails (1A)
Pin
Ports
1
A+
2
A-
3
B+
4
C+
5
C-
6
B-
7
D+
8
D-
Capable of operating at temperature
1
