Summary of Contents for Lantronix Xpress-Pro SW 52012F

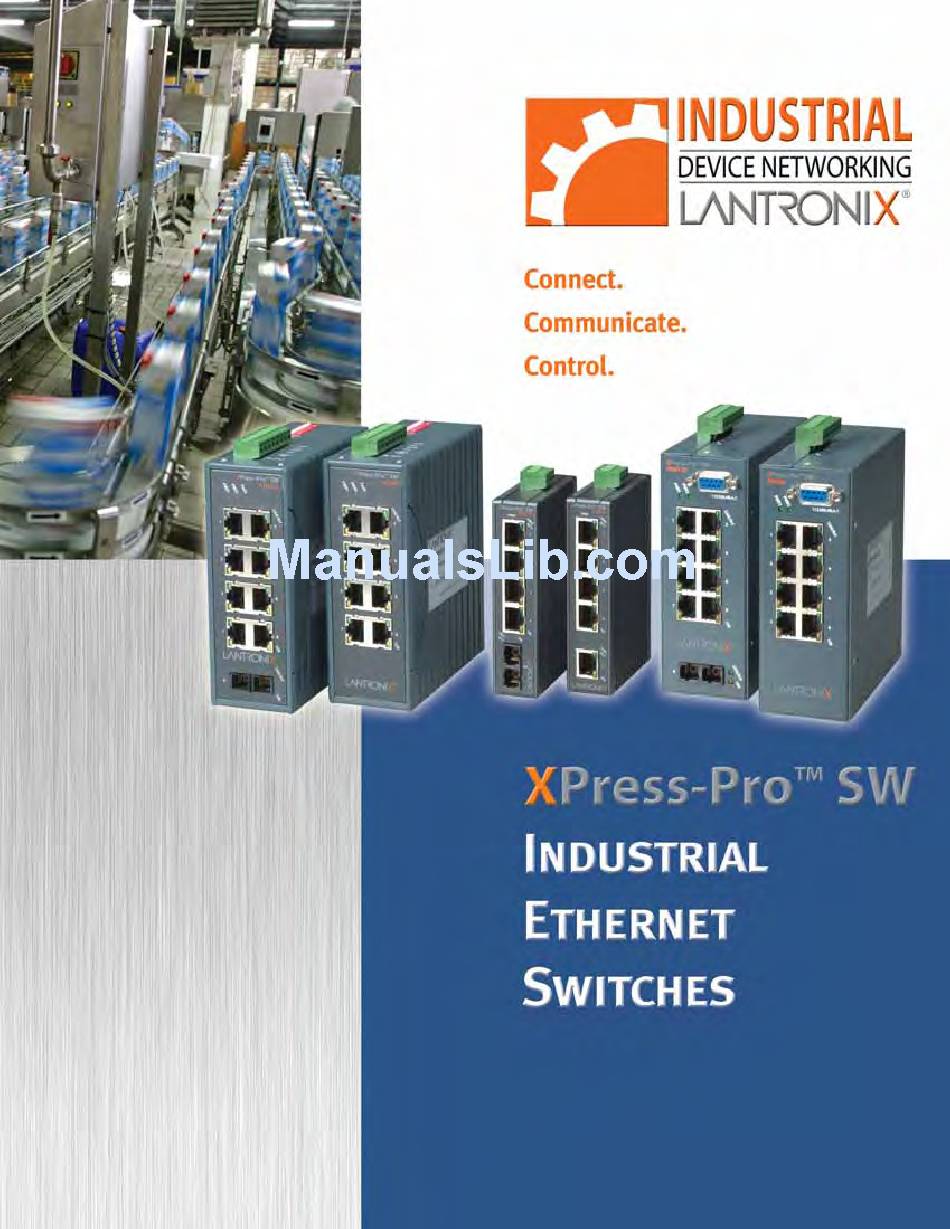

  • Page 2 XPress-Pro SW Series Hardened Ethernet Switches Enabling Communication for the Demanding Industrial Environment Part of the DeviceLinx ™ family of network- enablement products, XPress-Pro managed and unmanaged Ethernet switches are designed to give you performance you can count on in harsh industrial environments. Whether they’re on the factory floor or in the field, XPress-Pro switches will provide flawless communication when you need it most.
  • Page 3 Alarm Din Rail 24VDC Redundant power supply XPress-Pro SW PWR1 PWR2 94000 Workstation 100BASE Backup Path PWR1 XPress-Pro SW PWR2 94000 SCADA Workstations Conveyor Belt Server XPress-Pro 8-port models feature redundant power inputs and a relay for power failure alarms. XPress-Pro Industrial Ethernet Switches are DIN-rail mountable and offer:...
  • Page 4 XPress-Pro SW 94000 Series The XPress-Pro SW 94000 is a managed Ethernet switch, allowing the user to log in and create virtual LANs, configure ports, mirror ports and more. SW 94000 switches deliver the flexibility of eight 10/100 Ethernet ports with an optional fiberoptic interface. XPress-Pro SW 94000 switches can be DIN-rail, shelf or wall mounted, and come with dual redundant power inputs via a terminal block.

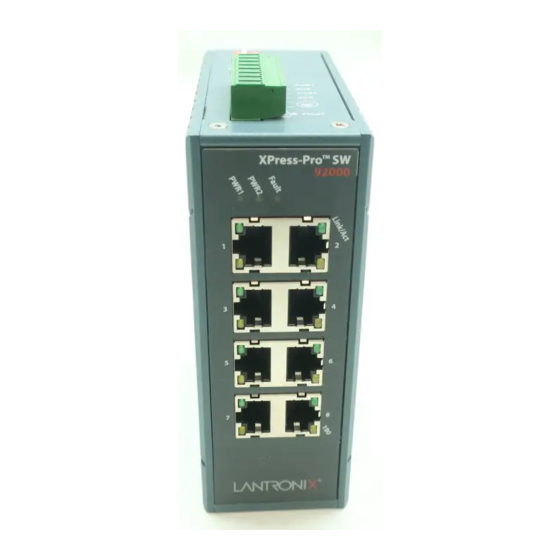

  • Page 5 XPress-Pro SW 92000 switches offer eight 10/100 Ethernet ports and an optional fiberoptic interface. They can be DIN-rail, shelf or wall mounted, and come with dual redundant power inputs to fit applications requiring a tough, environmentally hardened Ethernet switch. 92000 Diagram >...
  • Page 6 The XPress-Pro SW 52000 compact, fast Ethernet switches are equipped with 5-port 10/100Base-TX or 4-port 10/100Base-TX plus a fiberoptic interface. By using standard auto-negotiation and the inclusion of auto-MDIX, Lantronix delivers a cost-effective way of integrating legacy 10 Mbps networks with 100 Mbps fast Ethernet networks.
  • Page 7 XPress-Pro SW Model: Designation Typical Distance Nominal Wavelength Cable Type Connector Optical Budget Serial Interface 5-port 10/100Base-TX or 4-port 10/100Base-TX plus 1-port 100Base-FX Forward and Filtering Rate 14,880 pps for 10 Mbps 148,810 pps for 100 Mbps Address Table Size 2048 MAC addresses Latency Less than 5.1 µs...
  • Page 8: Ordering Information

    Irvine CA 92618 ©2007, Lantronix, Inc. Lantronix is a registered trademark and XPress-Pro and DeviceLinx are trademarks of Lantronix, Inc. All other trademarks are the property of their respective owners. Specifications subject to change without notice. All rights reserved. Tel: 800.422.7055 Fax: 949.450.7232...
