Lantronix SM TAT4X Series Install Manual

Managed gigabit ethernet poe+ switch (48) 10/100/1000base-t ports + (4) 1g/10gbase-x sfp+ ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
(48) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports
(24) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports
SMxxTAT4Xx Family
SM48TAT4XA-RP
Managed Gigabit Ethernet PoE+ Switch
Managed Gigabit Ethernet PoE+ Switch
SM24TAT4XB
Install Guide
Part Number 33785
Revision F February 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM TAT4X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lantronix SM TAT4X Series

Summary of Contents for Lantronix SM TAT4X Series

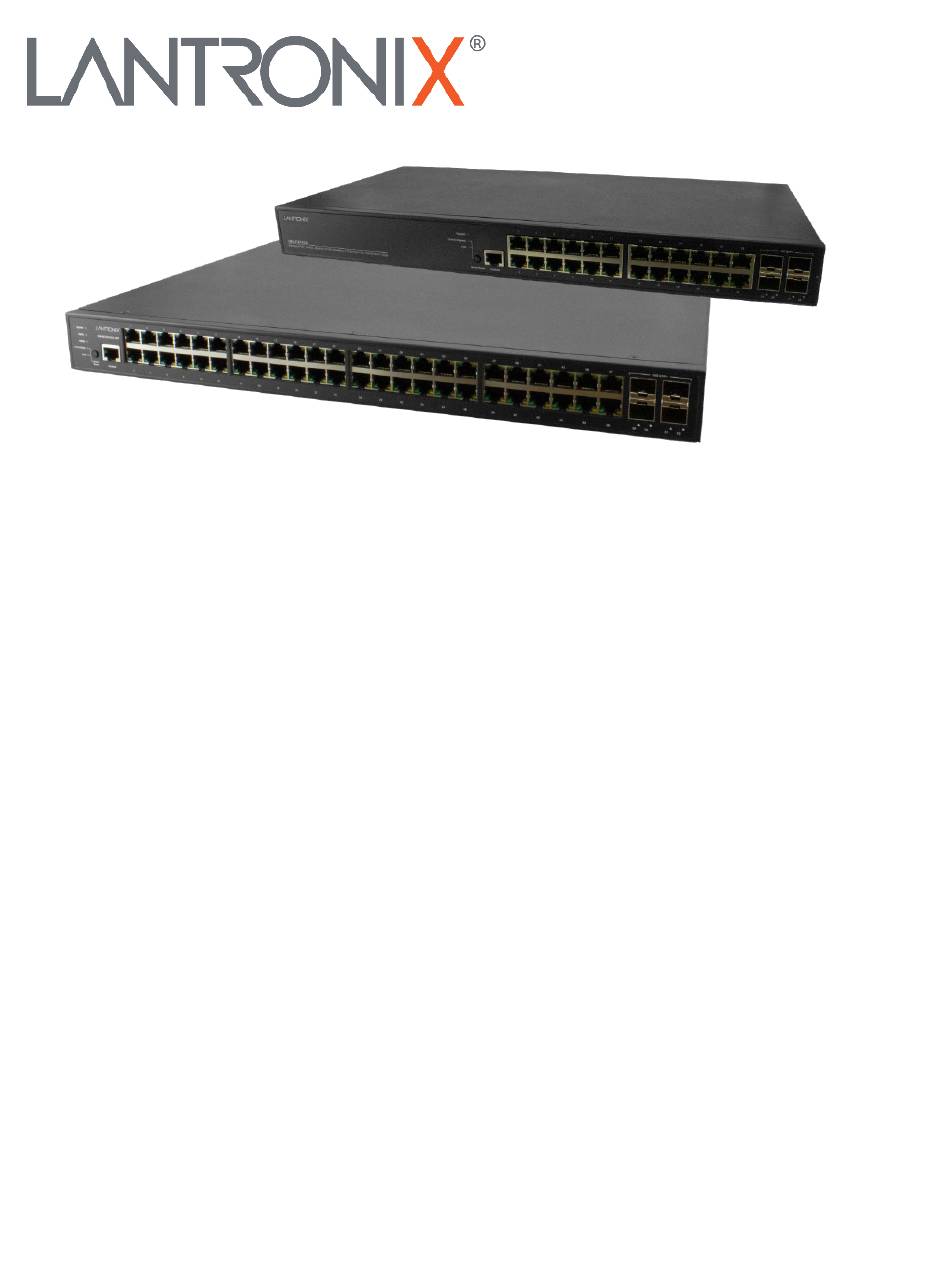

  • Page 1 SMxxTAT4Xx Family SM48TAT4XA-RP Managed Gigabit Ethernet PoE+ Switch (48) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports SM24TAT4XB Managed Gigabit Ethernet PoE+ Switch (24) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports Install Guide Part Number 33785 Revision F February 2023...
  • Page 2 Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.

  • Page 3: Safety Warnings And Cautions

    Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale.

  • Page 4: Table Of Contents

    Lantronix SMxxTAT4Xx Install Guide Contents Safety Warnings and Cautions ............................. 3 Product Description ..............................6 Ordering Information ..............................6 Specifications ................................8 Power Consumption ..............................15 SM48TAT4XA-RP Power Consumption......................15 SM24TAT4XB Power Consumption ........................16 About This Manual ..............................18 Related Information ..............................
  • Page 5 Lantronix SMxxTAT4Xx Install Guide Initial Switch Configuration ............................35 Initial Switch Configuration via Web Browser ......................35 Initial Switch Configuration via CLI ..........................36 Troubleshooting................................37 Basic Troubleshooting ............................37 LED Troubleshooting............................37 PoE Troubleshooting ............................38 Compliance Information .............................39 Declaration of Conformity ..........................39 FCC Regulations ...............................

  • Page 6: Product Description

    24-port Gigabit PoE+ with (4) 1G/10G SFP+ slots, 370 Watts PoE budget. Secondary Power Supply for redundant power support (920 Watts). Optional; sold PS-AC-920 separately (5 year warranty). SFPs and SFP+ See Lantronix full line of SFP transceivers on our SFP webpage (option; order Modules separately) BRSM24-01 Wall Mount Bracket for SM24TAT4XB (option;...
  • Page 7 Lantronix SMxxTAT4Xx Install Guide Centralized cloud-based or on-premise Management Software for Lantronix PoE Switches, Remote Environment Management (REM) and IoT Gateway products. For ConsoleFlow ConsoleFlow cloud-based software-as-a-service, select an annual subscription model. CF-NWSCLOUDSAAS- ConsoleFlow Cloud Subscription x-Years (where x = 1, 3, or 5 year subscription)

  • Page 8: Specifications

    Lantronix SMxxTAT4Xx Install Guide Specifications Port Configuration Model Total Ports RJ45 (10M/100M/1G) Uplinks Console SM48TAT4XA-RP 4 SFP+ RJ45 SM24TAT4XB 4 SFP+ RJ45 Hardware Performance Model Forwarding Capacity Switching Capacity Mac Table Jumbo Frames SM48TAT4XA-RP 130.944 Mpps 176 Gbps 32 K...
  • Page 9 Lantronix SMxxTAT4Xx Install Guide PoE Power Capacity Available PoE Model # of Ports that support PoE (15.4W) and PoE+ (30.0W) Power Each of ports 1 - 48 support PoE/ PoE+ within available PoE power. Up to 820 W PoE budget with single power supply (15W on all 48 ports or...
  • Page 10 Lantronix SMxxTAT4Xx Install Guide Software Features Ring Management ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection Switching (EPS) ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) Layer 2 Switching Standard Spanning Tree 802.1d: an OSI layer-2 protocol which ensures a loop free ...
  • Page 11 Lantronix SMxxTAT4Xx Install Guide GARP VLAN GVRP (Generic Attribute Registration Protocol) VLAN Registration Protocol is a Layer 2 Registration Protocol network protocol, for automatic configuration of switches in a VLAN network (GVRP) Relay of DHCP traffic to DHCP server in different VLAN ...
  • Page 12 Lantronix SMxxTAT4Xx Install Guide SSL encrypts the HTTP traffic, allowing advanced secure access to the browser-based Secure Sockets Layer (SSL) management GUI in the switch Hyper Text Transfer Protocol Secure (HTTPS) is the secure version of HTTP HTTPs (Secured Web) BPDU guard, an enhancement to STP, removes a node that reflects BPDUs back in the network.
  • Page 13 Lantronix SMxxTAT4Xx Install Guide Remote Monitoring Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, (RMON) and events) for enhanced traffic management, monitoring and analysis Web browser upgrade (HTTP/ HTTPs) and TFTP  Firmware Upgrade Upgrade via console port as well ...
  • Page 14 ConsoleFlow • Perform secure remote device firmware upgrades • Lantronix-hosted public cloud offering Lantronix Provisioning Manager allows easy administration of Lantronix devices. LPM lets you quickly update firmware, update configuration, and provision one or more devices simultaneously. 33785 Rev. F...

  • Page 15: Power Consumption

    Lantronix SMxxTAT4Xx Install Guide Power Consumption SM48TAT4XA-RP Power Consumption 2-module Power AC 100V Input AC Current AC Voltage Power Apparent Real Power Status Operation Interface Consumption Factor Power (VA) Full-loading 1G TP Port x 48 16.74 0.97 1674.00 1623.78 60 minutes later...

  • Page 16: Sm24Tat4Xb Power Consumption

    Lantronix SMxxTAT4Xx Install Guide SM24TAT4XB Power Consumption AC Power Consumption: Measure AC power consumption after 60 minutes under full loading with wire speed forwarding. 1. AC 100V Input (SM24TAT4XB) AC Current Operation AC Voltage Power Apparent Real Power Device Status...
  • Page 17 Lantronix SMxxTAT4Xx Install Guide 3. AC 220V Input (SM24TAT4XB) AC Current AC Voltage Power Apparent Real Power Device Status Operation Interface Consumption Factor Power (VA) Non-loading None 0.22 0.56 48.40 27.10 Standby mode 1G TP Port x 24 1.99 0.98 437.80...

  • Page 18: About This Manual

    • Troubleshoot the switch. Note that this manual provides links to third party web sites for which Lantronix is not responsible. Related Information A printed Quick Start Guide is shipped with each switch. For Lantronix Documentation, Firmware, App Notes, etc.

  • Page 19: Front Panels

    Lantronix SMxxTAT4Xx Install Guide Front Panels The SM24TAT4XB and the SM48TAT4XA-RP front panel contain the Ports, LEDs, Console Port, and Mode/Reset button as shown and described below. SM48TAT4XA-RP front panel: SM24TAT4XB front panel: Ports The front panel data ports are described below.

  • Page 20: 1G/10G Sfp+ Ports

    Lantronix SMxxTAT4Xx Install Guide 1G/10G SFP+ Ports The SM48TAT4XA-RP and the SM24TAT4XB both provide four SFP+ uplink ports. SM24TAT4XB: SM48TAT4XA-RP: LED Descriptions The front panel LEDs provide switch status checking and monitoring. There are four types of LEDs as follows: System LED: Indicates if the switch is powered up correctly or indicates if there is a system alarm triggered for troubleshooting.
  • Page 21 Lantronix SMxxTAT4Xx Install Guide Port Status LEDs: Table 3: Color Function For Ethernet Mode: • 1G Link/Act: Green Color # RJ45 Port Left LED Behavior: => Light off: port disconnected or link failed => Green Light on: Link Present, No Activity...
  • Page 22 Lantronix SMxxTAT4Xx Install Guide SFP+ Link up at 10G speed Table 4: Mode LEDs Color Function • SYS: Green/Red Bi-Color POWER/Alarm Light off: Power Off Green Lit: Indicates the switch in power on system initialization Green/Red process. => Red Lit: Indicates a malfunction. Contact technical support =>...
  • Page 23 Lantronix SMxxTAT4Xx Install Guide By pressing the Mode/Reset button for less than 2 seconds to change LED modes (Link/Act/Speed Mode or PoE Mode) you can check the port status by reading the LED behaviors per the table below. Table 4: Port Status LEDs...

  • Page 24: Mode/Reset Button

    Lantronix SMxxTAT4Xx Install Guide Mode/Reset button By pressing the Mode/Reset Button for certain period of time, you can perform the following tasks. Change Port Status LED Mode: To read the port status correctly in the two different modes (Link/Act/Speed mode or PoE mode).

  • Page 25: Back Panels

    Lantronix SMxxTAT4Xx Install Guide Back Panels The SM48TAT4XA-RP back panel contains the AC Power Connector(s), DC and AC LEDs, and a second AC Power Connector. SM24TAT4XB back panel contains the AC Power Connector. AC Power Connector The back panel provides the AC Power Connector marked AC Line: 100-200V 50-60Hz.

  • Page 26: Electrical Safety Warnings

    Lantronix SMxxTAT4Xx Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne.

  • Page 27: Installation

    Lantronix SMxxTAT4Xx Install Guide Installation Package Contents Carefully unpack the switch from the packaging and verify you have received the items below. Save the packaging for possible future use. One Switch  One AC Power cord (Option)  Four adhesive rubber feet ...

  • Page 28: Mounting The Switch In A 19-Inch Rack

    Lantronix SMxxTAT4Xx Install Guide Mounting the Switch in a 19-inch Rack 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten then with a screwdriver to secure the brackets. Place the switch on a rack shelf in the rack. Push it in until the oval holes in the brackets align with the mounting holes in the rack posts.

  • Page 29: Installing Sfp+ Modules

    You can install or remove a mini-GBIC SFP+ module from a 1G/10G SFP+ Ports SFP+ port without having to power off the switch. Note: The SFP+ ports should use UL Listed Optional Transceiver product, Rated 3.3Vdc, Laser Class 1. See the SFP manual for specific cautions, warnings, and instructions. See the Lantronix SFP webpage for our full range of Optical Devices.

  • Page 30: Connecting Powered Devices (Pds)

    Lantronix SMxxTAT4Xx Install Guide Connecting Powered Devices (PDs) Note that this device does not comply with IEEE 802.3at at 48-51.4 VDC, or with IEE 802.3bt at 48-53.4 VDC. The latest device label indicates: • 802.3af: 48-57VDC • 802.3at: 52-57VDC • 802.3bt: 54-57VDC This device drops ~1.3V from Vin to PSEout.

  • Page 31: Redundant Power (Sm48Tat4Xa-Rp Only)

    Lantronix SMxxTAT4Xx Install Guide Redundant Power (SM48TAT4XA-RP Only) The SM48TAT4XA-RP supports two power supplies for power redundancy. 1. Use a screw driver to remove the power plate cover. 2. Carefully insert the new Power Supply into the chassis slot until the Locking Lever clicks.

  • Page 32: Power Supply Voltage And Frequency

    Lantronix SMxxTAT4Xx Install Guide Note: The switch supports dual redundant power supplies and they are hot-swappable. You can apply the AC power cord to any AC receptacle of the switch. If only one power supply is installed, it can be installed in either bay.

  • Page 33: Replacing Power Supply

    Lantronix SMxxTAT4Xx Install Guide Procedure If using only one power supply, it can be installed in either power supply bay, and the Face Plate must be installed in the other bay. 1. Remove the blank Face Plate to use the one open Power Supply slot. Save the Face Plate and screws.

  • Page 34: Poe Vs. Poe+ Vs. Poe

    Lantronix SMxxTAT4Xx Install Guide PoE vs. PoE+ vs. PoE++ PoE was first developed to power Voice over Internet Protocol (VoIP) phones. In 2001 and 2002, Wireless Access Point makers, and other manufacturers took advantage of the technique. Per IEEE 802.3af, PoE can use a single, standard RJ45 connector and CAT 5 (or even CAT 3) cable.

  • Page 35: Initial Switch Configuration

    Lantronix SMxxTAT4Xx Install Guide Initial Switch Configuration Initial Switch Configuration via Web Browser After powering up the switch for the first time, you can perform the initial switch configuration using a web browser. For managing other switch features, see the Web User Guide.

  • Page 36: Initial Switch Configuration Via Cli

    Lantronix SMxxTAT4Xx Install Guide If your PC is configured correctly, the Login page displays as shown. If you do not see the Login page, perform these steps: • Refresh the web page. Check to see if there is an IP conflict issue.

  • Page 37: Troubleshooting

    Lantronix SMxxTAT4Xx Install Guide Troubleshooting This section provides information to troubleshoot problems by taking actions based on the suggested solutions. Basic Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see Specifications on page check the Release Notes for your particular version.

  • Page 38: Poe Troubleshooting

    Lantronix SMxxTAT4Xx Install Guide PoE Troubleshooting 1. Get as much detail as possible regarding the symptom, including any system messages from the PoE switch. For example, does a PD not power up at all, or does it power up briefly and then power down? 2.

  • Page 39: Compliance Information

    Lantronix SMxxTAT4Xx Install Guide problem, while other switches or PDs may show a greater immunity to the problem. This is a typical occurrence during lightning storms or AC power maintenance. In a worst-case scenario, a PoE power supply may appear to shut down, with no PoE output voltage to any port. It’s possible the switch’s Ethernet functions appear normal, and only the PoE functions are disrupted or degraded, or the switch may power down completely due to the AC disturbance.

  • Page 40: Canadian Regulations

    Lantronix SMxxTAT4Xx Install Guide Canadian Regulations This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté...

  • Page 41: Record Device And System Information

    Describe any action(s) already taken to resolve the problem (e.g., changing mode, rebooting, etc.): ________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ The model and serial numbers of other Lantronix devices in the network: _________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Describe your network environment (layout, cable type, etc.): ________________________________________________________...

  • Page 42: Rma Form 02 Dec 2022

    Lantronix SMxxTAT4Xx Install Guide RMA Form 02 Dec 2022 Return Material Authorization Request Form 2022 The address below is where the unit(s) will be returned to once completed: Customer Company Customer Street and Number Customer Town or City Customer State or County...
  • Page 43 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support https://www.lantronix.com/technical-support/ Online: Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33785 Rev. F https://www.lantronix.com/...
