The Port Status LEDs

Functional Description

Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto MDI/MDIX.
100BaseFX: Multi mode SC and ST type; Single mode SC or ST type; WDM Single mode SC type.
Support 2K MAC addresses.
Store-and-forward mechanism.
Full wire-speed forwarding rate and non-blocking mechanism.
Broadcast storm filtering.
Operating voltage and Max. current consumption: 12VDC @ 0.71A, 24VDC @ 0.37A, 48VDC @ 0.22A. Power consumption: 10.56W Max.
Power Supply: DC Terminal Block power input, 10-48VDC.
Operating temperature ranges from -10℃ to 60℃.
Plastic compact Din-rail industrial case design.

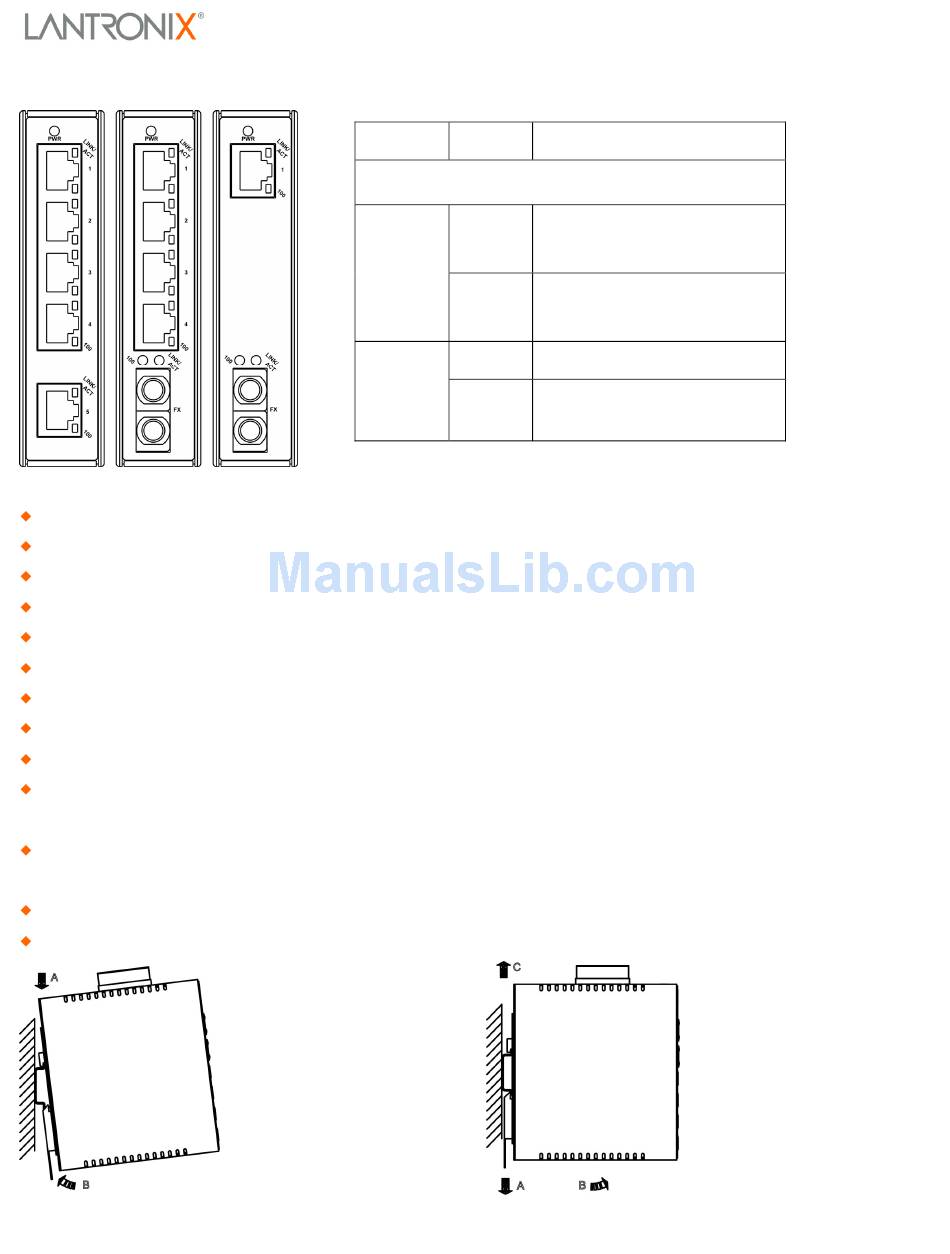

Assembly, Startup, and Dismantling
Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps
into place.
Startup: Connect the supply voltage to start up the switch via the terminal block.
Dismantling: Pull out the lower edge and then remove the switch from the DIN rail.
LED State Indication
10/100TX or 100FX
A valid network connection established.
Steady
LINK stands for LINK.
LINK/ACT
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
Steady The port is transferring at 100Mbps.
100
The port is transferring at 10Mbps If this
Off
LED is dark.
