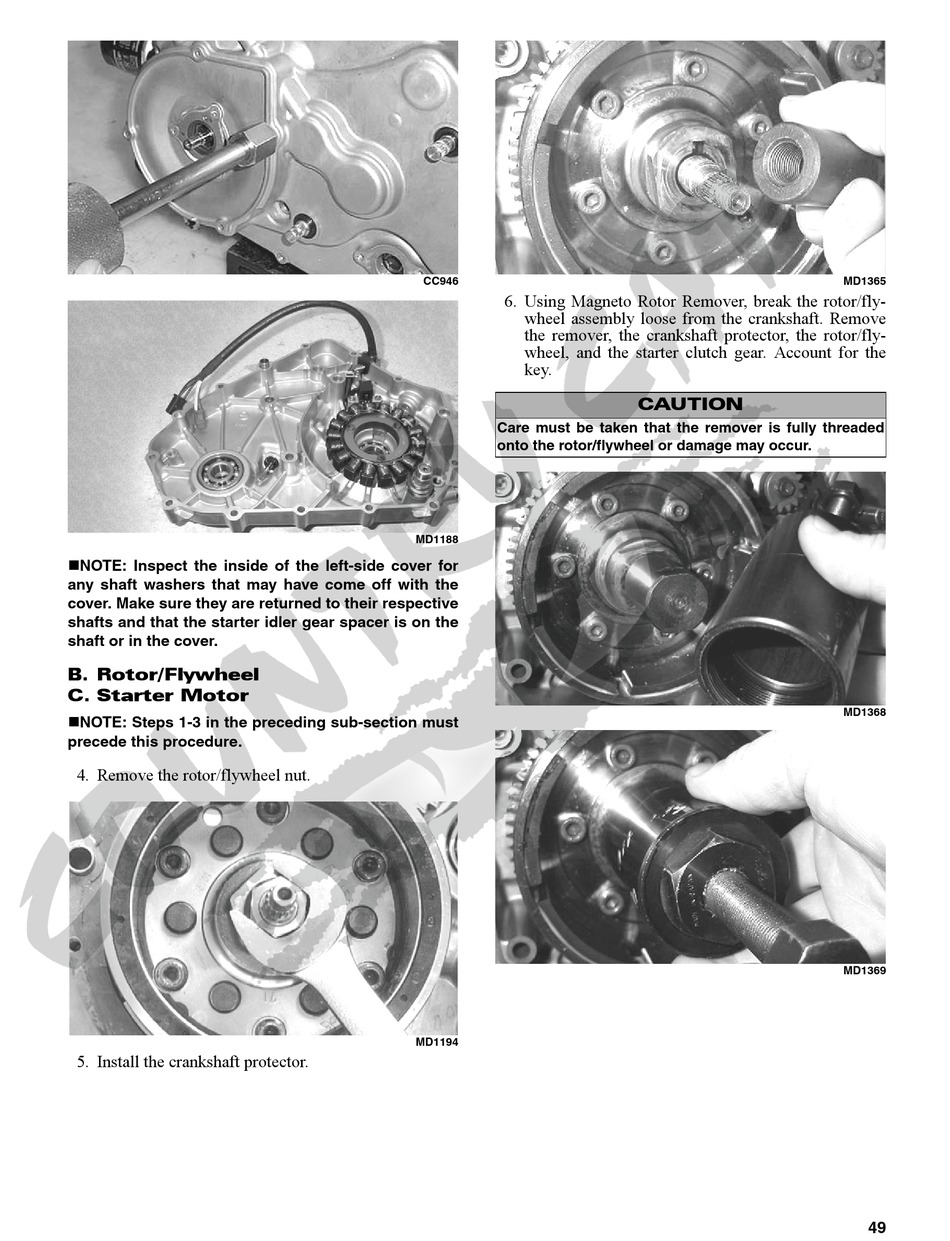

Arctic Cat 2015 400 Service Manual page 51

 NOTE: Inspect the inside of the left-side cover for
any shaft washers that may have come off with the
cover. Make sure they are returned to their respective
shafts and that the starter idler gear spacer is on the
shaft or in the cover.
B. Rotor/Flywheel
C. Starter Motor
 NOTE: Steps 1-3 in the preceding sub-section must
precede this procedure.
4. Remove the rotor/flywheel nut.
5. Install the crankshaft protector.
CC946
6. Using Magneto Rotor Remover, break the rotor/fly-
wheel assembly loose from the crankshaft. Remove
the remover, the crankshaft protector, the rotor/fly-
wheel, and the starter clutch gear. Account for the
key.
Care must be taken that the remover is fully threaded
onto the rotor/flywheel or damage may occur.
MD1188
MD1194
CAUTION
MD1365
MD1368
MD1369
49
