4-3 RECEIVE ADJUSTMENTS

Select an adjustment item using [MONI]/[QUICK], and then set the adjustment value as specified using [DIAL].
ADJUSTMENT ITEM
66
RECEIVE
SENSITIVITY
67
68
69
70
71
72
73
74
75
RECEIVE
SENSITIVITY
(continued)
76
77
NOTE: The displayed adjustment frequency is only an example, and the frequency will differ depending on the transceiver version.
†
: The output level of the standard signal generator (SSG) is indicated as the SSG's open circuit.

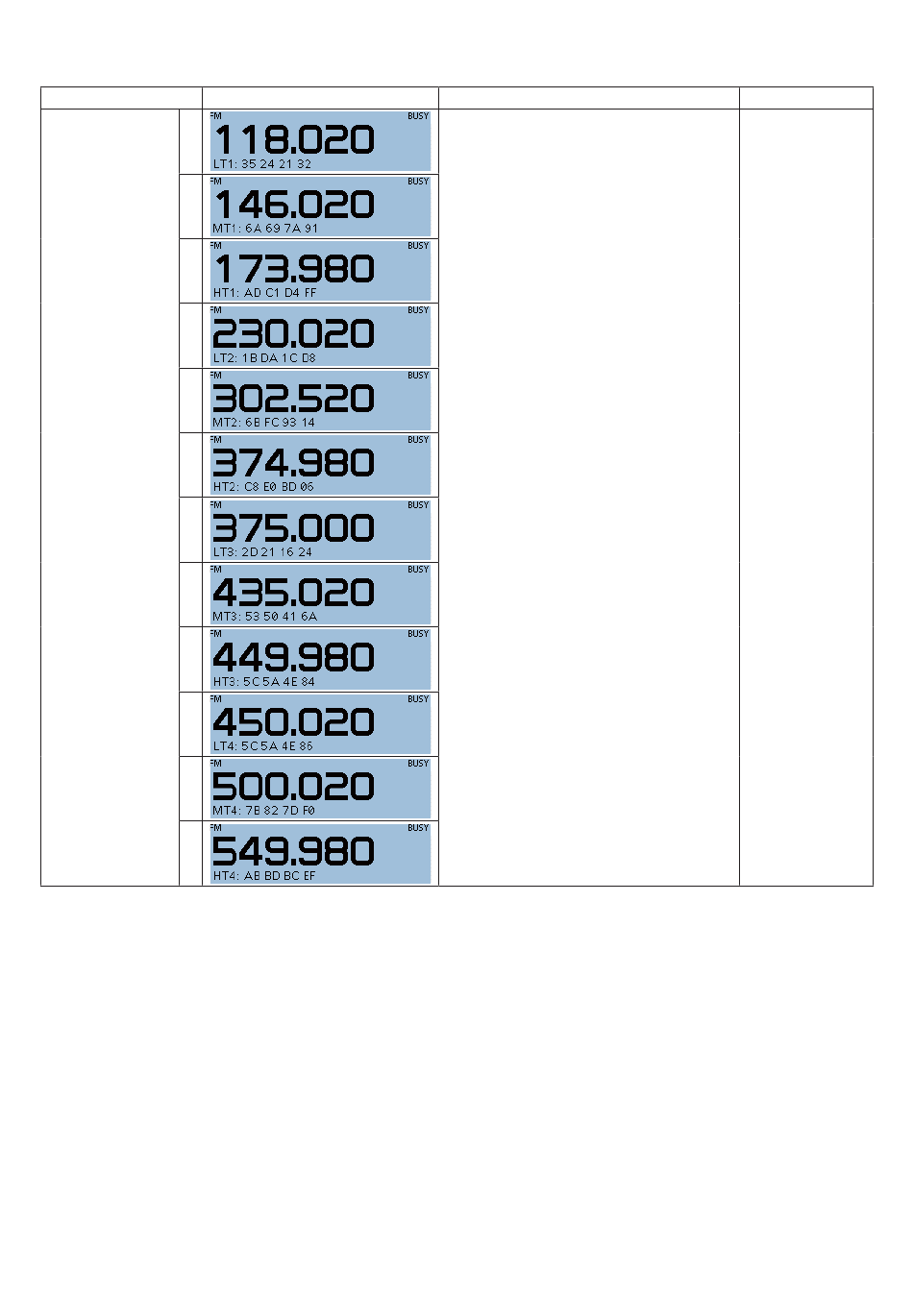

TRANSCEIVER'S DISPLAY CONDITION
• Connect the test equipment to the antenna
connector and set as shown below:
Frequency: As displayed
Modulation: None
Output level: 0 dBμ (–107 dBm)
†
• Receive
• Connect an SSG to the antenna connector
and set as shown below:
Frequency: As displayed
Modulation: Non
Output level: 0 dBμ
• Receive
5-7
VALUE
Push [DIAL]
for automatic
adjustment.
Push [DIAL]
for automatic
adjustment.
