Docomo SH-03E Instruction Manual page 28

When the charge alert is not heard or when the
charging LED does not illuminate, check that
the FOMA terminal is placed securely on the
desktop holder (except when the handset is
turned off, the manner mode is set or the
charge alert is [OFF]).
When placing the FOMA terminal on the
desktop holder, be careful not to let a strap etc.
caught.

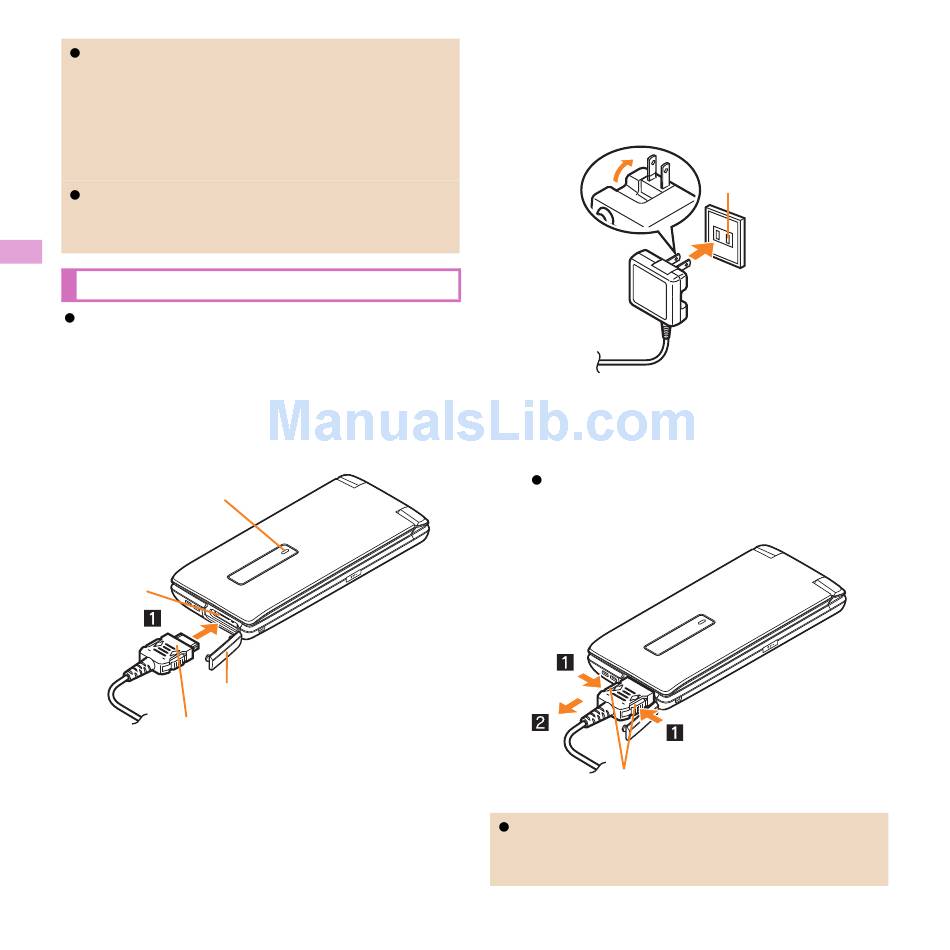

Charging by using AC adapter
Read the user's guide of FOMA AC Adapter 01/
02 (sold separately).
1
Open the external connector
terminal cover and insert the AC
adapter horizontally into the
external connector terminal (1)
Charging LED
External
connector
terminal
External connector terminal cover
Connector (with
the arrow side up)
26
Basic Operation
2
When inserting the AC adapter
power plug into an outlet, the
charge alert is heard, the charging
LED illuminates and charging starts
3
When charging is complete, the
charge alert is heard and the
charging LED turns off
When removing the connector, always hold
the release buttons on both sides (1) and
unplug it horizontally (2).
Release buttons
Do not forcibly insert or remove. May cause
damage to the external connector terminal and
the connector or result in a malfunction.
100V AC
outlet
