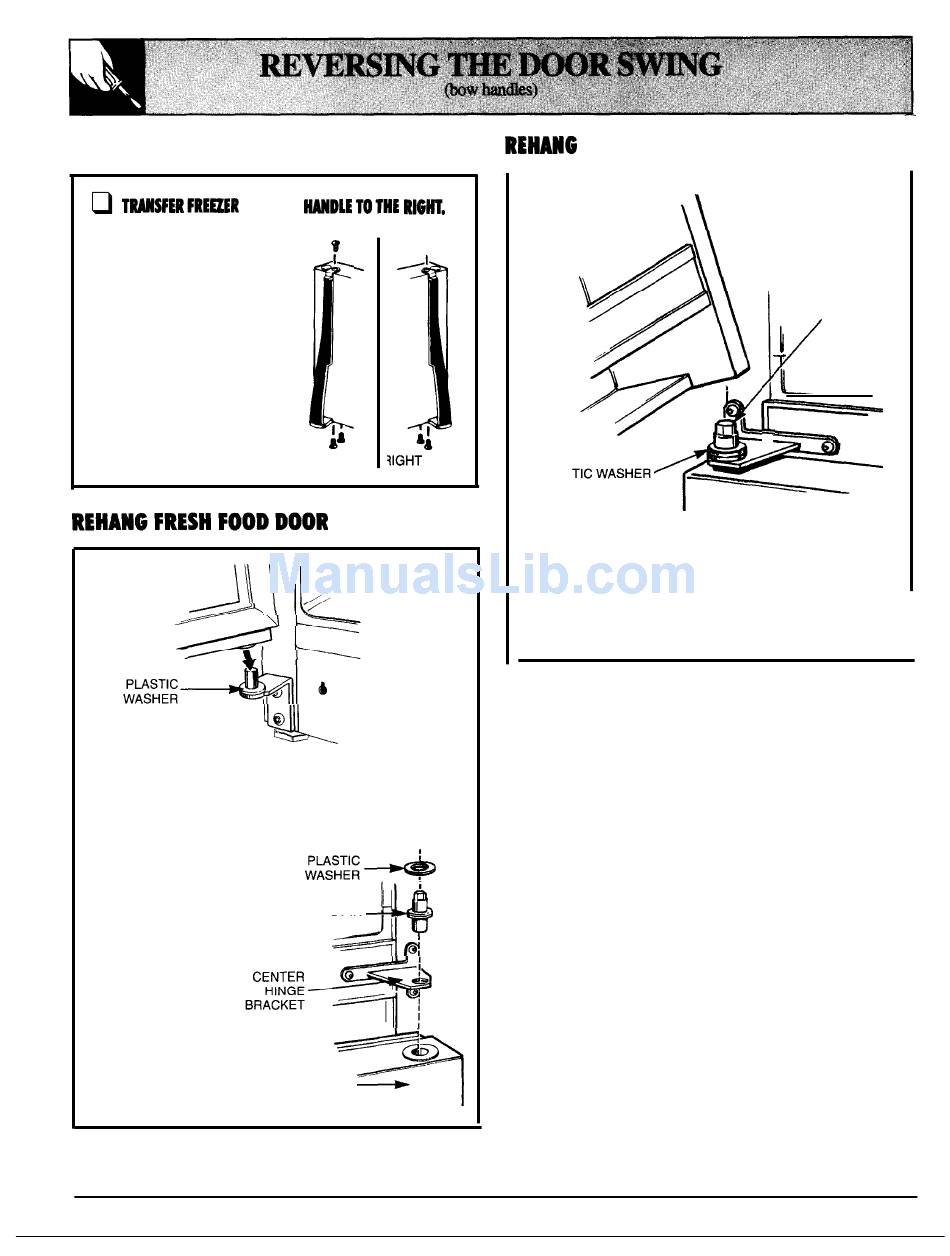

REVERSE DOOR HANDLES
a. Remove one screw
holding handle to top of
door and two screws
holding handle to bottom of
door.
b. Remove handle.
c. Transfer handle screw
from right edge of door top
and plug button from left
edge of door top to opposite
side.
d. Attach handle to right
side of door with screws
removed in step (a) above.
a. Lower bottom socket of fresh food door onto pin
on bottom hinge bracket. Be sure washer is in place.
b. Tilt door toward cabinet and gently push door
under center hinge bracket and align with the hole
in the center hinge bracket.
c. Reinstall hinge
pin with a 3/8"
socket and ratchet so
it extends through
hole in center hinge
bracket and into
socket on top of
fresh food door.
FRESH FOOD DOOR
22
(continued)
LEFT SIDE
:
HINGE PIN
-
PLAS
a. Lower bottom socket of freezer door onto
center hinge pin. Be sure washer is in place.
b. Tilt door toward cabinet, lifting the top hinge so
the pin fits into the socket on top of the door.
c. Tighten the top hinge screws after supporting
the door on the handle side and aligning so the gap
between the doors is even all across the front.
CENTER
HINGE PIN
I
