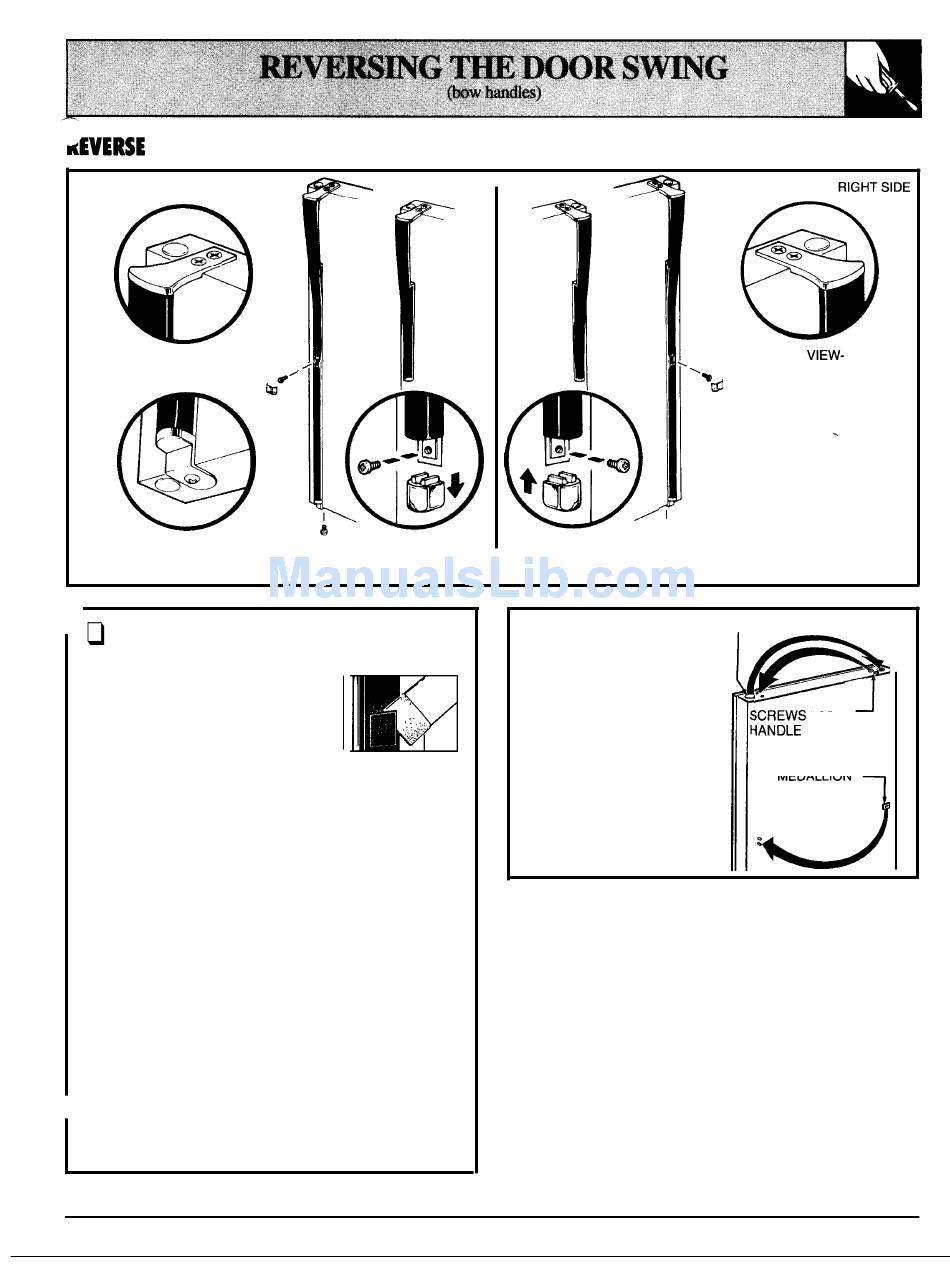

TRANSFER FRESH FOOD DOOR HANDLE TO
THE RIGHT.
LONG HANDLE
a. Remove handle plug using
putty knife under edge, and
remove screw underneath.
b. Remove two screws holding handle to top of door
and remove screw holding handle to bottom of door.
c. Remove handle.
d. Attach handle to right side of door with screws at
top and bottom and under handle plug.
e. Replace handle plug.
SHORT HANDLE
a. Remove bottom cap by pushing it toward bottom
of door and remove screw underneath.
b. Remove two screws holding handle to top of
door.
c. Remove handle.
d. Attach handle to right side of door with two
screws at top of door.
e. Screw bottom of handle into place, and slide
bottom cap onto handle.
PLUG
BOTTOM VIEW-
SHORT HANDLES
PLUG
BOTTOM VIEW-
SHORT HANDLES
After removing the
fresh food door handle:
a. Remove screws from
right edge of door top
and insert them into
handle screw holes on
left side.
b. Remove plug button
from left edge of door
and insert it into hole on
opposite side.
c. Transfer medallion on
door to opposite side.
TOP VIEW-
BOTH HANDLES
. .
w'
@
BOTTOM ViEW-
LONG HANDLES
PLUG BUTTON
MEDALLION
.
