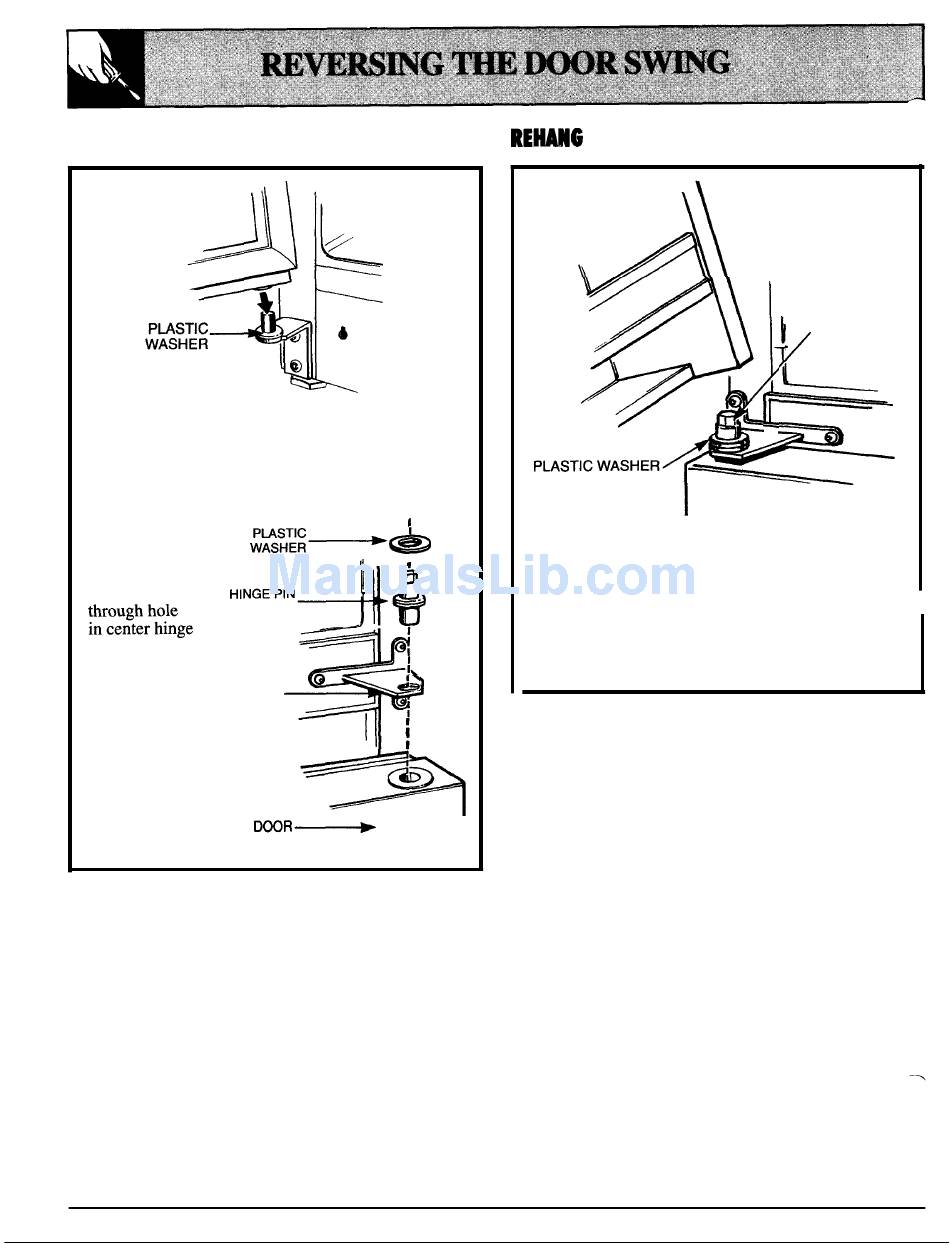

REHANG FRESH FOOD DOOR
a. Lower bottom socket of fresh food door onto
pin on bottom hinge bracket. Be sure washer is in
place.
b. Tilt door toward cabinet and gently push door
under center hinge bracket and align with the hole
in the center hinge bracket.
c. Reinstall hinge
pin with
a 3/8" socket
and ratchet
so it extends
bracket and into
socket on top of
CENTER
fresh food door.
HINGE
BRACKET
FRESH FOOD DOOR~
18
a.
Lower bottom socket of freezer door onto
center hinge pin. Be sure washer is in place.
I
,
b. Tilt door toward cabinet, lifting the top hinge so
the pin fits into the socket on top of
the door.
c. Tighten the top hinge screws after supporting
1
the door on the handle side and aligning so the gap
I
between the doors is even all across the front.
I
I
I
CENTER
HINGE PIN
