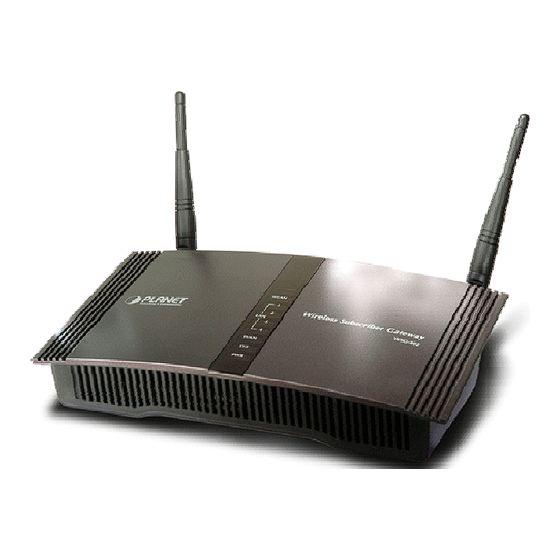

Planet Networking & Communication Hot Spot WSG-403 User Manual

Wireless subscriber gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hot Spot
Wireless Subscriber Gateway
WSG-403
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Planet Networking & Communication Hot Spot WSG-403

Summary of Contents for Planet Networking & Communication Hot Spot WSG-403

  • Page 1 Hot Spot Wireless Subscriber Gateway WSG-403 User’s Manual...
  • Page 3 Copyright Copyright (C) 2006 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
  • Page 4 WSG-403 User Guide...

  • Page 5: Table Of Contents

    Table of Contents 1. Introduction ......................................5 1.1 Package Contents ..................................5 1.2 Features......................................5 1.3 Precautions....................................6 1.4 Outlook ......................................6 1.4.1 Top Panel....................................6 1.4.2 Rear Panel..................................... 8 1.5 Technical Specifications................................. 8 1.5.1 Hardware Specifications................................ 8 1.5.2 Software Specifications ................................. 9 2.
  • Page 6 3.2.20 Session Trace.................................. 101 3.2.21 Bandwidth..................................101 3.2.22 Secure Remote ................................102 3.2.23 SNMP ....................................103 3.2.24 Wireless................................... 104 3.2.25 Account Generator ................................107 3.3 System Status.................................... 108 3.3.1 System....................................109 3.3.2 Account List ..................................110 3.3.3 Account Log..................................111 3.3.4 Current User ..................................

  • Page 7: Introduction

    1. Introduction The PLANET Wireless Subscriber Gateway – WSG-403 is a compact intelligent gateway integrated with a four-port port-based VLAN switch. It provides Plug’ Play Internet access, advanced security and network management. The WSG-403 is designed for service providers, system integrator or hotspot venue operator without backend-RADIUS-Server to have integrated solution for rapid deployment, which can start hotspot service quickly and easily and enhance service performance.

  • Page 8: Precautions

    IP/URL filtering Intelligent Management Built-in AAA (Authentication/Accounting/Authorization) and Billing mechanism Note: The "PnP" Function only can be used with TCP/IP-based Network. 1.3 Precautions Never remove or open the cover. You may suffer serious injury if you touch these parts. Never install the system in the wet locations. Use only the original fitting AC power adapter otherwise there is a danger of severe electrical shock.
  • Page 9 Figure 1-2 WSG-403 Top Panel Figure 1-3 LEDs LEDs Indication State Description The WSG-403 is not receiving electrical power. Green* The WSG-403 is receiving electrical power. The WSG-403 status is defective while PWR LED steady ON. Green The WSG-403 status is complete. Green ( Blinking)* During firmware upgrades, this sys...

  • Page 10: Rear Panel

    Note: Use only the bundled AC-DC adapter for the power system, other power adapter could damage the device permantly. During the firmware upgrade process, please do not power off the device, otherwise it could damage the device perman tly. 1.4.2 Rear Panel The rear panel of the WSG-403 is shown below.

  • Page 11: Software Specifications

    IEE802.3u 100Base-TX Fast Ethernet IEE802.11g Wireless LAN IEEE802.3af Power ove r Ethernet (mi d-span) Wi-Fi Compatible Connectors One RS-232 Port Four LAN Ports (10Base-T/100Base-TX Auto MDI) One WAN Port (10Base-T/100Base-TX Auto MDI) Encryption WEP (Wired Equivalent Privacy) 64/128-bit RC4 WPA (Wi-Fi Protected Access) External Antenna Type 2dBi (Max) Dual detachable diversity antenna with reverse SMA LED Indicators...
  • Page 12 • IEEE802.11b Wireless LAN • IEEE802 .11g Wireless LAN • Supports 100 Simultaneous User • IP Plug and Play (iPnP) • HTTP Proxy Support • SMTP Server Redirection • DHCP Server • DHCP Relay • Static IP WAN Client • DHCP WAN Client •...
  • Page 13 • Ma agement • Web-based Management Tool • Firmware Upgrade via HTTP/TFTP • Wizard se tup for step-by-step Configuration • Backup/R estore/Factory Default Setting • Remote A uthorized Management • Real-time Session List • LAN Device Management • Syslog (System/Subscriber/LAN device) •...

  • Page 14: Installation

    2. Installation The followings are instructions for setting up the WSG-403. Refer to the illustration and follow the simple steps below to quickly install your WSG-403. 2.1 Wall-Mounting The WSG-403 can be wall-mounted on a wall by applying the two mounting brackets on screws. Figure 2-1 Wall-Mounting Bracket - Bottom of WSG-403 Please refer to the following instructions for mounting a WSG-403 on a wall or other surface.

  • Page 15: Installation Requirements

    Figure 2-3 Antenna Connectors 2.3 Installation Requirements Before installing the WSG-403, make sure your network meets the following requirements. 2.3.1 System Requirements The WSG-403 requires one of the following types of software: Windows 98 Second Edition/NT/2000/XP Red Hat Linux 7.3 or later version MAC OS X 10.2.4 or later version Any TCP/IP-enabled systems like Mac OS and UNIX (TCP/IP protocol installed) Standard phone line for xDSL modem...

  • Page 16: Your Pc Requirements

    Your password from your ISP PPTP PPTP Server IP Address from your ISP PPTP Local IP address from your ISP. PPTP Local IP subnet mask from your ISP. Your user name from your ISP Your password from your ISP 2.3.3 Your PC Requirements The Static IP settings for the PC Your PC’s fixed IP address Your PC’s subnet mask...

  • Page 17: Poe (Power Over Ethernet) Application

    Figure 2-4 WSG-403 Connection 2.5 POE (Power over Ethernet) Application Figure 2-6 POE Connection Note: WSG-403 supports IEEE802.3af standard. To use the WSG-403’s POE feature, follow the instructions for your specific POE device such as PLANET POE-151, POE injector. Wireless Subscriber Gateway...

  • Page 18: Configuring The Wsg-403

    3. Configuring the WSG-403 3.1 Setting Wizard Step 1: Start your browser, and then enter the factory default IP address 191.168.0.1 in your browser’s location box. Press Enter. Figure 3-1 Web Browser Location Field (Factory Default) Step 2: The WSG-403 configuration tools menu will appear. In the Username and Password field, type the factory default user name admin and password password and click Login.
  • Page 19 Click on reset button to clear the username and password data. Note: This Web agent is best viewed with IE 5.0 or Netscape 6.0 and above browsers. If you would like to change the password please see Step 10. Username and Password can consist of up to 20 alphanumeric characters and are case sensitive. If for some reason your password is lost or you cannot gain access to the WSG-403 Configuration Program, please press the reset button to load the device to manufacturer defaults.
  • Page 20 Figure 3-7 Internet Connection Setting Screen—Static IP Setting Item Default Description IP Address 0.0.0.0 Enter the IP address provided by your ISP. Subnet Mask 0.0.0.0 Enter the subnet mask for the IP address. Gateway IP 0.0.0.0 Enter the Gateway IP Address provided by your ISP. Address Primary DNS Empty...
  • Page 21 Item Default Description Enter the user name provided by your ISP. The user name can consist Username Empty of up to 80 alphanumeric characters and is case sensitive. Enter the user password provided by your ISP. The password can Password Empty consist of up to 80 alphanumeric characters and is case sensitive.
  • Page 22 Figure 3-9 Internet Connection Setting Screen—PPTP Client Setting Item Default Description My IP Address Empty Enter the PPTP local IP address provided by your ISP. Enter the PPTP local Subnet Mask IP address for the IP My Subnet Mask Empty address (My IP Address).
  • Page 23 Item Default Description Enter the connection ID or connection name. The connection Connection ID/Name Empty ID/Name can consist of up to 81 alphanumeric characters and is case sensitive. Connect on Demand and Max Idle Time Connect on Demand Enable You can configure your WSG-403 to cut your connection with your ISP after a specified period of time (Max Idle Time).
  • Page 24 Figure 3-11 E-mail Service Setting Screen Item Default Description Disables or enables email server redirect function. To Email Server Redirect prevent some subscriber’s original Email server may protect by firewall or NAT network. WSG-403 provides an extra Email server parameter to forward the subscriber’s Email. The WSG-403 not only forwards the subscribers’...
  • Page 25 subscriber account inside WSG-403, and the system will authenticate the subscriber login according to the generated account. No― Subscriber can direct access the Internet without enter username and password. Step 7: Billing Profile Setting The function is used to setup a billing profile. A billing profile is a description of how you want to charge your customer. Figure 3-13 Billing Profile Setting Screen Item Default...
  • Page 26 01~03 The index number of billing profile. In Wizard setup, we provide only 3 billing profile. Name 30 minutes/ It is the name of billing profile. The maximum allowed characters 1 hour/ length is 12. 2 hours Usage Time 30 minutes/ The duration of the billing period.
  • Page 27 Figure 3-16 Accounting Setting Screen (Three Buttons Printer) Name Charge Usage Time Figure 3-17 Billing Profile Setting Screen Item Default Description Define each button’s billing profile. Select one billing profile Button A~ C by clicking in the list box. Printout The system allows you to print all your bills.
  • Page 28 Figure 3-18 Web-based Account Generator Setting Screen Item Default Description Billing Profile Define each button’s billing profile. Select one billing profile by clicking (Button A~C) in the list box. Printout Number of copies to The system allows you to print all your bills. Select one print number of copies by clicking in the list box.
  • Page 29 Button A Button B Button C Figure 3-19 Account Generator Panel Click on button to create a new account. Figure 3-20 Example-Account Printout Click “View Account List” to display current account information. Wireless Subscriber Gateway...
  • Page 30 Figure 3-21 Account List Click on refresh button to update the account list page. The field name button in this list show that this list can be sorted in ascending/descending order according to the corresponding field name. Select the check boxes and click ‘Delete’ to delete accounts. Delete all accounts in account list.
  • Page 31 Click the button to displays the account on the screen as it would appear when printed. Figure 3-23 Example- PC-connected printer Printout (Time to Finish) Figure 3-24 Example- PC-connected printer Printout (Accumulation) Wireless Subscriber Gateway...
  • Page 32 Figure 3-25 Example- Account Generator Printer Printout (Time to Finish) Figure 3-26 Example- Account Generator Printer Printout (Accumulation) WSG-403 User Guide...
  • Page 33 Figure 3-27 Example-Post-paid Printout Step 10: System Setting Figure 3-28 System Setting Screen Item Default Description Username admin Enter the user name. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Wireless Subscriber Gateway...

  • Page 34: Advanced Setup

    Password admin Enter the user password. The password can consist of up to 80 alphanumeric characters and is case sensitive. Confirm Empty Enter the password of administrator for confirmation. System date and time YYYY/MM/DD HH:MM:SS Click Get from my Computer button to correct the system date and time.

  • Page 35: System

    System WAN/LAN Server Authentication RADIUS Billing Accounting Credit Card Keypad 10. Customization 11. Pass Through 12. Filtering 13. Share 14. Portal Page 15. Advertisement 16. Walled Garden 17. DDNS 18. LAN Devices 19. Syslog 20. Session Trace 21. Bandwidth 22. Secure Remote 23.
  • Page 36 Figure 3-30 System Setting Screen Figure 3-31 System Setting Screen WSG-403 User Guide...
  • Page 37 Item Default Description The system name can consist of up to 40 System/Host Name Empty alphanumeric characters. The Domain name can consist of up to 80 Domain Name Empty alphanumeric characters. Location Information Empty Enter your location information. Date/Time System The system date of the WSG-403.

  • Page 38: Wan/Lan

    Item Default Description Options: Any and Specify. Administrator can specify 5 Secure administrator IP IP addresses or a range to allow remote control access Addresses from network. This function allows for multiple transmissions to Multicast Pass Through Disable specific recipients at same time. This function allows remote user to ping the WSG-403 Allow remote user to ping the through Internet.
  • Page 39 Figure 3-35 Device IP (LAN IP) Setting Item Default Description IP Address 10.59.1.1 The internal LAN IP address of your Wireless Subscriber Server Gateway. Subnet Mask 255.0.0.0 Enter the subnet mask for the IP address. WAN MAC Address Figure 3-36 WAN MAC Address Setting Item Description IP Address...
  • Page 40 Subnet Mask Enter the subnet mask for the IP address. Gateway IP Gateway Enter the Gateway IP address for the xDSL/Cable connection (provided by your ISP). Primary DNS Server A primary DNS server IP address for the xDSL/Cable connection (provided by your ISP).
  • Page 41 click the radio button. If you want your Internet connection to remain, click the radio button of keep alive. The Max Idle Time maximum value is 65535 minutes. Keep alive and Redial Period Keep alive Disable This option keeps your PPPoE enabled Internet access connected indefinitely, even when it sits idle.

  • Page 42: Server

    Item Default Description PPP MTU Setting 1460 MTU (Maximum Transfer Unit) specifies maximum transmission unit size. TCP MSS Setting 1400 MSS (Maximum Segment Size) specifies maximum segment size. Connection ID/Name Empty Enter the connection ID or connection name. The connection ID/Name consist alphanumeric characters and is case sensitive.
  • Page 43 Enter the HTTP port number. The HTTP port allowed range is 80 or 8010 to 8060. For access the WSG-403 HTTP Port system under NAT, please tab the “http://HTTP Port IP Address: Port Number”. Enter the HTTPS port number. The HTTPS port allowed range is 443 or 4430 to 4440.

  • Page 44: Authentication

    SMTP Port Enter the SMTP port number for mail server. The SMTP port allowed range is 25 or 2500 to 2599. Click Apply button to save the new settings. 3.2.4 Authentication Figure 3-43 Authentication Setting Screen Item Default Description Option: No Authentication, Built-in Authentication or User Authentication Type Agreement.
  • Page 45 WSG-403 provides this Authentication for Wandering Wi-Fi service provider to build up an Internet service with RADIUS server. For the detail setup, please contact Wandering Wi-Fi. (http://wanderingwifi.com) The system provides automatically backup account Current User 1 Min(s) information and unused account to flash ROM. This function allow administrator to adjust the backup time.

  • Page 46: Radius Authentication

    3.2.5 RADIUS Authentication Figure 3-45 Authentication Setting Screen Item Default Description RADIUS Authentication Disable Option: No Authentication or RADIUS Server. Disable (No Authentication) ― Subscriber can direct access the Internet without enter username and password. Enable (RADIUS Authentication) ― WSG-403 provides “RADIUS Authentication” for service provider to build up an Internet service with RADIUS server.

  • Page 47: Billing

    Accumulation for the Internet service. Primary RADIUS Server Server IP Empty Enter the IP address of RADIUS server. Authentication Port 1812 Enter the authentication port number; the authentication port number must match with the RADIUS server setting. The allowed numbers are from 0 to 65535. Accounting Port 1813 Enter the accounting port number;...
  • Page 48 Figure 3-46 Billing Setting Screen Item Default Description Pre-Paid Enable The subscribers can access Internet with pre-defined usage time. If you change billing mode (Pre-paid Post-paid or Post-paid Pre-paid), the system will erase all account and disconnect all on-line users. Figure 3-47 Message Box Item Default...
  • Page 49 dollars. You must be converting all prices on your billing page into American dollars (U.S. dollars). For details, see section 3-2-8 Credit Service. The credit card function only supports the American dollars. Figure 3-48 Credit Service Setting Screen Figure 3-49 Error Dialog Box (Credit Card Service=Enable) Item Default Description...

  • Page 50: Time To Finish

    Accumulation Time to Finish login login logout login logout login Time Bar Time Bar finish logout Usage time= A+B+C Usage time= A Figure 3-50 Accumulation and Time to Finish Item Default Description Post-Paid Disable The subscribers can access Internet without pre-defined usage time.

  • Page 51: Accounting

    Figure 3-51 Pre-paid Procedure Diagram Figure 3-52 Post-paid Procedure Diagram Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Billing setting screen. Figure 3-53 Success Dialog Box 3.2.7 Accounting This function allow service provider to generate the subscriber accounts.
  • Page 52 Figure 3-54 Accounting Setting Screen Figure 3-55 Item Default Description Expiration Un-used account will be 12 hours Enter the number of hours/minutes/days. The field maximum deleted after ~hours value is 30 hours/minutes/days. automatically Accumulation account 3 months Enter the number and select time unit from list box. The field will be deleted after maximum value is 30 month/ days/ hours.
  • Page 53 Number of copies to print 1 The system allows you to print all your bills. Select one number of copies by clicking in the list box. Can be replenished by Enable Click the check box to enable the replenish function. subscriber Figure 3-56 Account Process Diagram Can be replenished by subscriber=Enable...
  • Page 54 Figure 3-58 Account Generator Panel Figure 3-59 Web-based Account Generator Printout (Time to Finish) Figure 3-60 PC-connected Printer Printout (Time to Finish) WSG-403 User Guide...
  • Page 55 Figure 3-61 Web-based Account Generator Printout (Accumulation) Figure 3-62 PC-connected Printer Printout (Accumulation) Note: Before configuring the accounting, you have to setting the billing profile of Web-based account generator panel. Example: If press 7 times Discount Price Plan based on “Button Presses” is disabled. Wireless Subscriber Gateway...
  • Page 56 Figure 3-63 Example 1 Amount: 7 x $2.00= $14.00 Figure 3-64 Account Printout Discount Price Plan based on “Button Presses” is enabled. The Charge by level is disabled. WSG-403 User Guide...
  • Page 57 Figure 3-65 Example 2 Amount: 7 x $ 1 = $ 7.00 Wireless Subscriber Gateway...
  • Page 58 Below is an example of the account printout. Figure 3-66 Account Printout Discount Price Plan based on “Button Presses” is enabled. WSG-403 User Guide...
  • Page 59 Figure 3-67 Example 3 Charge by level is enabled Amount: 2 x $2.00 + 4 x$ 1.50+1x$1= $11.00 Below is an example of the account printout. Wireless Subscriber Gateway...
  • Page 60 Figure 3-68 Account Printout Discount Price Plan based on “Button Presses” Figure 3-69 Discount Price Plan Setting Screen Item Default Description Charge by levels Enable Enables or disables the charge by levels function. Level 1~10 This field displays the level number of charge rate. Conditions When>= The discount condition.

  • Page 61: Credit Card

    Unit Price Enter the amount of charge level. Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Accounting setting screen. Figure 3-70 Success Dialog Box 3.2.8 Credit Card WSG-403 provides three credit card services (Authorize.net, iValidate.net and Secure Pay) that allow service provider to authorize, process, and manage credit transactions directly from Internet.
  • Page 62 Password Empty Enter your Merchant password. Merchant Transaction Empty The Merchant Transaction Key can be obtained directly from “Authorize.net”. The Merchant Transaction Key is similar to a password and is used by the Payment Gateway to authenticate transactions. The maximum character of the Merchant Transaction Key is 50.
  • Page 63 epay/payme nts/process 2.asp Credit Card icons to be VISA Click on check box to display credit card icon on the login displayed on the login page. page Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Accounting setting screen. Figure 3-72 Success Dialog Box Please follow steps below to pay using credit card.
  • Page 64 Figure 3-74 Service & Payment Information Setting Screen (Authorize.net) Item Default Description Payment Information Credit card number Empty Enter your credit card number. Credit card expiration date Empty Enter the credit card expiration date. The allowed format is MMYY. Enter Email Address Empty Enter your email address.
  • Page 65 Figure 3-75 Service & Payment Information Setting Screen (iValidate.net) Item Default Description Payment Information Credit card number Empty Enter your credit card number. Credit card expiration date Empty Enter the credit card expiration date. The allowed format is MMYY. Enter Email Address Empty Enter your email address.

  • Page 66: Keypad

    Figure 3-77 3.2.9 Keypad WSG-403 User Guide...
  • Page 67 Figure 3-78 Keypad Setting Screen Item Default Description Use for Pre-Paid Billing The system provides ten user definable hot keys through the use of the + Key plus the 1 through 0 keys across the top of the keypad. Keypad Hot Key +1~+0 It is the combination hot key for keypad application.
  • Page 68 Figure 3-81 Step 4: Subscriber can use this account to access Internet now. Use for Post-Paid Billing Step 1: Click the Billing in the Advanced Setup menu, select enable Post-paid, click Apply. Figure 3-82 Billing Setting Screen Step 2: Click the Keypad in Advanced Setup Menu, Define the billing plan of post-paid, click Apply. WSG-403 User Guide...
  • Page 69 Figure 3-83 Keypad’s Hot Key Setting Screen Step 3: You can use keypad to create subscriber accounts now. Press Enter, a new subscriber account is generated, and the account information should be printed. This account information is including serial number, username, password and account create time. Figure 3-84 Step 4: When subscriber wants to terminate the Internet service, press *, serial number and then press Enter, a bill should be printed.
  • Page 70 Figure 3-85 Account Generator Printer Enter the date (MonthDate) PS/2 Keypad igure 3-86 Keypad’s Hot Key List Daily Account Report Printout Press ABCAA Billing Profile Purchase Unit Figure 3-87 Daily Account Monthly Account Report Printout WSG-403 User Guide...
  • Page 71 Press ABCBB Billing Profile Purchase Unit Figure 3-88 Monthly Account System Status Report Printout Press ABCCC Figure 3-89 System Status Report Printout Network Report Printout Wireless Subscriber Gateway...

  • Page 72: Customization

    Press ABCAB Figure 3-90 Network Report Printout 3.2.10 Customization Login Page The WSG-403 provides three different login page formats, including standard, redirect, advanced and frame format. Standard For some service providers, they may hope to have a customize subscriber’s login page to the users. This function helps them to realize the ideal.
  • Page 73 Internet allowed characters length is 80. Service Footnote Disable Allow the administrator to input the footnote such like “Pleas Contact to our Customer Service Center, EXT 141”. The maximum character of the footnote is 240. Item Default Description Copyright Enable The copyright is allowed the administrator to input a paragraph in the subscriber login page for copyright information.
  • Page 74 Figure 3-95 Redirect Login Page Code Screen Advanced This function allow user to design login page of WSG-403. Figure 3-96 Advanced Login Page Setting Screen Item Default Description Welcome Slogan Welcome The maximum allowed characters length is 80. Page Background None The page background can be none or specified color.
  • Page 75 character of the comment is 80. Figure 3-97 Color Gird Frame If “Frame” is selected the subscriber login page will be separate into Top Frame and Bottom Frame. Bottom Frame is a default format for username and password input, Top Frame is allowed to be specified a URL to link. www.caesarpark.com Figure 3-98 Frame Login Page Setting Screen Item...
  • Page 76 Figure 3-100 Logo Setting Screen Item Default Description File Path Empty Enter the file pathname of the logo file in the File Path field. Click Apply button to save the logo file to system. Click Delete button to delete the logo file. Figure 3-101 Logo Setting Screen Figure 3-102 Login Page WSG-403 User Guide...
  • Page 77 Information Window This function allow service provider can decide whether they want an “Information Window” pop-up on subscriber PC when authenticate successful or not and specified text of information window. Subscriber can type “http://1.1.1.1/info” to open the information window again or enter “http://1.1.1.1/logout”...
  • Page 78 Figure 3-105 Information Window Billing Type=Time to Finish Can be replenished by subscriber=Disable Figure 3-106 Information Window Billing Type=Time to Finish Can be replenished by subscriber=Enable Figure 3-107 Information Window Billing Type=Accumulation Can be replenished by subscriber=Disable Figure 3-108 Information Window Billing Type=Accumulation Can be replenished by subscriber=Enable WSG-403 User Guide...
  • Page 79 Figure 3-109 Information Window Super Subscriber Account (Default username=”super” & password=”super”) Figure 3-110 Logout Successfully Dialog Box Billing Type=Accumulation Figure 3-111 Alarm Dialog Box1 Account Printout This function allow service provider to specified text of account printout. Wireless Subscriber Gateway...
  • Page 80 Figure 3-112 Account Printout Customization Setting Screen Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Account Printout Customization setting screen. Figure 3-113 Success Dialog Box WSG-403 User Guide...
  • Page 81 Figure 3-114 PC-connected Printer Printout Figure 3-115 Account Generator Printer Printout Wireless Subscriber Gateway...
  • Page 82 Figure 3-116 Account Generator Printer Printout Credit Card Standard Login Page This function allow service provider to customize the additional credit card message for the standard login page. Figure 3-117 Credit Customization Setting Screen Figure 3-118 Standard Login Page (Enable Credit Card Service=enable) WSG-403 User Guide...
  • Page 83 Figure 3-119 Billing Setting Screen Service Selection Page This function allow service provider to customize the additional credit card message for the standard login page. Figure 3-120 Service Selection Page Setting Screen (Authorize.net) Wireless Subscriber Gateway...
  • Page 84 Figure 3-121 Service Selection Page Setting Screen (iValidate.net) Figure 3-122 Service Selection Page Setting Screen (Secure Pay) WSG-403 User Guide...
  • Page 85 Figure 3-123 Service Selection Page (Authorize.net) Figure 3-124 Service Selection Page (iValidate.net) Wireless Subscriber Gateway...
  • Page 86 Figure 3-125 Service Selection Page (SecurePay) Successful Page Figure 3-126 Successful Page Setting Screen WSG-403 User Guide...
  • Page 87 Figure 3-127 Example-Successful Page Fail Page This function allow service provider to customize the message for the fail page. Figure 3-128 Fail Page Setting Screen Click Apply button to save the new settings. Figure 3-129 Fail Page Click Apply button, the success dialog box appears. Click on Back to return to Credit Card Customization setting screen. Wireless Subscriber Gateway...

  • Page 88: Pass Through

    Figure 3-130 Success Dialog Box User Agreement Page This function allow user to design user agreement page of Internet Subscriber Server. Figure 3-131 User Agreement Page Setting Screen Figure 3-132 User Agreement Page 3.2.11 Pass Through This function allow administrator to set some special devices pass through the WSG-403 system. Because some network devices might be constructed under the WSG-403.
  • Page 89 Figure 3-133 Pass through Setting Screen Item Default Description Pass Through Disable Enables or disables the pass through function. Destination URL/IP Address Pass Through URL or Website Empty Enter the URL Page; please use this format such like “http://www.yahoo.com”. The maximum character of the URL Page is 50.

  • Page 90: Filtering

    Pass Through List Display the pass through Information of WSG-403. The index number of pass through address. Active Disable Click on check box, active or inactive the pass through address. Address List Display the pass through address(s). Type Display the type of pass through address. Delete Disable Select the check boxes and click ‘Delete’...

  • Page 91: 13 Share

    Figure 3-135 Error Dialog Box Item Default Description Restrict Destination URL or Website Empty Enter the URL Page of you wants to filter; please use this format such like “http://www.yahoo.com”. The maximum character of the URL Page is 50. Start IP Address Empty Enter the start IP address of you wants to filter.

  • Page 92: Portal Page

    Figure 3-136 Share Device Setting Screen Item Default Description Share LAN resource Disable Enables or disables share LAN resource function. Resource Name Empty Enter the device name. The maximum character of the resource name is 30. Resource IP Address Empty Enter the IP address of device in the format “xxx.xxx.xxx.xxx”. Resource MAC Address Empty Enter the MAC address of device.

  • Page 93: Advertisement

    Figure 3-137 Portal Page Setting Screen Item Default Description URL Link Empty Enter the URL Link page. The input format can be “http://www.yahoo.com”. The maximum character of the URL Link is 200 Click Apply button to save the new settings. Click Apply button, the success dialog box appears.

  • Page 94: Walled Garden

    From 1 to 10 —Display the advertisement page in the order as setting. URL Link Empty This function allows the administrator to input ten different websites in the 1~10 table for advertisement. And these 10 websites will display to the subscribers at random when the subscribers login in the WSG-403 system.

  • Page 95: Ddns

    Figure 3-142 Login Page Item Description Link 1~10 Name The name is allowed user to set the prompt string in user customize login page. The maximum allowed characters length is 80. URL 1~10 The input format can be “http://www.yahoo.com”. The maximum character of the Link# is 200.
  • Page 96 Figure 3-144 DDNS Setting Screen Item Default Description Force to update every 1 day Enter a number in the field to set the force update interval ~day(s) when WAN IP (in days). address keeps no change 01~03 The index number of a DDNS account. Active Disable Click on check box, active or inactive the DDNS record.

  • Page 97: Lan Devices

    register a dynamic domain at one of the dynamic domain service providers’ list box. Registered Host Name Empty Enter the host name of DDNS server. The maximum character of the registered host name is 100. Login Name Empty Enter the user name of DDNS server. Password Empty Enter the user password of DDNS server.

  • Page 98: Syslog

    Item Default Description Polling Interval 5 Min. The default value is 5 minutes. The Polling Interval valid range is 1 to 1440. Device Name Empty The LAN device name. The maximum character of the device name is 20. Virtual Port The virtual port number valid range is 60001 to 60050 or 5900 to 5910.
  • Page 99 Server IP Address Empty Enter syslog server’s IP address. The WSG-403 will send all of its logs to the specified syslog server. Server MAC Address Empty Enter the syslog server’s MAC address. The WSG-403 will send all of its logs to the specified syslog server. Item Default Description...
  • Page 100 Figure 3-149 Log Settings Screen Item Interval Time Description Syslog Disable Click on check box, send log information to your syslog server. Email Disable Click on check box, send log information to your e-mail address. Item Interval Time Description System Syslog Information 60 minutes The log included system information would be sent according...
  • Page 101 System Manager When system A log will be sent if system manager (Administrator, Activity Information manager login Supervisor or Account Manager) login to or logout from the or logout device. Format: (Id, Mac Address) (System Account Activity Information, Username, User IP, Status) Username: Administrator | Supervisor | Accounting Operator Status: Login | Logout | Idle Time Out Subscriber...
  • Page 102 time, Usage Time, Time Left, RxData count, TxData count) Type: TimeToFinish | Accumulation | PostPaid | Super Event: Finished | Replenished | Logout | Idle-Timeout | Account Expired | Deleted If the type of Subscriber Trace is Super, the Username will be “********”, and S/N will be “******”.

  • Page 103: Session Trace

    Figure 3-150 Success Dialog Box 3.2.20 Session Trace Session Trace is an intelligent function to help service provider to trace every user’s access behavior. When “session trace” is enable , the system will collect information such like destination IP, destination port, source IP, source MAC, source port by every user and send the collected information in text format file to specified TFTP server.

  • Page 104: Secure Remote

    Figure 3-152 Bandwidth Setting Screen Item Default Description Bandwidth Disable Enables or disables Bandwidth Management. Maximum Upstream 64Kbps Specify the amount of upstream bandwidth. Maximum Downstream 128Kbps Specify the amount of downstream bandwidth. 3.2.22 Secure Remote This feature allows you to create a secure connection to a remote site or back end system with VPN PPTP Client. If “Secure Remote” is enabled, the RADIUS packet/ syslog will be transferred to this secure connection.

  • Page 105: Snmp

    sensitive. Password Empty Enter the user password provided by your ISP. The password can consist of up to 80 alphanumeric characters and is case sensitive. Click on Start/Stop connection button to start/stop PPTP connection. Click on refresh button to update the status. VPN Tunnel Display the status.

  • Page 106: Wireless

    Item Default Description NMS Address The address of the NMS. The default settings for the NMS Networking are “ANY”. Privileges Read/Write Choose “Read”, “Write”, “Trap Recipients” and “All” for different privileges. The default setting of the entry 2 is “write” and others are “read”.
  • Page 107 Item Default Description General Settings The ESSID is the unique name that is shared among all ESSID Wireless points in a wireless network. It is case sensitive and must not exceed 32 characters. Channel Select the channel ID for wireless connection. Select disable to allow wireless station to communicate with Security Disable...
  • Page 108 Item Default Description 802.1x Disable Enables or disables the 802.1x function. Encryption 64 bit The WSG-403 supports 64-bit or 128 bit 802.1x encryption. Re-key Time 86400 Seconds Enter a number in the field to set the force re-keying interval. Enter the RADIUS server IP address or domain name. The Server IP Empty maximum allowed characters length is 15.

  • Page 109: Account Generator

    Click Apply button to save the new settings. Click Apply button, the restart dialog box appears. Click on Apply to restart the system. Figure 3-156 Restart Dialog Box This operation will load the default manufacturer configuration to the system. All this page (Wireless) configuration setup will be replaced by default settings.

  • Page 110: System Status

    Figure 3-158 Application 3.3 System Status Display WSG-403 system basic status, including, System Account List Account Log Current User DHCP Clients Session List LAN Devices WSG-403 User Guide...

  • Page 111: System

    Figure 3-159 System Status Item Screen 3.3.1 System The System Information Menu displays current system basic information including the service connection message, host name, LAN, WAN, DHCP Configuration, DNS, E-mail Redirection, SSL Certificate, network traffic Information and the system firmware version number.

  • Page 112: Account List

    Figure 3-161 System Status Screen 3.3.2 Account List You can display a list of all the account information on this device. This table includes the username, password, usage time, time created, login time, expiration time and status. Figure 3-162 Account List Click on refresh button to update the account list page.

  • Page 113: Account Log

    Note: This page will refresh automatically every 5 minutes. 3.3.3 Account Log The account log shows the accounts’ log information. Figure 3-163 Account Log This allow you to export the account logs to a text file format. (export.log) Click on Clear Log to remove all account log entries. Click on refresh button to update the account log page.

  • Page 114: Dhcp Clients

    Figure 3-166 Current User List (No Authentication) Click on refresh button to update the current user list page. Click the column button to sort the column in ascending/descending order. Select the check boxes and click ‘Disconnect’ to disconnect accounts. Disconnect all accounts in current user list. 3.3.5 DHCP Clients The DHCP client table shows the current DHCP users on the LAN.

  • Page 115: System Tools

    Click Figure 3-169 LAN Devices Status Screen Figure 3-170 Example- Ethernet Switch Management Screen 3.4 System Tools This allows service provider or administrator to process Firmware upgrade, change password and backup or restore configuration. Configuration Firmware Boot Code System Account SSL Certificate Ping Command Restart...

  • Page 116: Firmware Upgrade

    Figure 3-172 Configuration Setting Screen Item Default Description Backup Click it to save the system configuration to your computer. (export.cfg) Remote TFTP Server IP Empty Enter the IP address of TFTP Server. Address File Name Empty Enter the file name in the File Name field. Restore Click it to restore your system configuration.
  • Page 117 Figure 3-173 Manual Firmware Upgrade Setting Screen Item Default Description This allow administrator to upgrade the firmware via HTTP. Local PC File Path Empty Enter the file name and location in the Local PC File Path field. This allows administrator use TFTP server to upgrade firmware. Remote TFTP Server IP Empty Enter the IP address of TFTP Server.

  • Page 118: Boot Code

    3.4.3 Boot Code Figure 3-176 Boot Code Upgrade Setting Screen 3.4.4 System Account Use the System Account screen to change the system accounts. Figure 3-177 System Account Setting Screen Item Description Username The username can consist of up to 20 alphanumeric characters and is sensitive. Password The password can consist of up to 20 alphanumeric characters and is sensitive.
  • Page 119 Figure 3-178 Web Browser Location Field (Factory Default) Step 2: The WSG-403 configuration main menu will appear. Enter admin (default) as the Username and admin (default) as the password and click Login. If you are first time setting the system, the wizard setup screen will appear. Username: admin Password:...
  • Page 120 Username: account Password: account Figure 3-182 Web-Based Accounting Manager Login Screen Step 3: After a valid user name and password have been provided, the account Generator Panel homepage will appear. Figure 3-183 Account Generator Panel Supervisor Account Step 1: Start your Web browser and enter the factory default IP address 10.59.1.1 in your browser’s location box. Press Enter. Figure 3-184 Web Browser Location Field (Factory Default) Step 2: The WSG-403 configuration main menu will appear.

  • Page 121: Ssl Certificate

    Figure 3-186 System Status Screen Super Subscriber Account Start your Web Browser; a subscriber login page will appear. Enter super as the Username and super as the password and click Enter, you can use Internet now. Username: super Password: super Figure 3-187 Subscriber Login Page 3.4.5 SSL Certificate The function allows you to download the registered CA certificate into the WSG-403.

  • Page 122: Restart

    Figure 3-189 Ping Command Screen Item Description IP or URL Enter the IP address or the URL link. 3.4.7 Restart If your WSG-403 is not operating correctly, you can choose this option to display the restart WSG-403 screen. Clicking the apply button restart the WSG-403, with all of your settings remaining intact.

  • Page 123: Appendix A Signal Connection Arrangements

    Appendix A Signal Connection Arrangements RJ-45 Ethernet Port The WSG-403 RJ-45 Ethernet port can connect to any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable to connect the networking device to the RJ-45 Ethernet port.

  • Page 124: Appendix B Regulations/Emi Compliance

    Appendix B Regulations/EMI Compliance FCC Regulatory Statement Part 15-Class B compliant device This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including that which may cause undesired operation. This equipment has been test and found to comply with the limits for a computing device, pursuant to Part 15 of the FCC Rules.

  • Page 125: Limited Warranty

    LIMITED WARRANTY WSG-403 What the warranty covers: We warrant its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, we will at its sole option repair or replace the product with a like product with a like product.
