Fiat 1998 Marea Service Manual page 524

Electrical equipment
Location of components on the car
55.

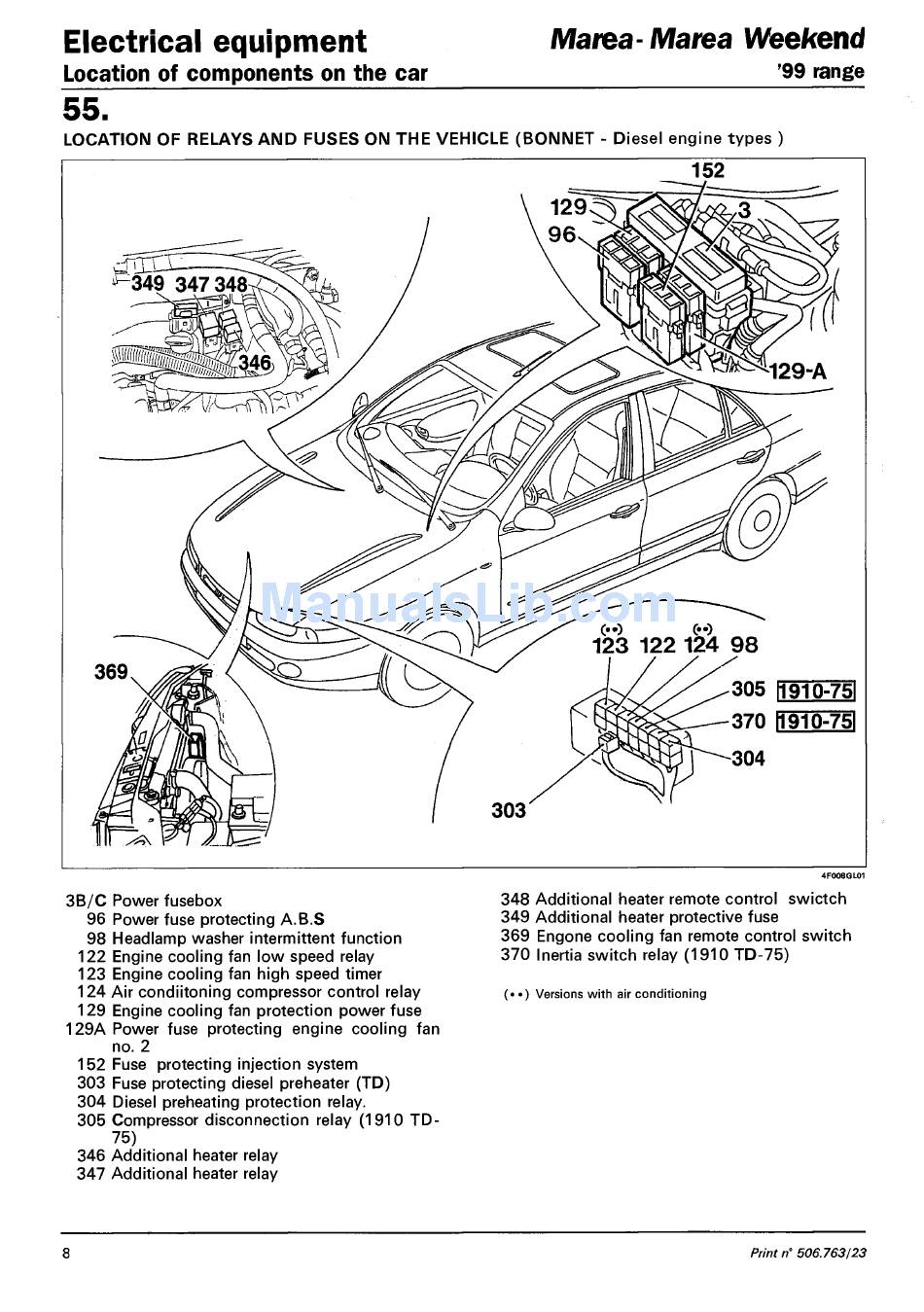

LOCATION OF RELAYS AND FUSES ON THE VEHICLE (BONNET - Diesel engine types )
3B/C Power fusebox
96 Power fuse protecting A.B.S
98 Headlamp washer intermittent function
122 Engine cooling fan low speed relay
123 Engine cooling fan high speed timer
124 Air condiitoning compressor control relay
129 Engine cooling fan protection power fuse
129A Power fuse protecting engine cooling fan
no. 2
152 Fuse protecting injection system
303 Fuse protecting diesel preheater (TD)
304 Diesel preheating protection relay.
305 Compressor disconnection relay (1910 TD-
75)
346 Additional heater relay
347 Additional heater relay
8
Marea- Marea Weekend
348 Additional heater remote control swictch
349 Additional heater protective fuse
369 Engone cooling fan remote control switch
370 Inertia switch relay (1910 TD-75)
( • • ) Versions with air conditioning
'99 range
152
305 1910-751
370 11910-751
-304
Print n° 506.763/23
