CDM-Qx Satellite Modem
Front Panel Operation

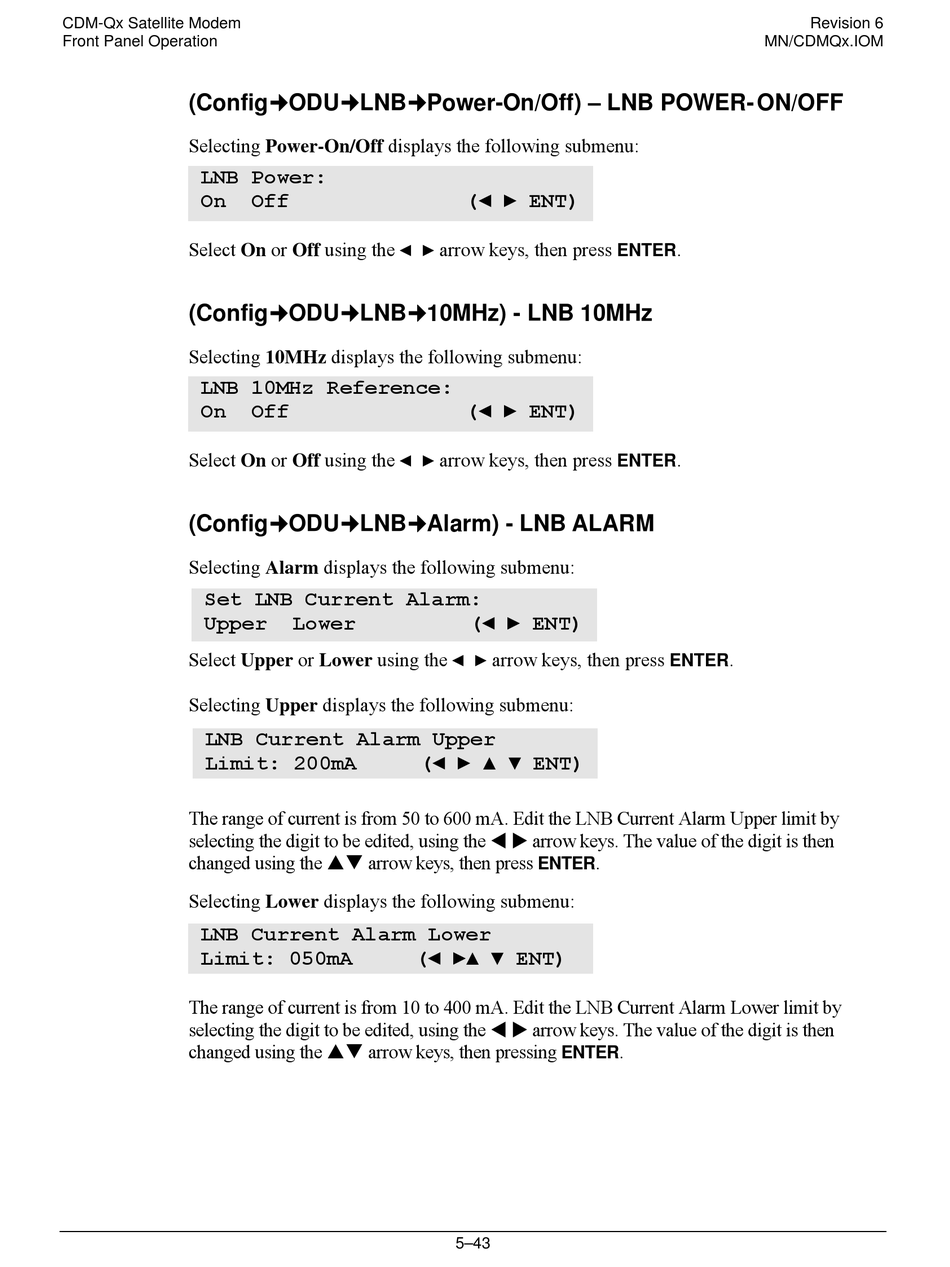

(Config%ODU%LNB%Power-On/Off) – LNB POWER- ON/OFF
Selecting Power-On/Off displays the following submenu:
LNB Power:
On
Select On or Off using the ◄ ► arrow keys, then press
(Config%ODU%LNB%10MHz) - LNB 10MHz
Selecting 10MHz displays the following submenu:
LNB 10MHz Reference:
On
Select On or Off using the ◄ ► arrow keys, then press
(Config%ODU%LNB%Alarm) - LNB ALARM
Selecting Alarm displays the following submenu:
Set LNB Current Alarm:
Upper
Select Upper or Lower using the ◄ ► arrow keys, then press
Selecting Upper displays the following submenu:
LNB Current Alarm Upper
Limit: 200mA
The range of current is from 50 to 600 mA. Edit the LNB Current Alarm Upper limit by
selecting the digit to be edited, using the ! " arrow keys. The value of the digit is then
changed using the #$ arrow keys, then press
Selecting Lower displays the following submenu:
LNB Current Alarm Lower
Limit: 050mA
The range of current is from 10 to 400 mA. Edit the LNB Current Alarm Lower limit by
selecting the digit to be edited, using the ! " arrow keys. The value of the digit is then
changed using the #$ arrow keys, then pressing
Off
Off
Lower
(◄ ► ▲ ▼ ENT)
(◄ ►▲ ▼ ENT)
(◄ ► ENT)
ENTER
(◄ ► ENT)
ENTER
(◄ ► ENT)
.
ENTER
.
ENTER
5–43
Revision 6
MN/CDMQx.IOM
.
.
.
ENTER
