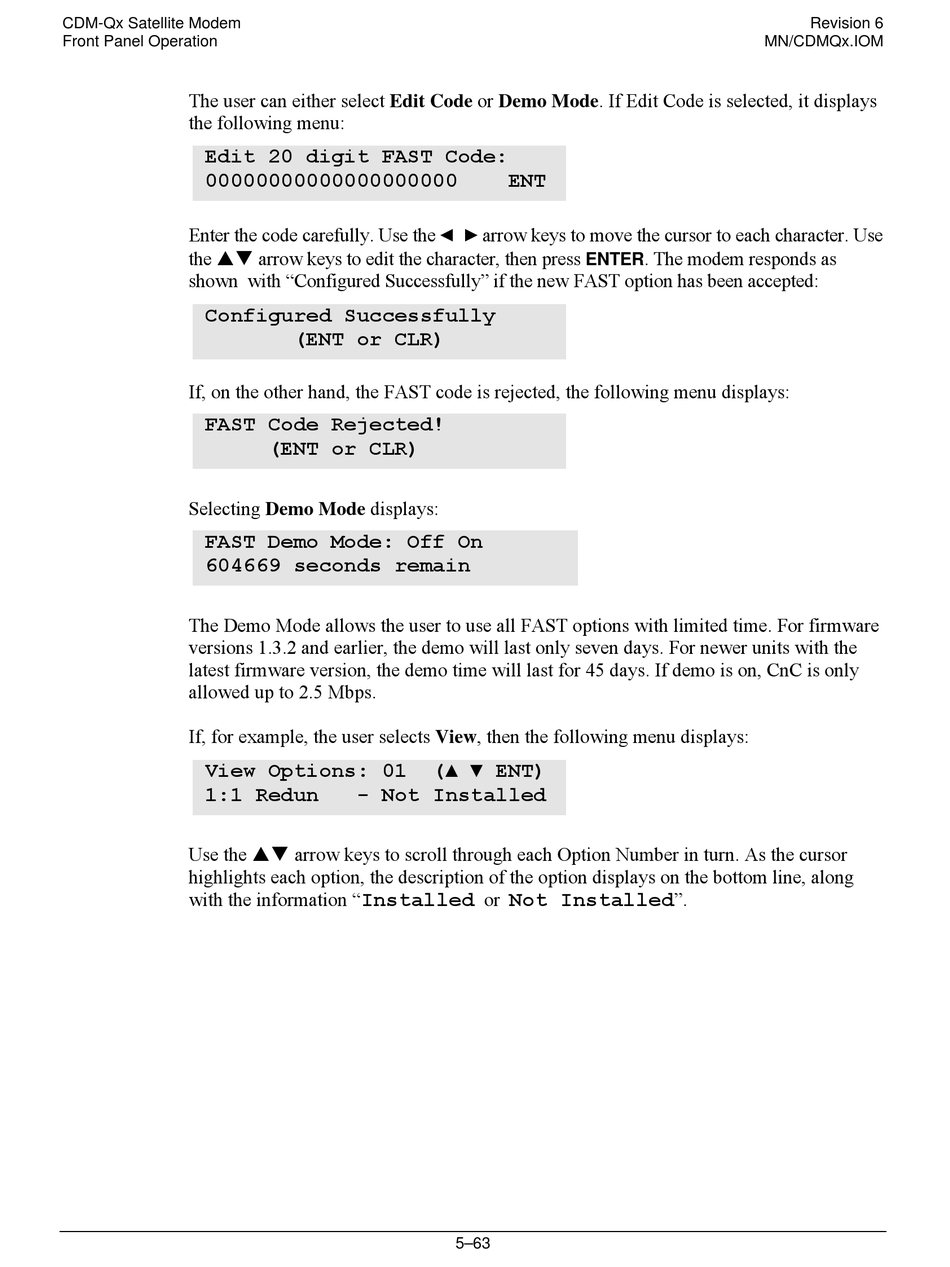

CDM-Qx Satellite Modem
Front Panel Operation
The user can either select Edit Code or Demo Mode. If Edit Code is selected, it displays
the following menu:
Edit 20 digit FAST Code:
00000000000000000000
Enter the code carefully. Use the
the #$ arrow keys to edit the character, then press
shown with "Configured Successfully" if the new FAST option has been accepted:
Configured Successfully
If, on the other hand, the FAST code is rejected, the following menu displays:
FAST Code Rejected!
Selecting Demo Mode displays:
FAST Demo Mode: Off On
604669 seconds remain
The Demo Mode allows the user to use all FAST options with limited time. For firmware
versions 1.3.2 and earlier, the demo will last only seven days. For newer units with the
latest firmware version, the demo time will last for 45 days. If demo is on, CnC is only
allowed up to 2.5 Mbps.
If, for example, the user selects View, then the following menu displays:
View Options: 01
1:1 Redun
Use the #$ arrow keys to scroll through each Option Number in turn. As the cursor
highlights each option, the description of the option displays on the bottom line, along
with the information "
◄ ►
(ENT or CLR)
(ENT or CLR)
(▲ ▼ ENT)
- Not Installed
Installed
ENT
arrow keys to move the cursor to each character. Use
ENTER
or
Not Installed
5–63
Revision 6
MN/CDMQx.IOM
. The modem responds as
".
