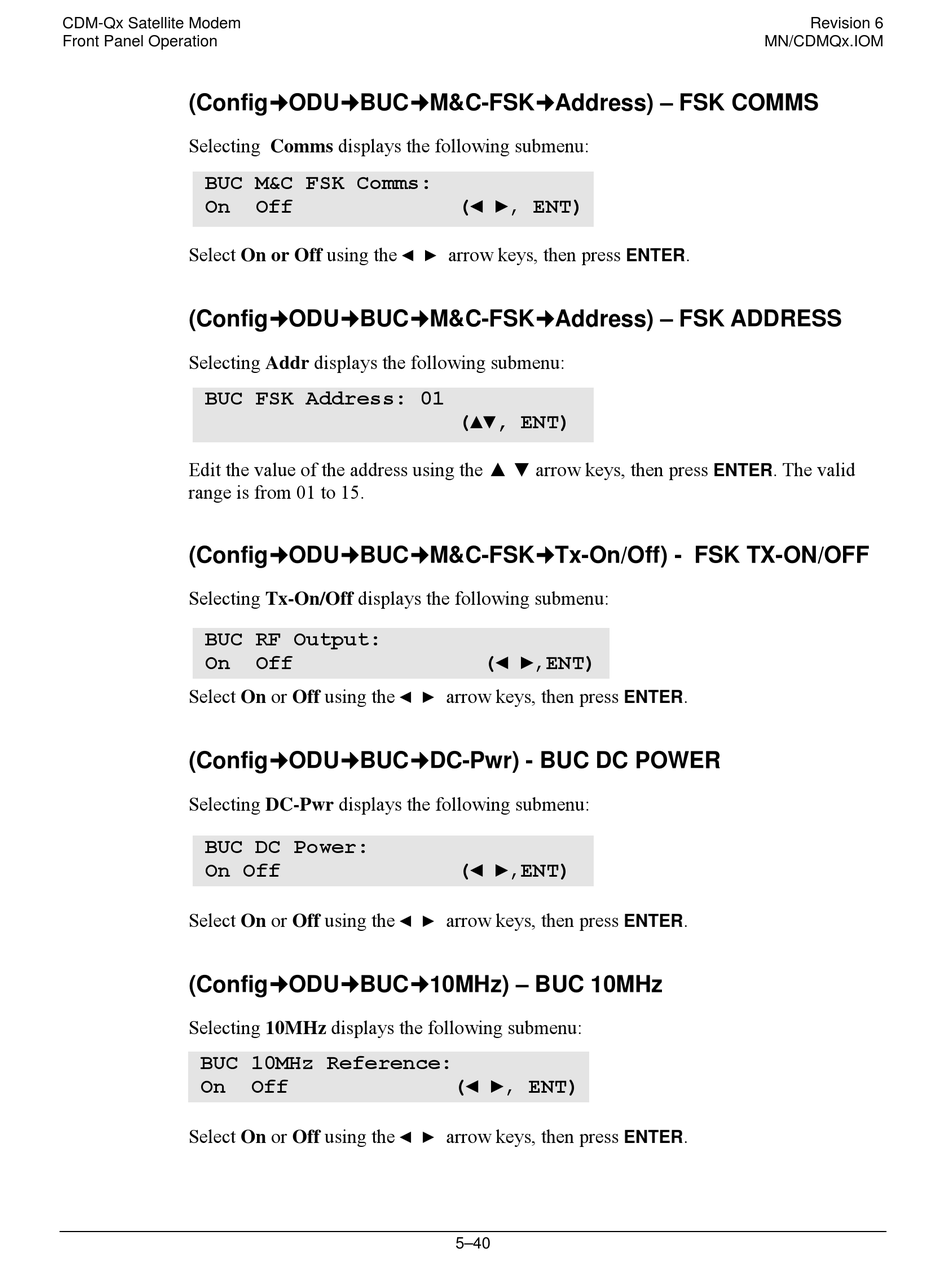

Front Panel Operation
(Config%ODU%BUC%M&C-FSK%Address) – FSK COMMS
Selecting Comms displays the following submenu:
BUC M&C FSK Comms:
On
Select On or Off using the ◄ ► arrow keys, then press
(Config%ODU%BUC%M&C-FSK%Address) – FSK ADDRESS
Selecting Addr displays the following submenu:
BUC FSK Address: 01
Edit the value of the address using the ▲ ▼ arrow keys, then press
range is from 01 to 15.
(Config%ODU%BUC%M&C-FSK%Tx-On/Off) - FSK TX-ON/OFF
Selecting Tx-On/Off displays the following submenu:
BUC RF Output:
On
Select On or Off using the ◄ ► arrow keys, then press
(Config%ODU%BUC%DC-Pwr) - BUC DC POWER
Selecting DC-Pwr displays the following submenu:
BUC DC Power:
On Off
Select On or Off using the ◄ ► arrow keys, then press
(Config%ODU%BUC%10MHz) – BUC 10MHz
Selecting 10MHz displays the following submenu:
BUC 10MHz Reference:
On
Select On or Off using the ◄ ► arrow keys, then press
Off
Off
Off
(◄ ►, ENT)
ENTER
(▲▼, ENT)
(◄ ►,ENT)
ENTER
(◄ ►,ENT)
ENTER
(◄ ►, ENT)
ENTER
5–40
Revision 6
MN/CDMQx.IOM
.
. The valid
ENTER
.
.
.
