3. Remove two screws and then remove two grounding plates.
4. Remove the one stopper ring and then detach the scanner shaft.
* Detach the shaft taking care to tilt it as little as possible.
Grounding plates
Screw
5. Remove the flexible flat cable from the ISU
board's connector.
6. Remove the scanner belt from the belt hook
of scanner unit.
7. Remove the ISU unit from the scanner shaft.
* Remove the ISU unit taking care not to lose
the M4 nut located in the ISU unit.
Screw

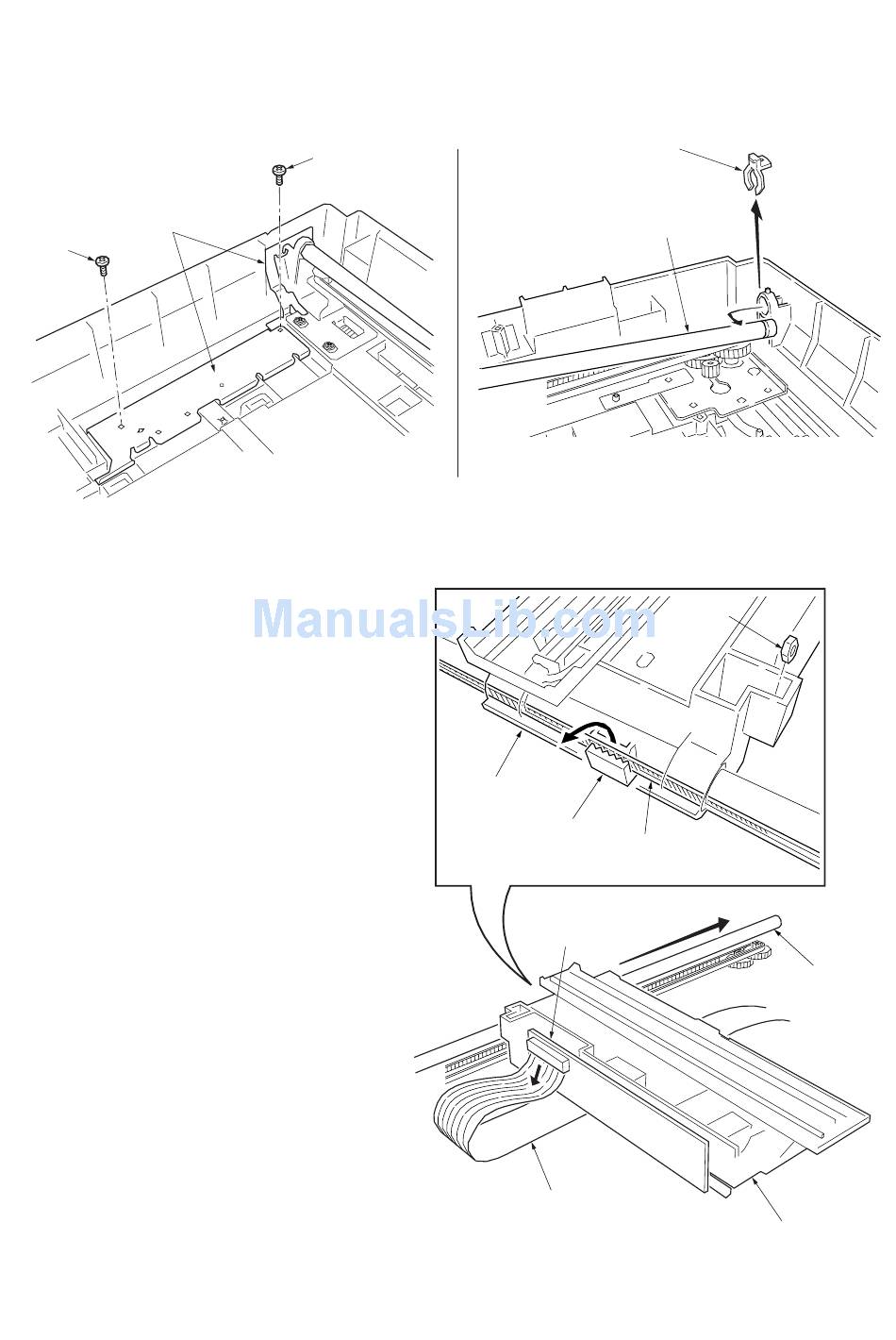

Figure 1-6-37 Detaching the scanner shaft
Scanner unit
Stopper ring
Scanner shaft
M4 nut
Belt hook
Scanner belt
ISU board
Flexible flat cable
Figure 1-6-38 Removing the ISU unit
2DC
Scanner shaft
ISU unit
1-6-33
