535 MB SCSI Hard Drives Jumper Settings

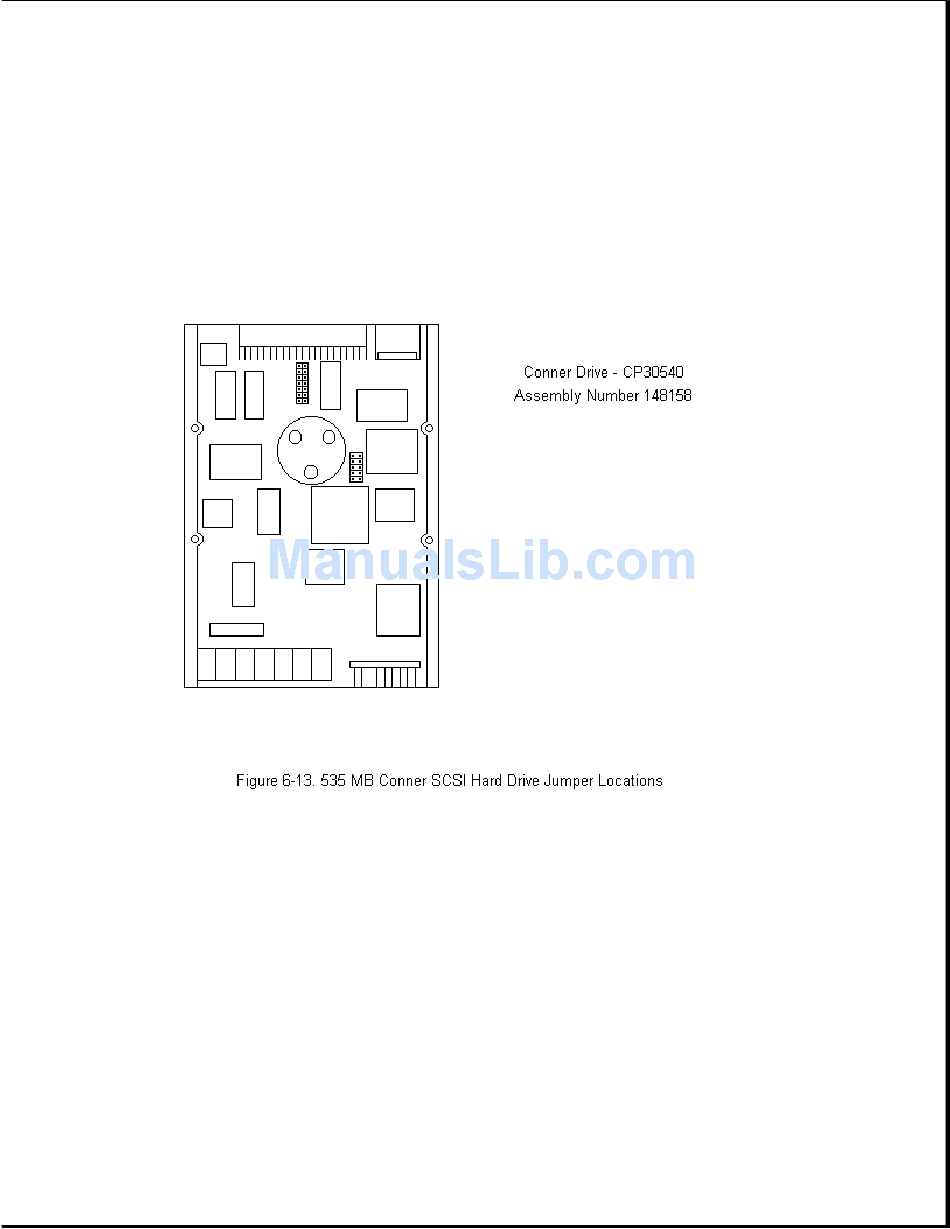

The jumper locations for the three 535 MB SCSI hard drives are shown in
Figures 6-13 through 6-15. Jumper settings are given in Tables 6-12
through 6-14.
Table 6-12. 535 MB Conner SCSI-2 Hard Drive Jumper Options (Shipped
configuration below)
===========================================================================
Jumper Option
===========================================================================
E1 PARK
E2 PARK
E3 OFF
E4 ON
E5 OFF
E6 OFF
===========================================================================
Description
SCSI Address, Bit 0
SCSI Address, Bit 1
SCSI Address, Bit 2
Disable Spin at Power-On
Enable term, (No termination on this drive)
Enable Term Power
