7526
High-capacity input tray (HCIT) option removals
HCIT media tray assembly removal
Note: When removing the high-capacity input tray (HCIT) media tray assembly, it is not necessary to remove it
from the base machine and the caster base.

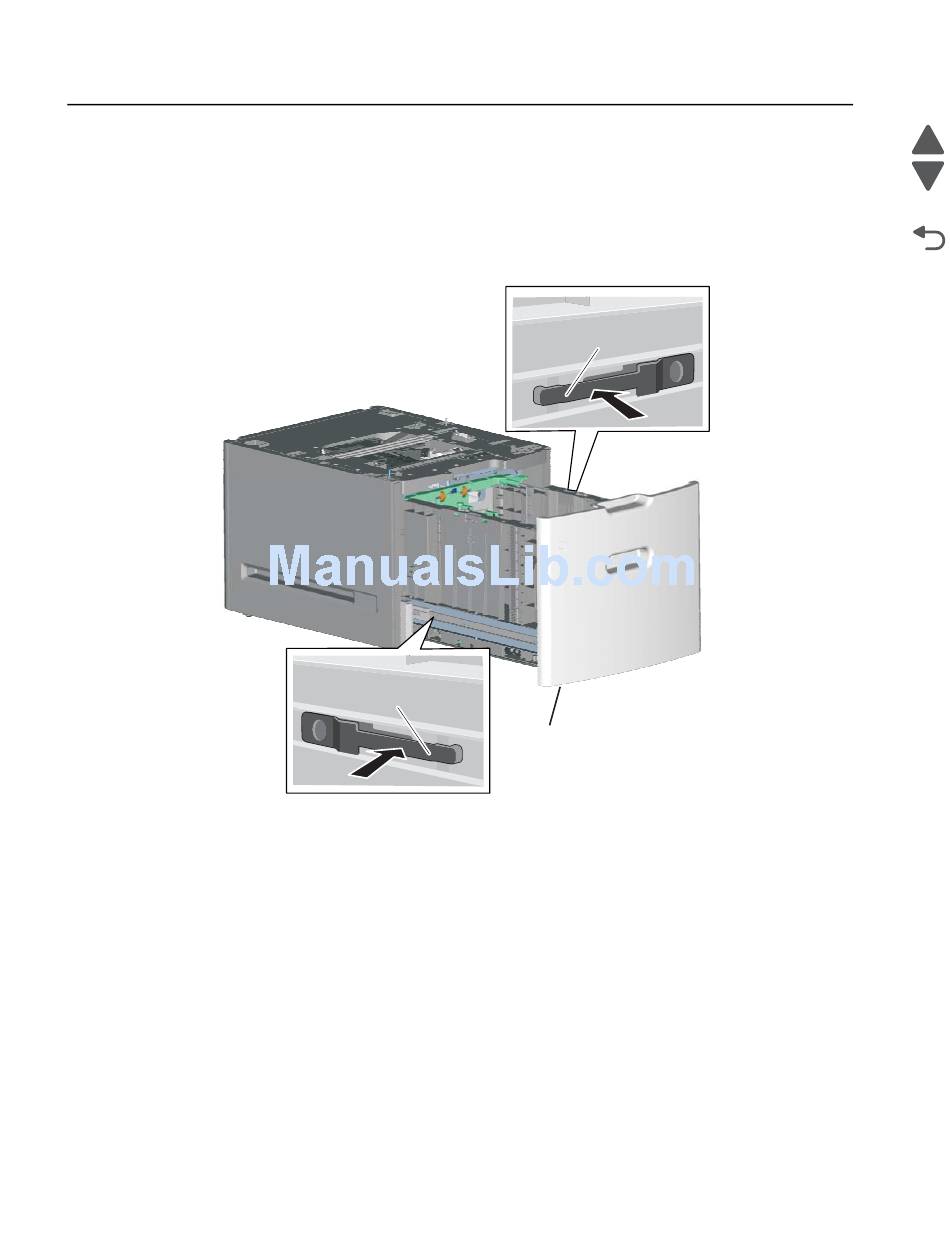

Open the HCIT media tray assembly (A) until it reaches a stop.
1.
Press the latches (B) on the left and right side of the HCIT tray slides.
2.
3.
Slide the HCIT media tray assembly out of the drawer.
Service Manual
4-274
B
A
B
