Lexmark X746de Service Manual page 506

7526

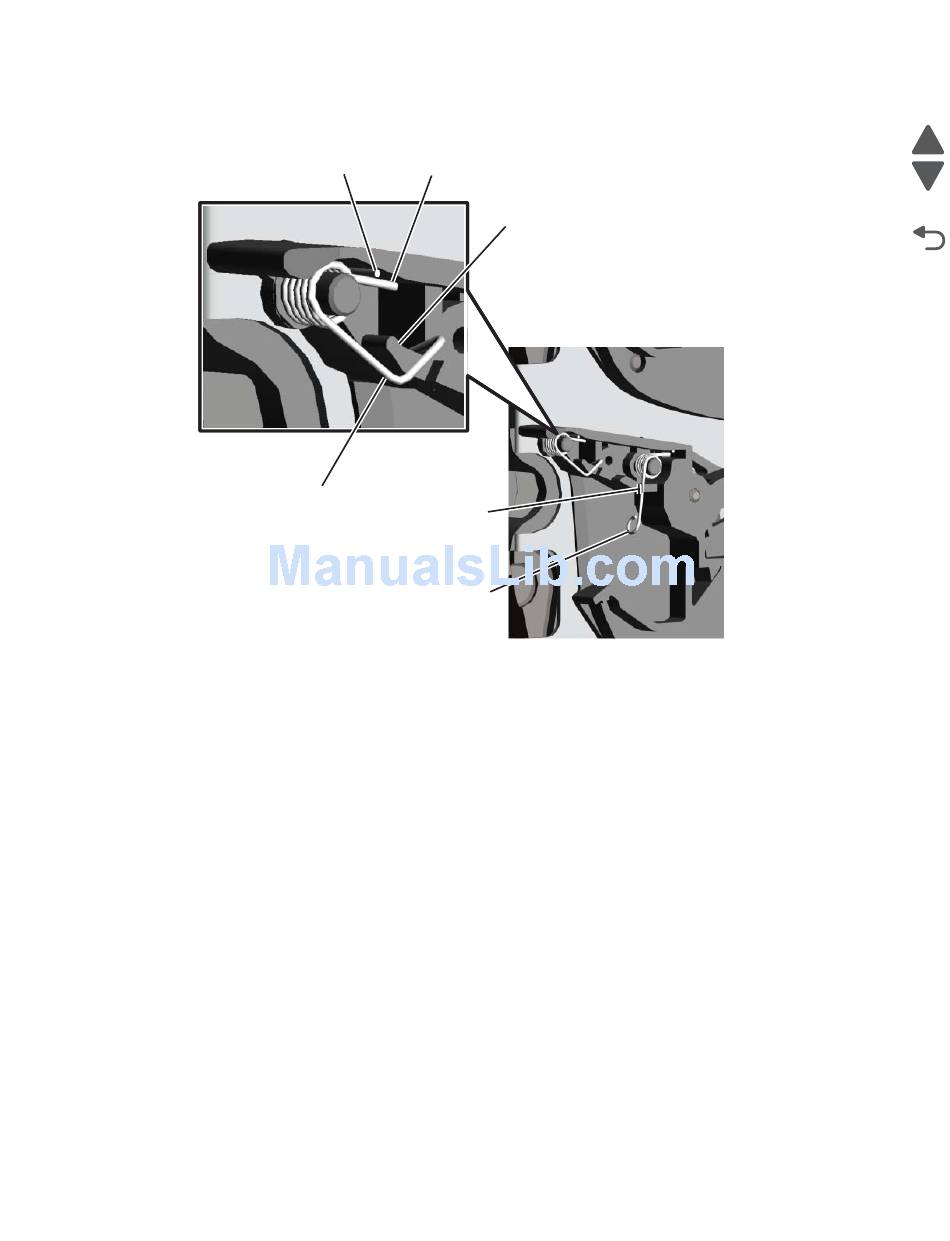

Install the contact springs. When installing each contact spring, make sure the top half (H) of the spring is
9.
under the straight spring (J). This is typical for both types of springs. Also make sure that the bottom half
(K,L) of both springs are compressed and locked by the appropriate locking tabs (M,N).
Service Manual
4-212
K J
L
N
H
M
